DONGRU DR3000 dual-use Coating Thickness Gauge 0~3000μm

SE
DONGRU DR3000 dual-use Coating Thickness Gauge adopts magnetic Induction and eddy Current thickness measurement principle, Measurement range 0-3000μm, error range +/- (3% H + 2μm), DR3000 coating Thickness testing instrument minimum measurement surface 18 * 15mm, minimum curvature convex 5mm; concave 25mm, the thinnest substrate 0.4mm.
$257.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT OI
Similar products

DongRu DR3000 Dual-use Coating Thickness GaugeSPEC

DongRu DR3000 Dual-use Coating Thickness GaugeDetails

DongRu DR3000 Dual-use Coating Thickness GaugePacking list

SKU
NB026885
Measurement principle
Magnetic Induction + eddy Current
Measurement range
0 ~ 3000μ m
margin of error
±3%
Resolution
0.1mm | 1mm
Minimum measurement surface
18*15mm
Minimum radius of curvature
Convex 5mm; Concave 25mm
thinnest matrix
0.4mm
Power
Three (7) alkaline batteries
Operating temperature
0℃-50℃
Relative Humidity
20~90%RH
Total Weight
106G (without battery)
Complete-built unit size
126*64*28mm
DR3000
Dual-use Coating Thickness Gauge

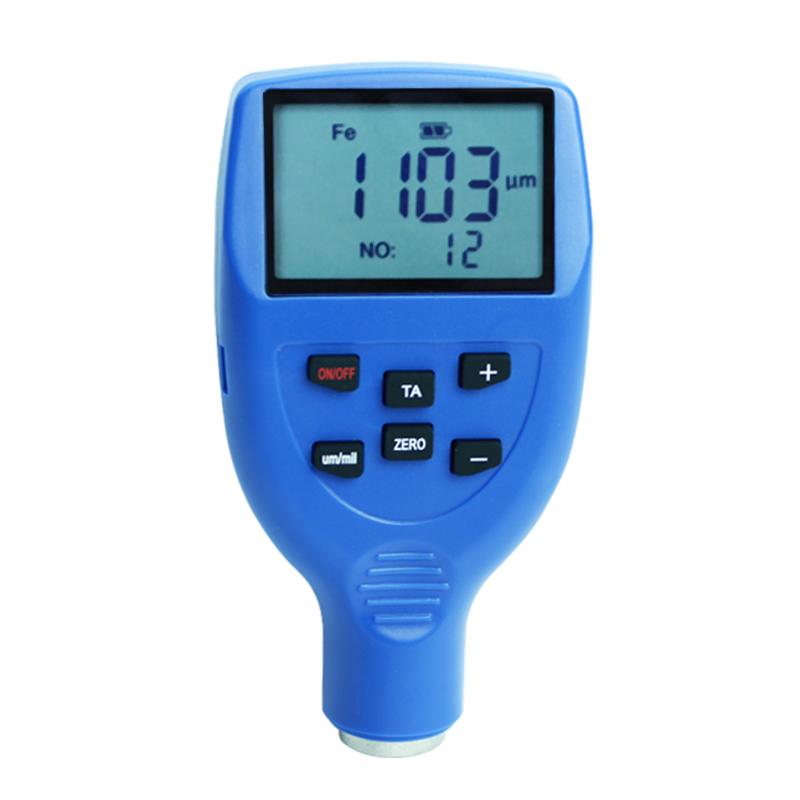

DONGRU DR3000 dual-use Coating Thickness Gauge 0~3000μm Picture

Introduction

DR3000 large-range coating Thickness Gauge is an integrated dual-purpose Thickness Gauge, according to the national industry: JJG818-2005 standard professional non-destructive testing instrument for measuring the thickness of metal material surface coating layer objects, easy to use, easy to carry, Better repeatability and better performance. It uses the following different measurement methods depending on the metal substrate.

A. Magnetic thickness measurement method, which can non-destructively measure the thickness of non-magnetic coatings (such as: galvanized, chromium, indium, enamel, rubber, powder, paint, electrophoresis, enamel) on magnetic metal substrates (such as: steel, iron) , anti-corrosion layer, plastic spraying, coating, etc.)

B. Eddy current thickness measurement method, which can non-destructively measure the thickness of non-conductive coatings (such as: paint, powder, plastic, rubber, enamel, enamel, electrophoresis, anti-corrosion layer) on non-magnetic metal substrates (such as: aluminum, copper, stainless steel) , spray layer, etc.)

Features

  1. Alloy integrated probe

  2. Simple operation, fast test speed and high sensitivity

  3. Exquisite ergonomic integrated design, easy to carry

  4. Imported 32-bit high-precision processing chip and high-speed data processing technology, temperature compensation technology

  5. Two test methods: continuous test (CONT INUE) and single (SINGLE) measurement

  6. Statistical function: maximum value (MAX), minimum value (MIN), average value (MEA)

  7. It can store 2000 measurement data, which can be saved in 10 groups, and the saved data can be viewed

  8. It can be connected to a computer for communication and read out stored data for saving or printing (optional)

  9. Two calibration methods: zero point calibration and two point calibration

  10. There is a buzzer prompt during the operation (single measurement mode)

  11. Automatic identification of ferrous and non-ferrous substrates

  12. low Voltage indication

  13. Manual/automatic shutdown function

  14. Super large LCD backlight display, with screen rotation and inversion function

  15. Metric and imperial conversion function um/mil


FAQ
QHow to zero and two point calibrate?
A The zero-position calibrate is to press the probe on the base, press the zero-correction key "ZERO" button and then release it. The two-point calibrate needs to select the appropriate film thickness sheet on the basis of the zero-position calibrate, press the probe down for measurement, and then correct it through the "+" "-" button.
QWhy place a film thickness sheet before measurement?
A Placing the film thickness sheet helps to ensure the accuracy of the measurement results. If there is a deviation in the measurement results, the instrument needs to be calibrated.
QWhat statistical functions are available?
A The Coating thickness gauge can count the number of measurements and display them on the LCD screen. It also has the function of counting MAX Maximum, MIN Minimum and Average. The data can be read in turn by pressing the corresponding button.
QHow to switch test mode between Coating thickness gauges?
A The Coating thickness gauge defaults to single (SINGLE) test mode. To switch to continuous (CONTINUE) test mode, press the "+" key and the "ON/OFF" key at the same time in the shutdown state, then release the "ON/OFF" first, and then release the "+" key.
QHow to perform screen swirl/spin display for upside down detection?
A Long press "TA" (about 3 seconds), and the results during the test will be inverted 180 degrees, which helps to reverse the detection.
QWhat is the minimum measurement area of this thickness gauge?
A Hello, it is 18 * 15mm.
QMeet ISO2360 dual-use Coating thickness gauge
A DR3000 dual-use Coating thickness gauge, please refer to it.
