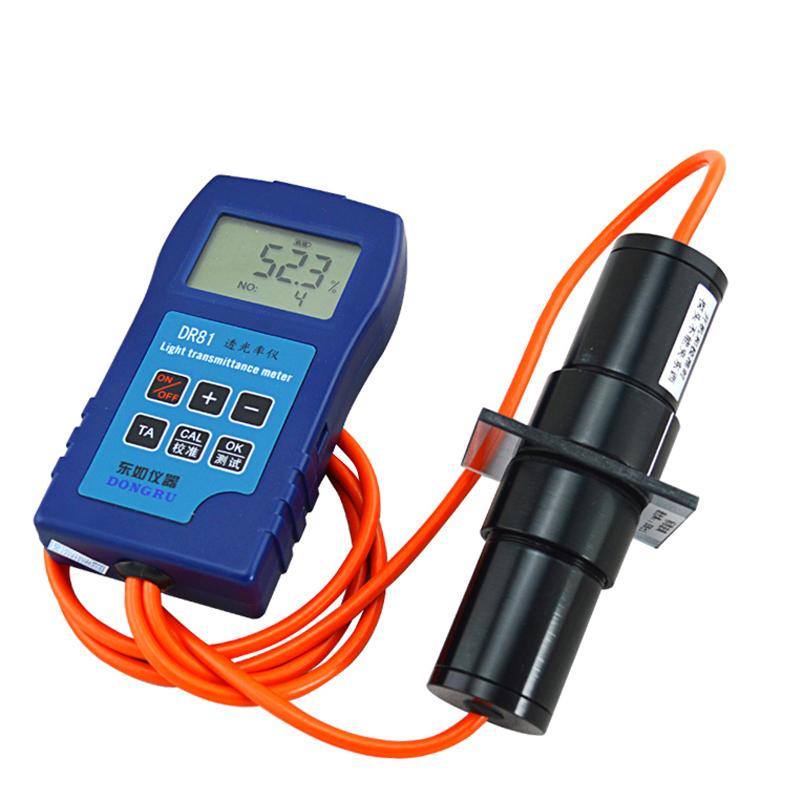

DONGRU DR81 Transmittance meter 0.0-99%

DR81

Transmittance meter

Introduction of Transmittance Meter

The ratio of the luminous flux passing through the object to the luminous flux incident on the object is the light transmittance of the object, expressed as a percentage. DR81 light transmittance meter is mainly used to measure the visible light transmittance of various glass, plastic, film and transparent or translucent materials. This instrument is made of imported components according to the optical principle. It is easy to operate, accurate in measurement, and small in size. Easy to carry, especially suitable for on-site measurement.

Application

On-site measurement in automobile manufacturing and testing, glass products, aerospace and other industries.

Light transmittance measurement of protective film, PC, acrylic and other plastic products.

Transmittance measurement of other transparent or translucent materials.

(Note: printing, matte surface, and milky white materials are not suitable for this machine to measure)

Features

• Split-type light transmittance meter, simple operation, fast measurement speed, good sensitivity and high measurement accuracy

• There are two test modes: single test (SINGLE) and continuous (CONT INUE) measurement mode

• There are four statistical functions: maximum value (MAX), minimum value (MIN), average value (MEA), measurement times

• Large capacity storage, can store 800 measurement data

• Connect to a computer for communication, read out stored data for saving or printing (applicable to hosts with communication ports)

• Automatic calibration and manual calibration when the instrument is turned on

• The operation process is marked with a buzzer (single measurement mode)

• Large LCD with backlight, low Voltage indicator

• Manual/automatic shutdown function

Packing list： Host x1, calibration shim x5, battery x3, manual x1, certificate x1, cleaning cloth x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
