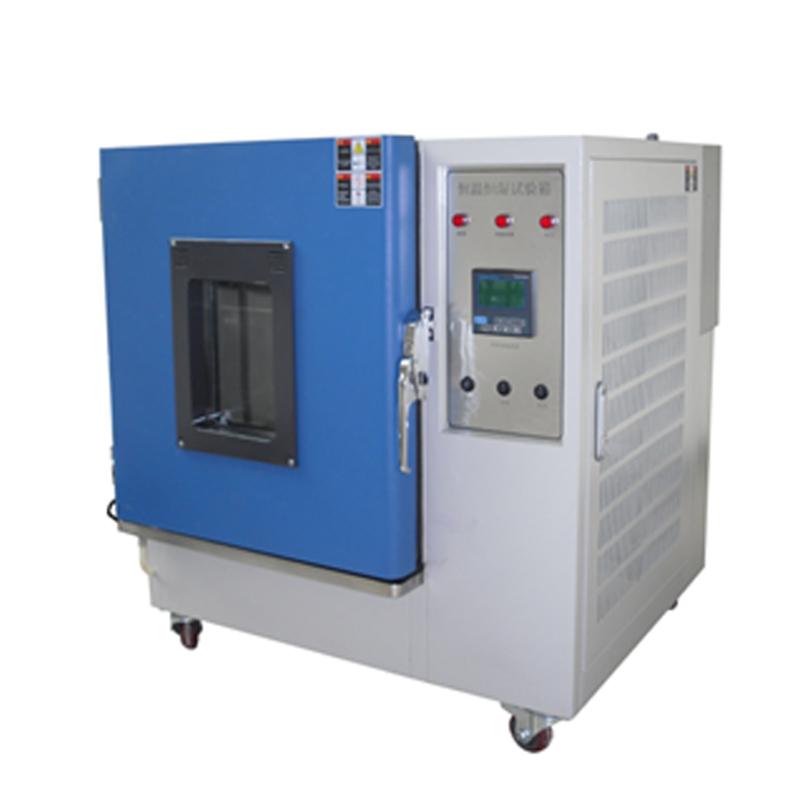

ZKHS DHS-100 Low Temperature Constant Moist Heat Box 0~100 ℃/100L
SE
DHS-100
ZKHS DHS-100 Low temperature constant damp heat boxSPEC
ZKHS DHS-100 Low temperature constant damp heat boxDetails
ZKHS DHS-100 Low temperature constant damp heat boxPacking list
- SKU
- NB026895
- Interior size
- 45*450*500mm
- Temperature range
- 0~100℃
- Humidity control range
- 30~98%R.H
- Temperature fluctuation
- ≤±0.5℃
- Humidity Deviation
- +2、-3％R.H
- Heating rate
- 0→100℃≈35min
- Timer
- 0~9999 M, H adjustable
- Controller
- Using (7.0 inch) large screen screen, the screen operation is simple, and the program editing is easy.
- temperature control Accuracy
- ±0.1℃
- Temperature transducer
- Platinum resistor. PT100Ω/MV
- Heating system
- Fully independent system, nickel-chromium alloy electric heating heater
- Humidification system
- Built-in isolated, all stainless steel shallow surface evaporative humidifier
- Dehumidification system
- Adopt evaporator coil dewpoint temperature laminar flow contact dehumidification method
- Water supply system
- Humidified water supply adopts automatic control
- Refrigeration system
- Fully enclosed air-cooled compression refrigeration method, original French "Taikang" unit
- Circulatory system
- Temperature-resistant and low-noise air-conditioned motor, multi-leaf centrifugal wind turbine
- Enclosure Material
- A3 steel plate electrostatic spray treatment
- Inner box material
- SUS304 stainless steel high quality mirror steel plate
- Thermal insulation material
- Polyurethane Rigid Foam/Ultrafine Glass Fiber Cotton
- Door frame insulation
- Double Layer High and Low Temperature Conditioning Silicone Rubber Door Seal
- Total power
- 4.0KW
- Standard configuration
- 1 set of illuminated Glass window, 2 test racks, 1 test lead hole φ50mm
- Safety Devices
- Leakage, short circuit, over temperature, water shortage, motor overheating, compressor overVoltage, overload, overcurrent protection
- Power
- AC220V ± 10% 50Hz AC380V ± 10% 50Hz three-phase five-wire system
- Environment temperature
- 5~30℃
- Environment humidity
- ≤85％R.H
- Temperature Uniformity
- ≤±2℃
- Cooling rate
- 100→0℃≈45min
- Humidity Control Accuracy
- ±1％R.H
Applications
◆This product is suitable for testing equipment required in the fields of aviation, automobiles, home appliances, scientific research, etc. It is used to test and determine the parameters of electrical, electronic and other products and materials after high temperature, low temperature, humidity heat or constant temperature environment changes and performance.

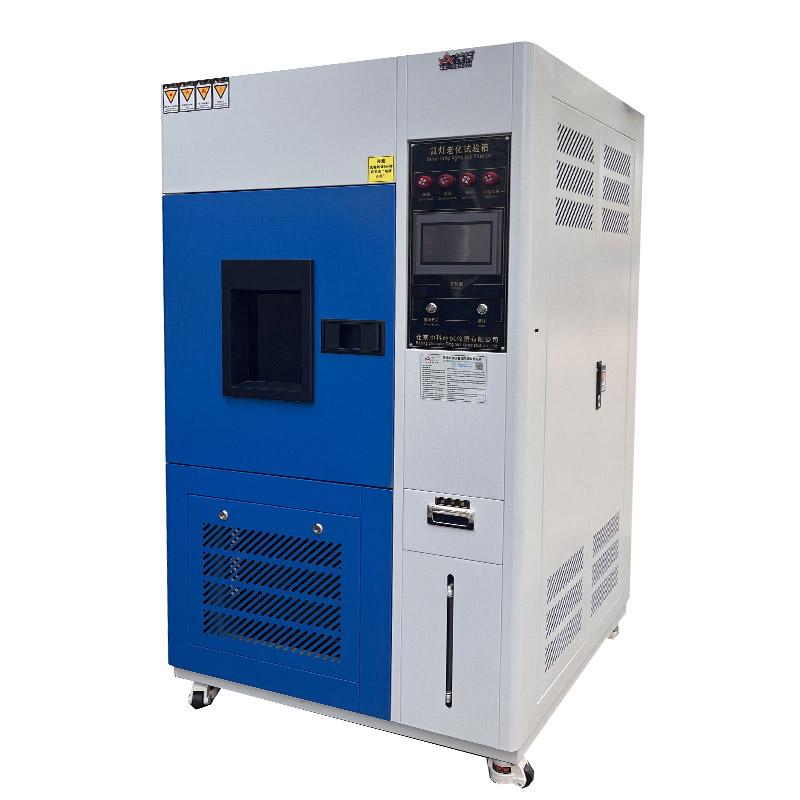

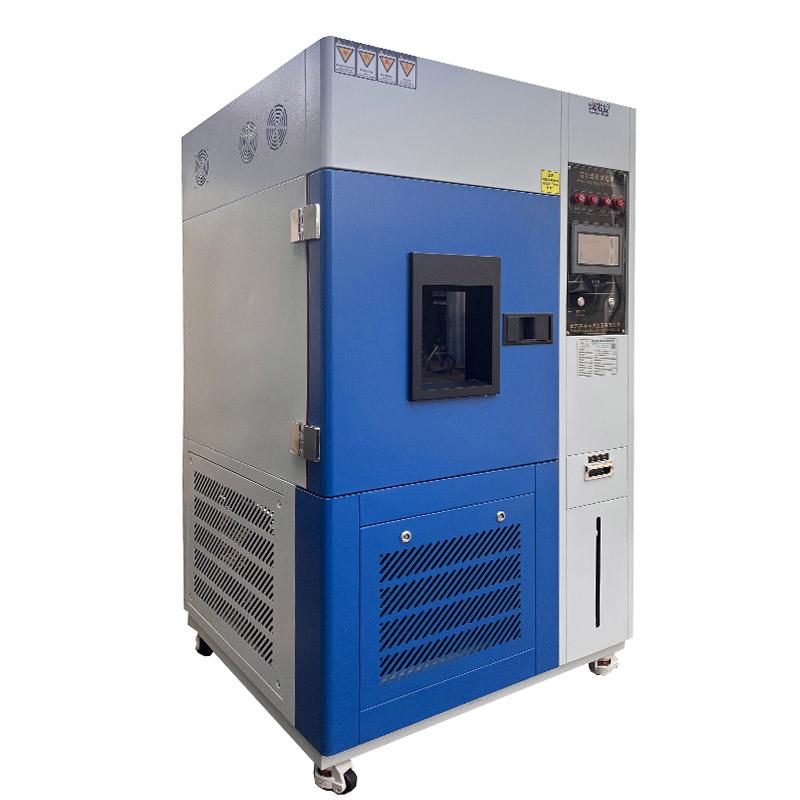

Box structure
◆The box body is processed by CNC machine tools, with beautiful and elegant appearance, and adopts non-reactive handles, which are easy to operate.

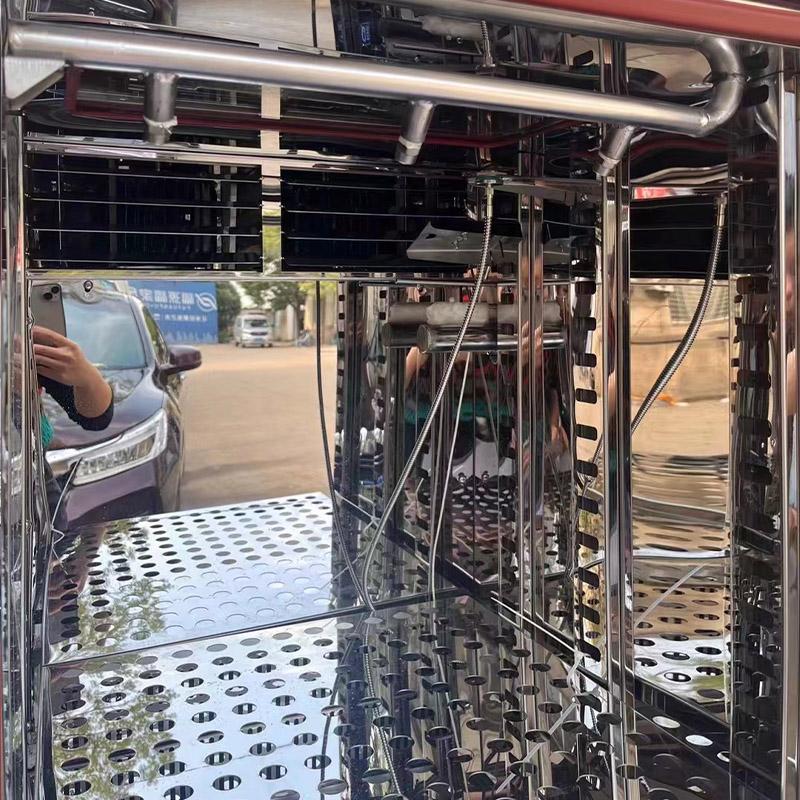

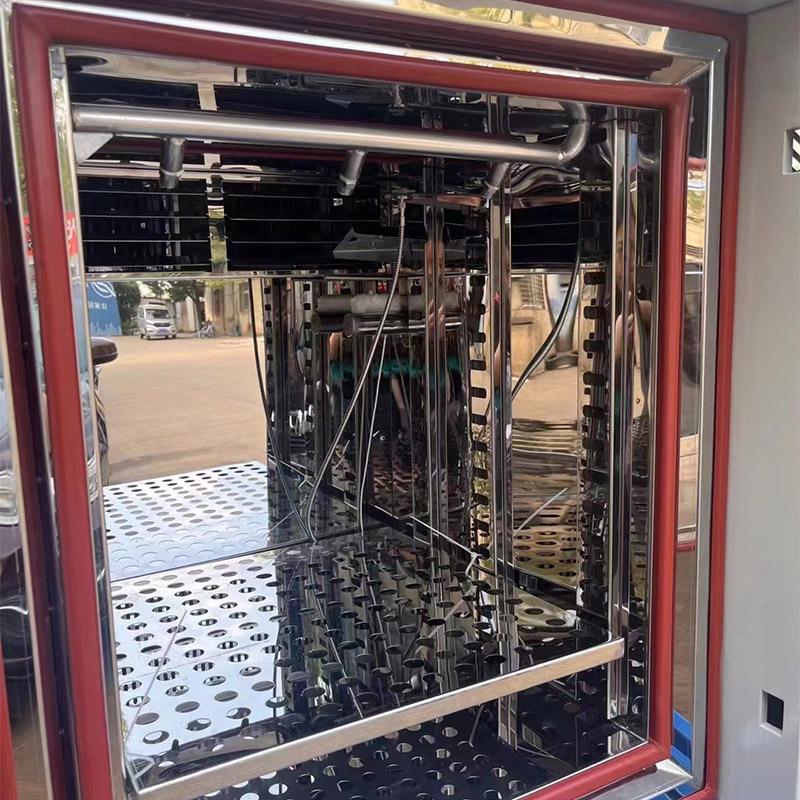

◆The inner tank of the box is made of imported high-grade stainless steel (SUS304) mirror panel argon arc welding, and the outer shell of the box is made of A3 steel plate with plastic spraying.
◆Adopt (7.0-inch) super large screen, easy to operate the screen, and easy to program edit.

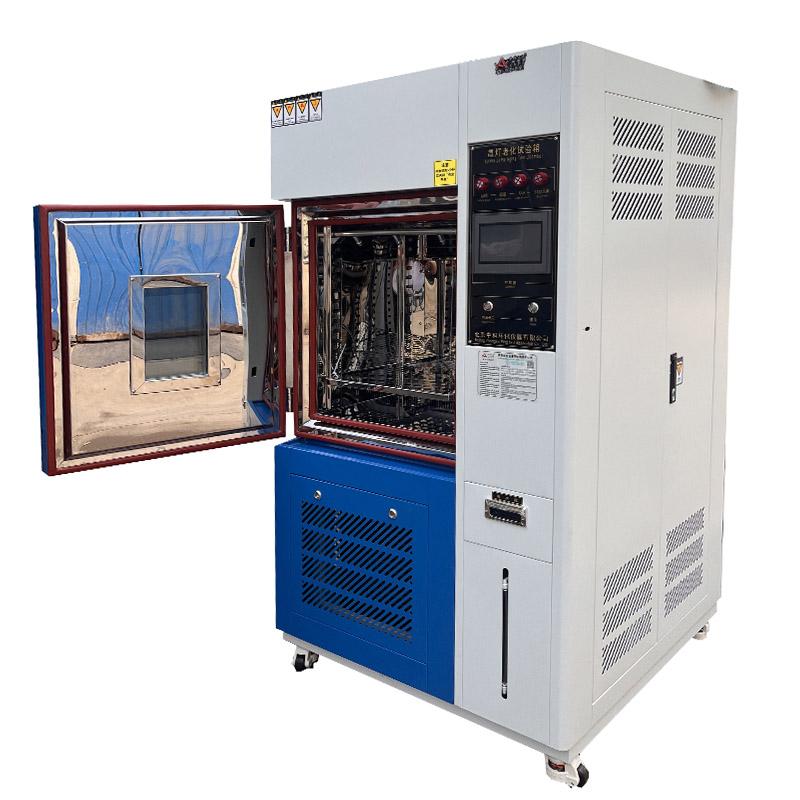

◆The large observation window is equipped with a lighting lamp to keep the inside of the box bright, and double-layer glass is used to clearly observe the situation inside the box at any time.
◆With an independent temperature limit alarm system, it will be automatically interrupted when the temperature exceeds the limit, so as to ensure the safe operation of the experiment without accidents.
◆Optional Recorder, the printer can print and record the set parameters and scan out the temperature and humidity change curve, 4 ~ 20mA standard signal.
◆The test hole with a diameter of 50mm is equipped on the left side of the cabinet.
Refrigeration and air circulation system
◆Refrigerator adopts French original "Taikang" fully enclosed compressor unit.
◆Multi-blade air blower is used for strong air circulation, avoiding any dead angle, and can make the temperature distribution in the test area even.
◆The wind circuit is designed for air circulation and air return. The wind pressure and wind speed are in line with the test standards, and it can make the temperature stabilize quickly when the door is opened.
◆Heating up, cooling down, the system is completely independent and effective, reducing test costs, increasing life, and reducing failure rates.
Standards
Strictly refer to: GB/T5170.5-2008, GB/T10586-2006, GB/T2423.1-2008, GB/T2423.3-2006 and other relevant standards for design and manufacture.
Series selection
model | DHS-100 | DHS-225 | DHS-500 | DHS-800 | DHS-010 |
Inner dimension DXWXH | 45X450X500 | 500X600X750 | 700X800X900 | 800X1000X1000 | 1000X1000X1000 |
temperature range | 0℃～100℃ | ||||
humidity range | 30～98%RH | ||||
Fluctuation/Uniformity | ≤±0.5°C, ≤±2°C | ||||
Humidity Deviation | +2, -3%RH | ||||
Rising and cooling time | 0℃～100℃about 35min, 100℃～0℃about 45min | ||||
Test time | 0～9999 M, H adjustable | ||||
controller | It adopts (7.0-inch) super large screen, which is easy to operate on the screen and easy to edit programs. | ||||
Accuracy range | Setting accuracy: temperature ±0.1°C, humidity ±1%RH | ||||
Temperature and humidity sensor | Platinum resistance.PT100Ω/MV | ||||
Heating system | Fully independent system, nickel-chromium alloy electric heating heater | ||||
humidification system | Built-in isolated, all stainless steel shallow surface evaporative humidifier | ||||
dehumidification system | Adopt evaporator coil dew point temperature laminar flow contact dehumidification method | ||||
water supply system | Humidification water supply adopts automatic control | ||||
Cooling System | Fully enclosed air-cooled compression refrigeration method, original French "Taikang" unit | ||||
circulatory system | Temperature-resistant low-noise air-conditioning motor, multi-blade centrifugal wind wheel | ||||
Enclosure Material | A3 steel plate electrostatic spray treatment | ||||
Inner box material | SUS304 stainless steel good mirror plate | ||||
Insulation material | Polyurethane rigid foam/superfine glass fiber cotton | ||||
door frame insulation | Double-layer high-low temperature aging resistant silicone rubber door seal | ||||
Total power | 4.0KW | 5.0KW | 6.0KW | 7.5KW | 9.0KW |
Standard configuration | Attached with 1 set of lighting glass windows, 2 test sample racks, 1 test lead hole φ50mm | ||||
safety protection | Leakage, short circuit, over temperature, water shortage, motor overheating, compressor overpressure, overload, overcurrent protection | ||||
Voltage | AC220V±10％50Hz AC380V±10％ 50Hz Three-phase five-wire system | ||||
Ambient temperature | 5℃～＋30℃ ≤85%RH | ||||
