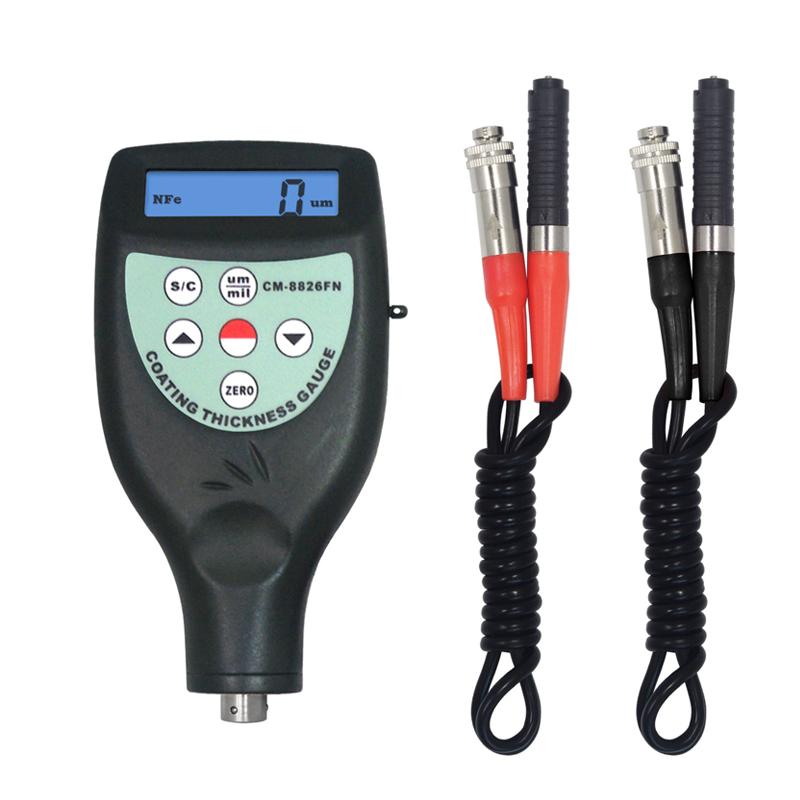

LANDTEK CM8826f Coating Thickness Gauge magnetic Induction Coating Thickness Gauge platings/paints

CM8826f

Coating Thickness Gauge

LANDTEK mid-range practical type, external probe, magnetic Induction thickness measurement; RS232 interface; Single or continuous Measurement mode; Wear-resistant hard metal spring guide sleeve probe; USB and Bluetooth data output can be purchased separately.

Introduction

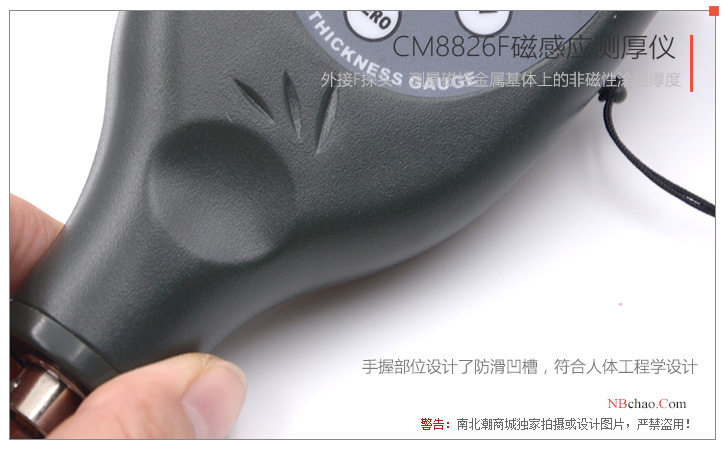

LANDTEK CM8826f coating Thickness Gauge is a magnetic coating Thickness Gauge with an external F probe, which is used to measure the thickness of non-magnetic coatings on magnetic metal substrates, and the measurement is stable and fast.The CM8826f Coating Thickness Gauge is a single-probe Thickness Gauge with both single and continuous measurements, as well as a low Voltage prompt for both manual and automatic shutdowns.The CM8826f coating Thickness Gauge is ergonomically designed to be aesthetically pleasing, aesthetically pleasing, and easy to operate.

Probe introduction

The F-probe directly measures the thickness of non-magnetic overlays (e.g., paint, plastic, enamel, copper, aluminum, zinc, chromium, etc.) on the surface of magnetically conductive materials such as steel and nickel. It can be applied to the thickness measurement of electroplating, paint layer, enamel layer, aluminum tile, copper tile, babbitt alloy tile, phosphating layer and paper, and can also be used for thickness measurement of hull paint and attachments of underwater structural parts.

Features and advantages

1) Iron-based single-use coating Thickness Gauge.

2）CM8826f Coating Thickness GaugeThere are two types of measurement options: single and continuous.

3) Metric/Imperial unit conversion.

4） CM8826f Coating Thickness GaugeIt has functions such as manual shutdown, automatic shutdown and under-Voltage prompt.

5) There is a buzzer prompt sound during operation, and the buzzer does not sound when continuous measurement.

6) With the optional accessory RS232C software and cable, it can communicate with the PC computer to realize the functions of data collection, processing, analysis and printing.

7) Optional Bluetooth™ data output options are also available.

8) Split type, provide a variety of probes, more mobile measurement.

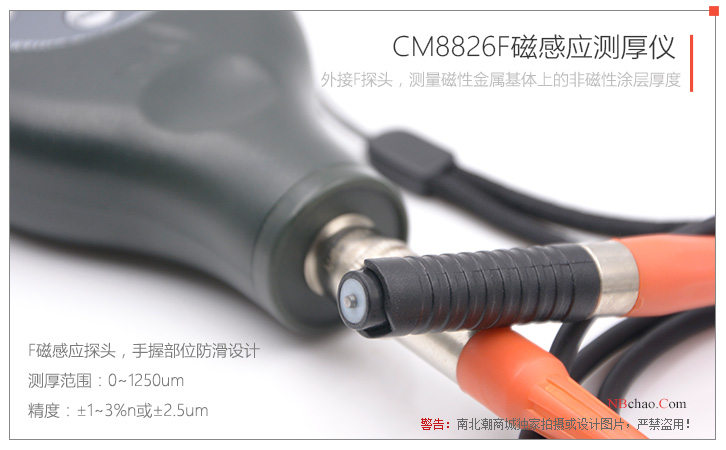

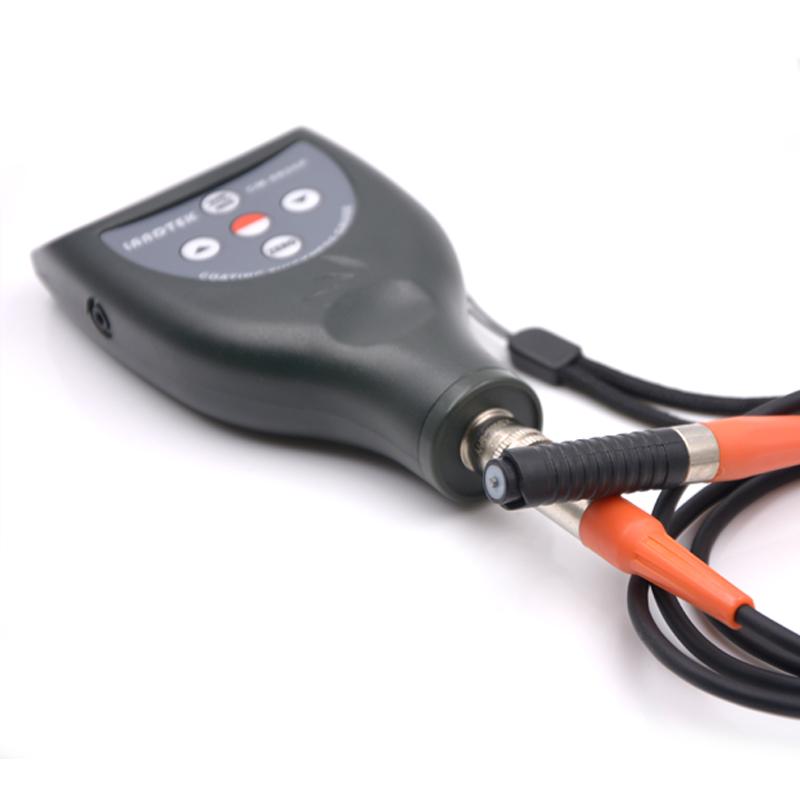

9) The spring-loaded guide sleeve probe with wear-resistant hard metal probe can not only measure on hard or rough surfaces, but also ensure that the probe has a constant tight force and stable sampling value.

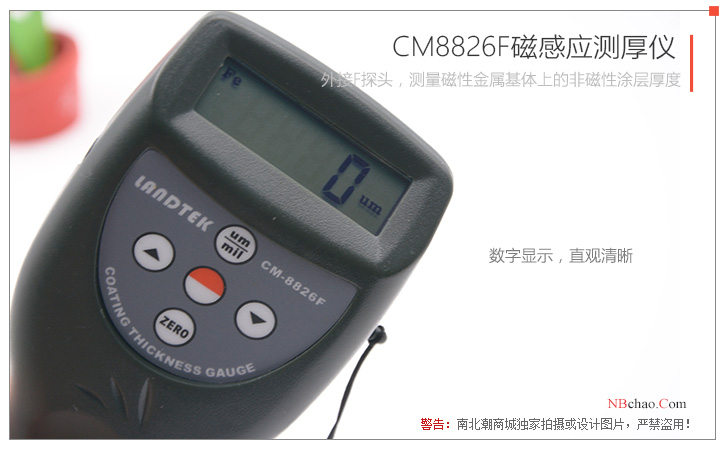

10) The display screen is a 4-digit 10mm LCD screen.

Applications

LANDTEK CM8826F coating Thickness Gauge is widely used in manufacturing, metal processing industry, chemical industry, commodity inspection and other testing fields.

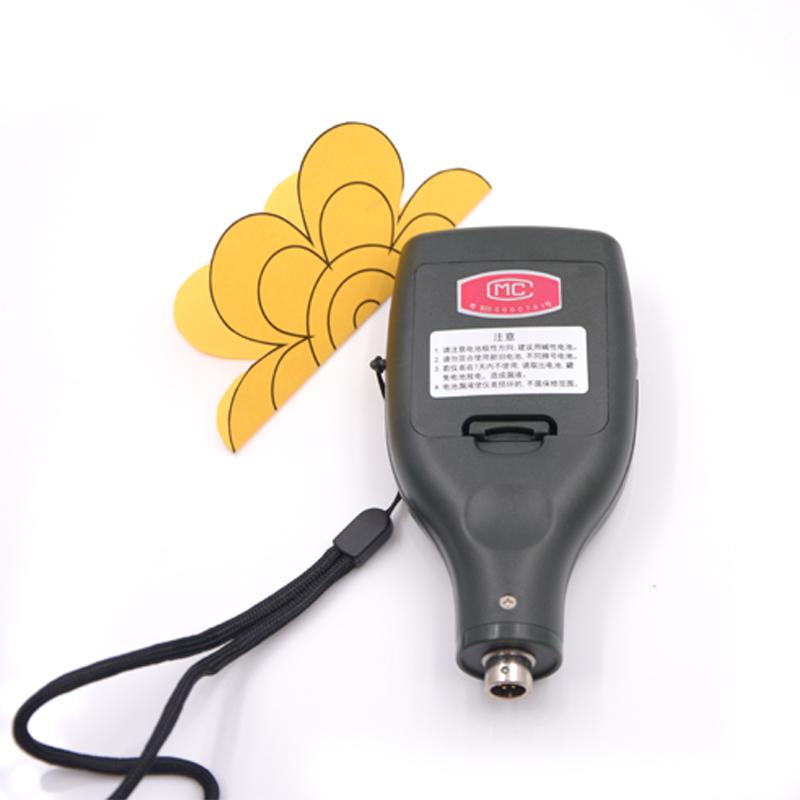

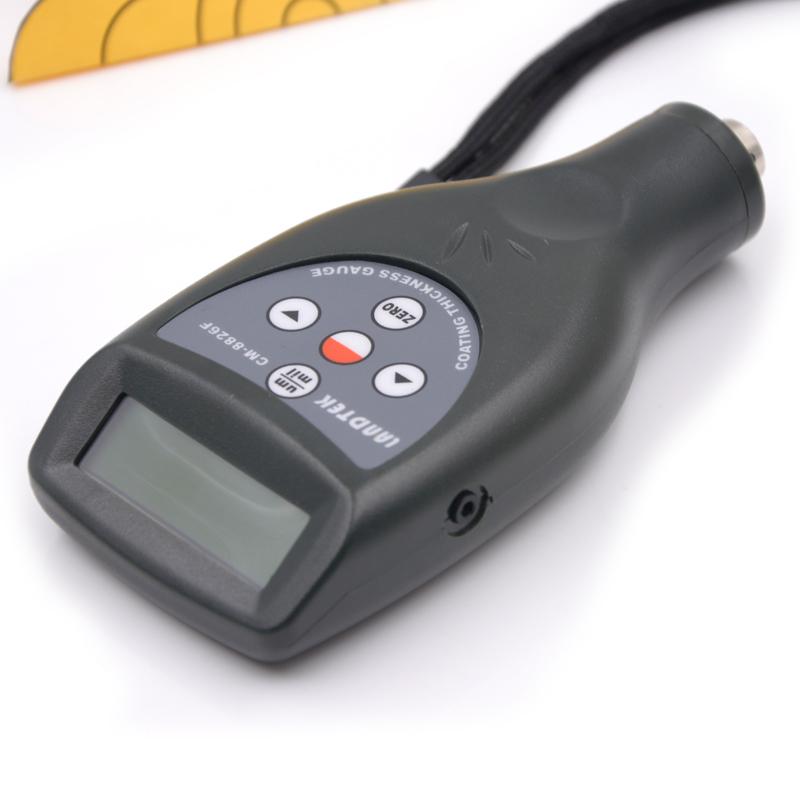

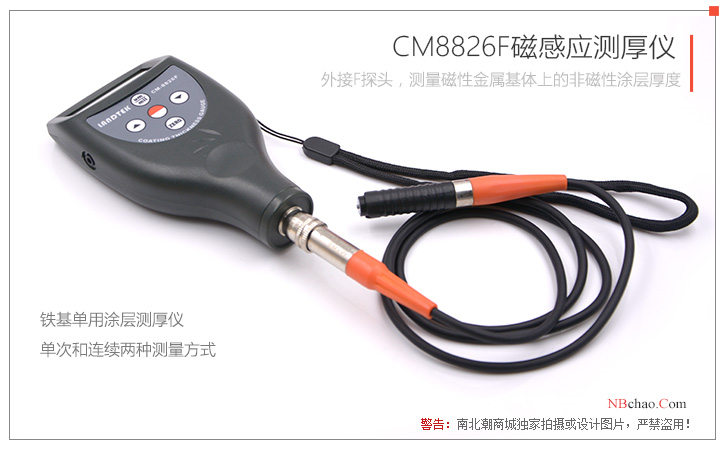

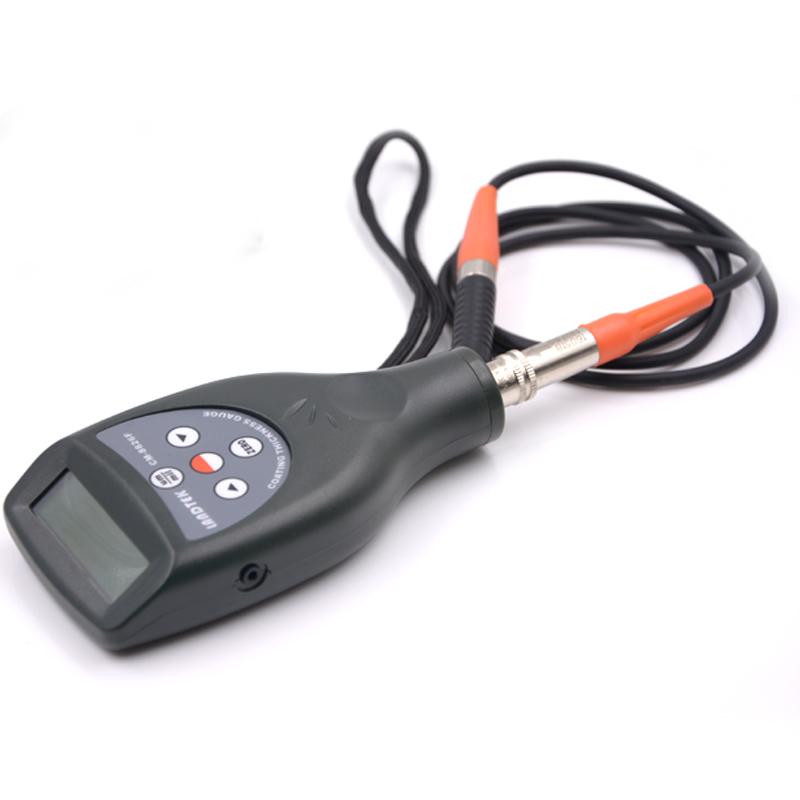

Actual picture of the product

Selection guide

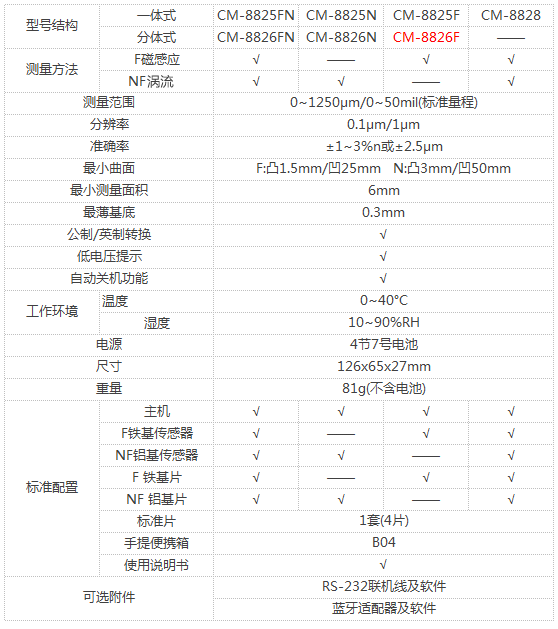

LANDTEK Coating Thickness Gauge Selection List

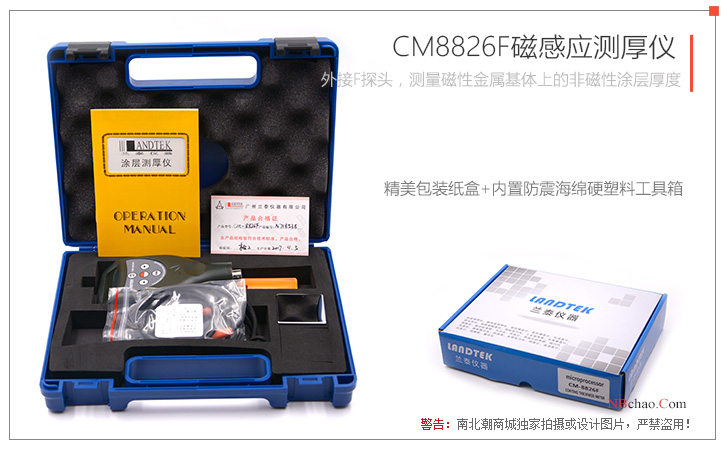

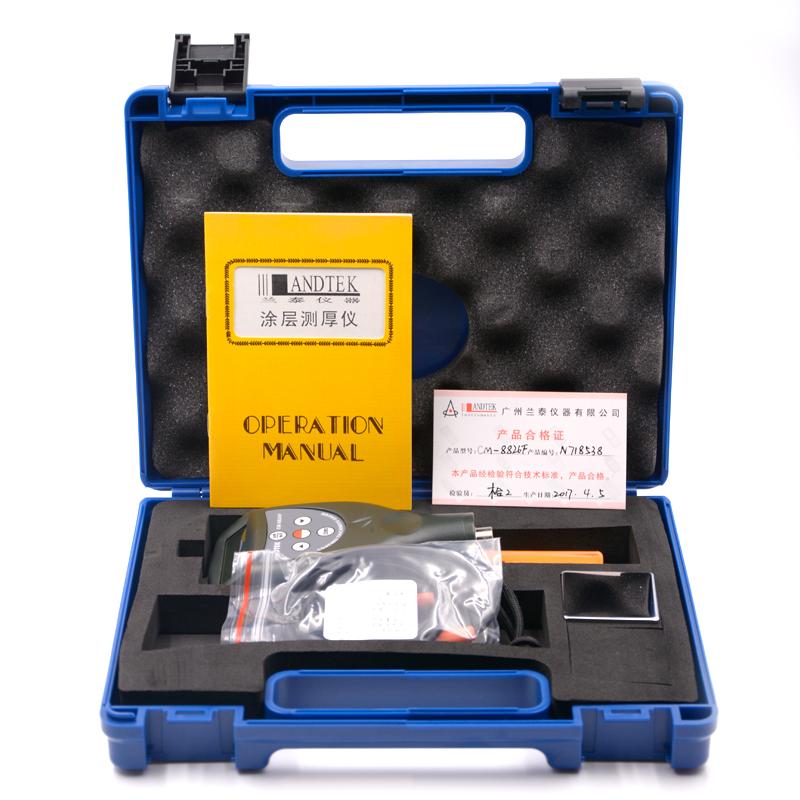

Packing list：host x1, probe (iron-based/eddy current) x1 each, reference block (iron-based/aluminum-based) CTG-BS x1 each, calibrated diaphragm CTG-CFx4, portable box x1, manual x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
