ZKHS QL-100 Ozone Aging Test Chamber aging test for resistance to sunlight and artificial Light sources

SE
ZKHS QL-100 Ozone Aging Test Chamber size 450X450X500mm, Temperature range RT + 10 ℃~ 70 ℃, 0 ℃~ 70 ℃, Humidity range 65%~ 98% R.H, 40%~ 98% R.H, ozone concentration (low concentration) 10~1000PPhm, (high concentration) 1~ 500PPm, fluctuation? 10%, Temperature Fluctuation +/- 0.5 ℃, Humidity stability + 2, -3% R.H.
$10953.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT

ZKHS QL-100 Ozone aging Test ChamberSPEC

ZKHS QL-100 Ozone aging Test ChamberDetails

ZKHS QL-100 Ozone aging Test ChamberPacking list

SKU
NB026910
Interior size
450*450*500mm
Temperature range
RT+10~70℃、 0~70℃
Humidity range
65~98%R.H、40~98%R.H
Ozone concentration range
(Low concentration) 10~1000PPhm, (high concentration) 1~ 500PPm, Fluctuation? 10%
Temperature Fluctuation
±0.5℃
Humidity stability
+2、-3%R.H
Sample state
Dynamic, static (optional)
Rotation speed
1Rpm 360 degree swirl/spin sample holder
Flow velocity
12~16mm/S
temperature Controller
Imported LED digital display P, I, D + S, S, R. Microcomputer integrated Controller
time Controller
High-precision hour, minute, second time Controller
Ozone concentration analysis
Imported concentration analysis regulator 4~ 20mA output, RS232 communication port
Ozone generator
Silent discharge tube
Safety protection
Leakage, short circuit, overtemperature, motor overheating, overcurrent protection
Power
4.0KW
Time setting range
0~9999 M, H adjustable
Power supply Voltage
AC380V +/- 10% 50Hz three-phase five-wire system
QL-100
Ozone aging Test Chamber

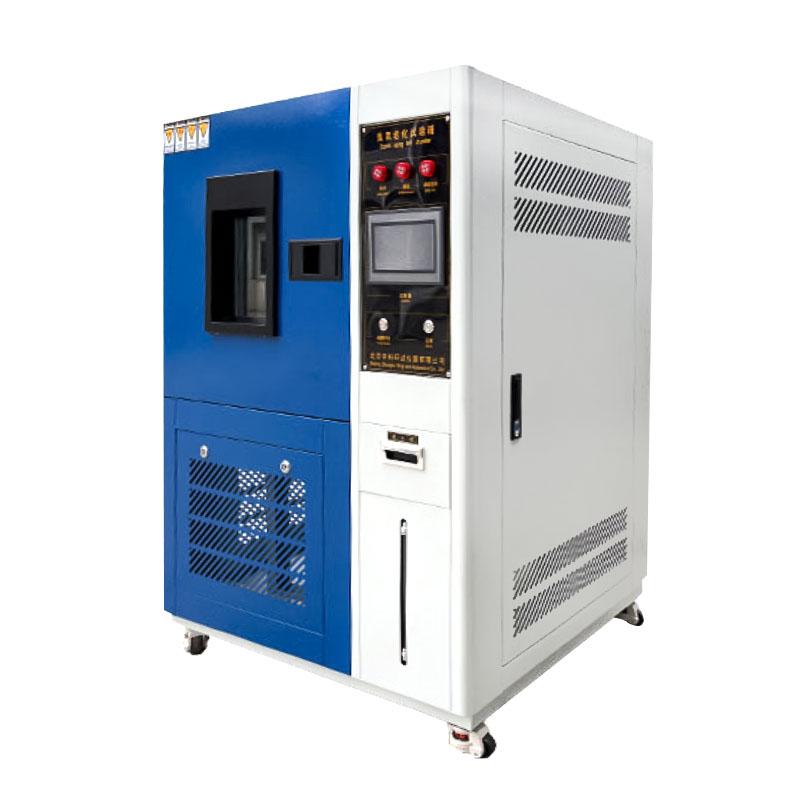

ZKHS QL-100 Ozone Aging Test Chamber aging test for resistance to sunlight and artificial Light sources Picture

Applications

◆The product is suitable for the aging test of sunlight resistance and artificial light source of non-metallic materials.

Cabinet structure

◆ The box body is processed and formed by CNC machine tools, the shape is beautiful and generous, and the box cover is the side buckle handle type, which is easy to operate.

◆ The inner tank of the box is made of imported stainless steel plate, and the shell of the box is sprayed with A3 steel plate, which increases the appearance texture and cleanliness.

◆ The heating method is heating wire, which heats up quickly and the temperature is evenly distributed.

Control system

◆ PT100 temperature sensor, imported instrument control heating, more stable temperature.

◆ The light can be controlled independently, and it can be controlled alternately.

◆ The light control time and the alternating control time can be set arbitrarily within 0~999H.

Meets standards

Strictly refer to: GB/T16777-2008, GB/T12967.4-2014 technical parameters design and manufacturing.

Series selection

Model

QL-100

QL-150

QL-225

QL-500

QL-010

Inner dimensions

450X450X500

500X500X600

500X600X750

700X800X900

1000X1000X1000

Temperature range

RT+10℃～70℃、 0℃～70℃

Humidity range

65%～98%R.H 、 40%～98%R.H

Ozone concentration

(Low concentration) 10~1000PPhm, (High concentration) 1~500PPm, Volatility 10%

Temperature fluctuations

±0.5℃

Humidity fluctuations

+2、-3%R.H

Test setup

Dynamic, static (optional)

Sample frame speed

360 degree rotation of the sample holder (1 revolution per minute)

Gas flow rate

12～16mm/S

Temperature controller

Imported LED digital display P, I, D+S, S, R. microcomputer integrated controller

Time controller

High-precision hour, minute, and second time controllers

Ozone concentration analysis

Inlet concentration analysis regulator 4~20mA output, RS232 communication port

ozonizer

Silent discharge tube type

Security

Leakage, short circuit, overtemperature, motor overheating, overcurrent protection

Total power

4.0KW

4.5KW

5.5KW

6.5KW

7.5KW

Duration of the trial

0~9999 M, H adjustable

Supply Voltage

AC380V±10% 50Hz three-phase five-wire system


FAQ
QOur laboratory mainly does building materials weathering resistance test, which model should choose?
A It is recommended to choose the QL-225 model. This size (500X600X750mm) is more suitable for the sample size of building materials, which can accommodate larger samples without taking up too much laboratory space. The equipment supports dynamic and static test modes, which can simulate actual use conditions, and the temperature and humidity control accuracy is high (temperature +/- 0.5 ℃, humidity +/- 2-3%), which fully meets the requirements of building material testing standards.
QNeed to control the aging test of light and ozone at the same time, can this device meet?
A Absolutely. The QL series ozone aging test chamber has an independent light control function, which can set the alternating cycle test of light and ozone, and the time can be adjusted arbitrarily within 0-999 hours. This design is particularly suitable for simulating the aging process of the interaction of sun and ozone in the outdoor environment. It is very practical for durability testing of automotive parts, outdoor building materials and other products.
QHelp me find an ozone aging test chamber that meets the GB/T16777 standard
A This QL-100 ozone aging test chamber is OK!
