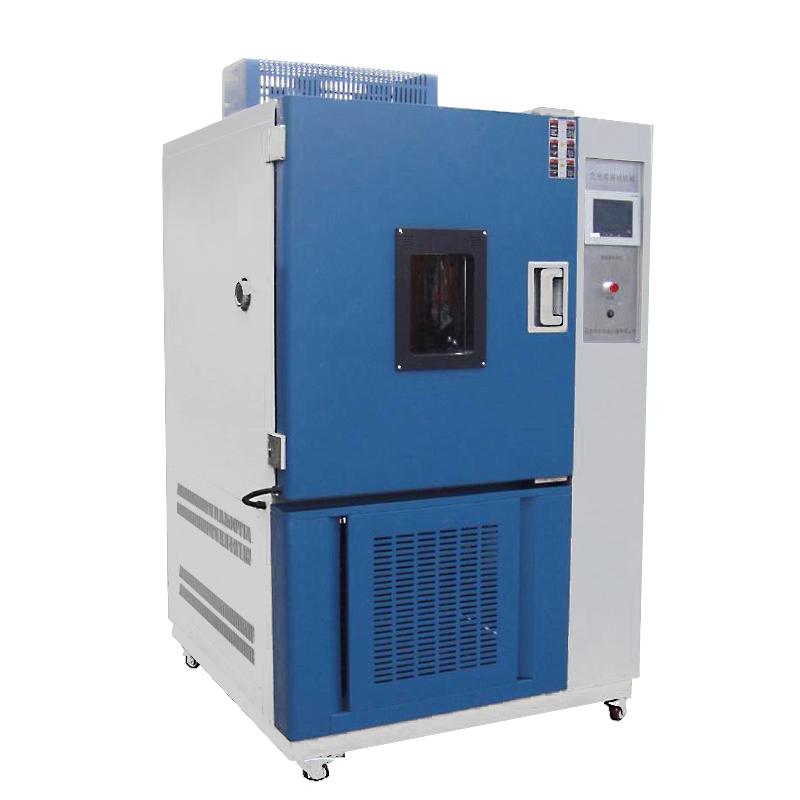

ZKHS GDJW-010D High and Low Temperature Cyclic Test Chamber -60 ℃~ 150 ℃

GDJW-010D

High-Low Temperature Cycling Test Chamber

Interior size 1000 * 1000 * 1000mm, Temperature range -60~150 ℃, Alternating range -60 ℃~ 85 ℃, Temperature fluctuation ≤ ± 0.5 ℃, Heating rate -20 → 100 ℃ Technologies 35min; -40 → 100 ℃ Technologies 45min, Cooling rate 25~ -40 ℃ Technologies 50min; 25~ -60 ℃ Technologies 65min

Applications

◆The product is suitable for aviation, aerospace products, information electronics, instrumentation, materials, electricians, electronic products, and various electronic components in the high-low temperature environment to test their performance indicators.

Cabinet structure

◆The box body is processed and formed by CNC machine tools, the shape is beautiful and generous, and the non-reaction handle is adopted, which is easy to operate.

◆ The inner tank of the box is made of imported stainless steel (SUS304) mirror panel, and the shell of the box is sprayed with A3 steel plate, which increases the appearance texture and cleanliness.

◆ The large observation window is equipped with a light to keep the box bright, and the tempered glass embedded in the heating body is used to clearly observe the situation in the box at any time.

◆The left side of the box is equipped with a test hole with a diameter of 50mm, which can be used for external test power cable or signal cable.

Control system

◆ The temperature control adopts "7.0" inch large-screen touch screen temperature and humidity control instrument, which is simple to operate and set.

◆After the data and test conditions are input, the controller has a locking function to avoid changing the temperature value by human touch.

◆ With the function of P.I.D automatic calculation, the temperature change conditions can be corrected immediately, so that the temperature control is more accurate and stable.

Refrigeration and air circulation system

◆ The refrigerator adopts the original French "Taikang" fully enclosed compressor unit.

◆ The refrigeration system is designed with unit or binary cryogenic circuit system.

◆ The multi-wing blower is used to supply air with strong air supply circulation to avoid any dead angles, which can make the temperature distribution in the test area uniform.

◆ The air path is designed to circulate the air outlet and return air, and the wind pressure and wind speed meet the test standards, and the temperature can stabilize quickly at the moment of opening the door.

◆ Heating, cooling, and the system is completely independent and effective, reducing the cost of testing, increasing the life expectancy, and reducing the failure rate.

Meets standards

Strictly refer to: GB2423.1-2008 Test A "High Temperature Test Method", GB2423.2-2008 Test B "Low Temperature Test Method" GJB150A.3, GJB150A.4 and other relevant standards for design and manufacturing.

Series selection

Packing list：Host x1, multi-layer heating and defrosting with lighting Glass window x1 set, test rack x2, test lead hole φ50mmx1, manual x1, warranty card x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
