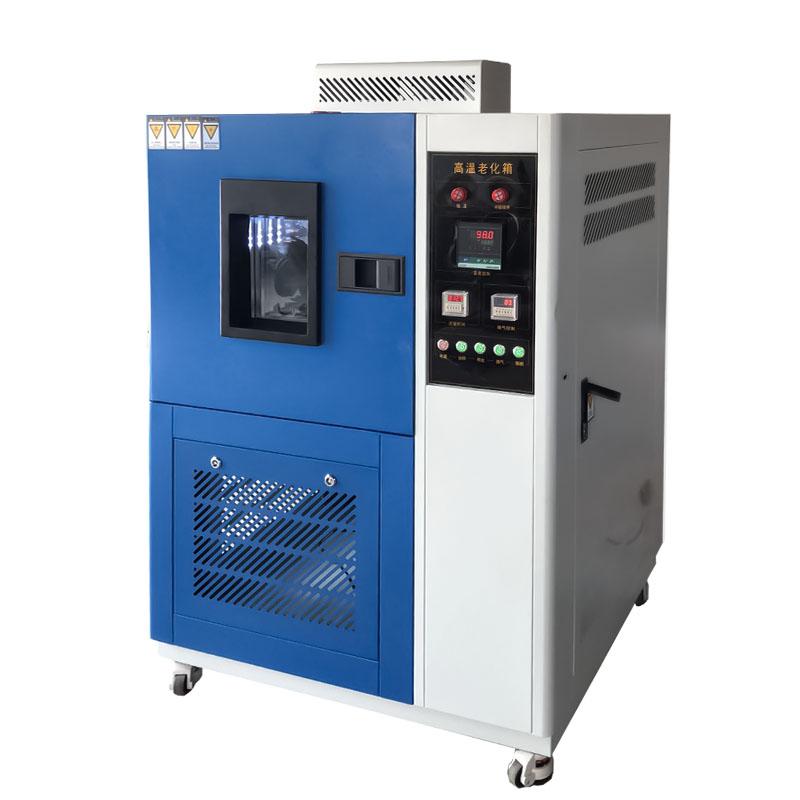

ZKHS QLH-010 Ventilation Conditioning Test Chamber 6.5KW/200 ℃

SE
The inner size of the QLH-010 ventilation Conditioning Test Chamber of ZKHS is 1000X1000X1000mm, the temperature range is RT + 10 ℃~ 200 ℃, the uniformity is ± 2 ℃, the constant temperature fluctuation is ± 0.5 ℃, the ventilation time is adjustable from 3min to 100h, and the ventilation volume is 3~ 100 times/h.
$7750.00/set
PromotionLoading...
Coupon
Certificate
Contact
Details SPEC Con CAT

ZKHS QLH-010200 ℃ ） Ventilation Conditioning Test ChamberSPEC

ZKHS QLH-010200 ℃ ） Ventilation Conditioning Test ChamberDetails

ZKHS QLH-010200 ℃ ） Ventilation Conditioning Test ChamberPacking list

SKU
NB026996
Liner size
1000*1000*1000mm
Temperature range
RT+10~200°C
uniformity
±2℃
Constant Temperature Fluctuation
±0.5℃
Ventilation time
3Min~ 100h adjustable
ventilation Volume
3~ 100 times/h
Controller
LED digital display P, I, D + S, S, R. Microcomputer integrated Controller
Accuracy range
±0.1℃、
Circulating Fan
High temperature and low noise motor. Multi-blade centrifugal wind turbine
Timer
0~9999 M, H adjustable
Total power
6.5KW
Turntable diameter
F700mm
safety protection
Leakage, short circuit, over temperature, motor overheating, over current protection
Power
AC220V ± 10% AC380V ± 10% 50Hz three-phase five-wire system
QLH-010200 ℃ ）
Ventilation Conditioning Test Chamber

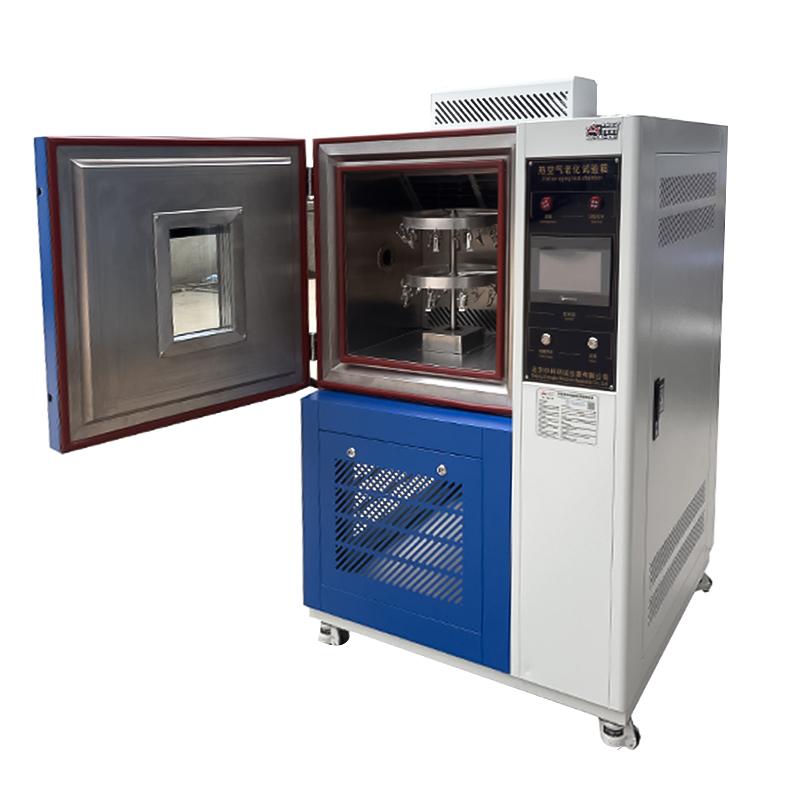

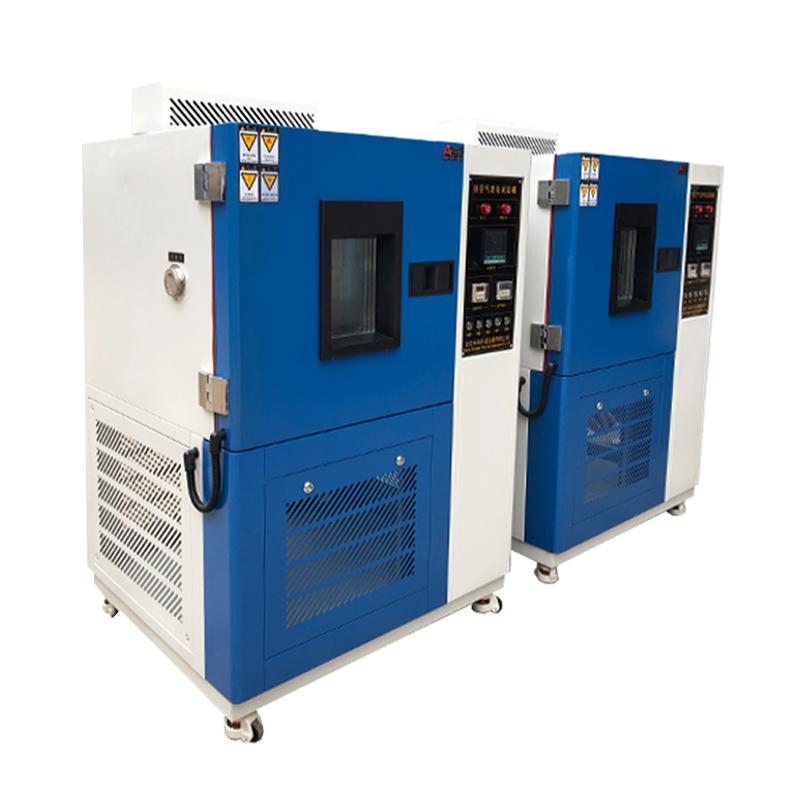

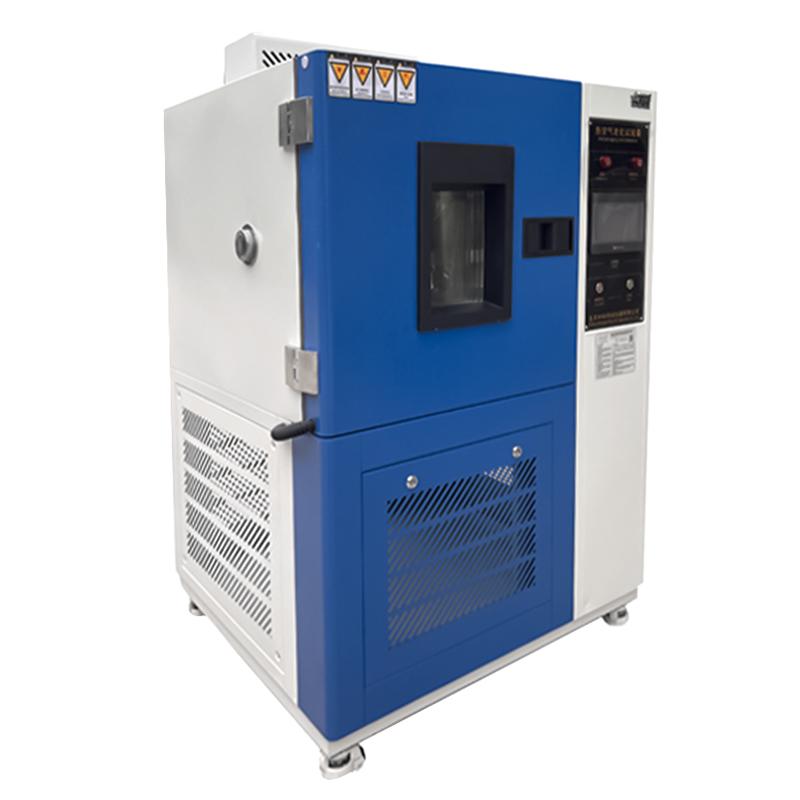

ZKHS QLH-010 Ventilation Conditioning Test Chamber 6.5KW/200 ℃ Picture

Applications

◆This product is suitable for heat resistance test of electrical insulation materials, ventilation aging test of electronic parts and plasticized products.

Box structure

◆The box body is processed by CNC machine tools, with beautiful and elegant appearance, novel and non-reactive handles, which are easy to operate.

◆The inner liner of the box is made of imported high-grade stainless steel (SUS304) mirror panel argon arc welding.

◆The shell of the cabinet is made of A3 steel plate with plastic spraying, which increases the appearance texture and cleanliness.

◆Adopt intelligent program microcomputer controller with temperature control protection, with timing function, accurate and reliable temperature control.

◆The large observation window is equipped with lighting to keep the inside of the box bright, and tempered glass is used to clearly observe the conditions inside the box at any time.

◆The hot air circulation system is composed of a fan that can operate continuously at high temperature and a special air duct, so that the temperature in the working room is uniform.

◆The aging box device is equipped with a low-speed turntable.

Standards

Strictly refer to: GJB7444-94 "Air Thermal Aging Test Chamber" and GB/T3512-2014, GB/T7141-2008, GBT 2951.42-2008, GB/T2951.11-2008 and other test standards design and manufacture;

Series selection

modelTotal powerTurntable diameter
QLH-1003.0KWΦ 300mm
QLH-2254.5KWΦ400mm _
QLH-5005.5KWΦ600mm _
QLH-8006.5KWΦ700mm _
QL-0106.5KWΦ700mm
Other parameters
temperature rangeRT+10℃～200℃, 250℃, 300℃
Evenness±2℃
Constant temperature fluctuation±0.5℃
ventilation time3min～100h adjustable
Ventilation volume3～100 times/h
controllerLED digital display P, I, D+S, S, R. Microcomputer integrated controller
Accuracy range±0.1℃,
circulatory systemHigh temperature resistant low noise motor. Multi-blade centrifugal wind wheel
Test time0～9999 M, H adjustable
safety protectionLeakage, short circuit, over temperature, motor overheating, over current protection
VoltageAC220V±10％ AC380V±10％ 50Hz Three-phase five-wire system


FAQ
QMeet the GB/T7141 ventilation aging test chamber
A QLH-010 ventilation aging test chamber, please refer to
