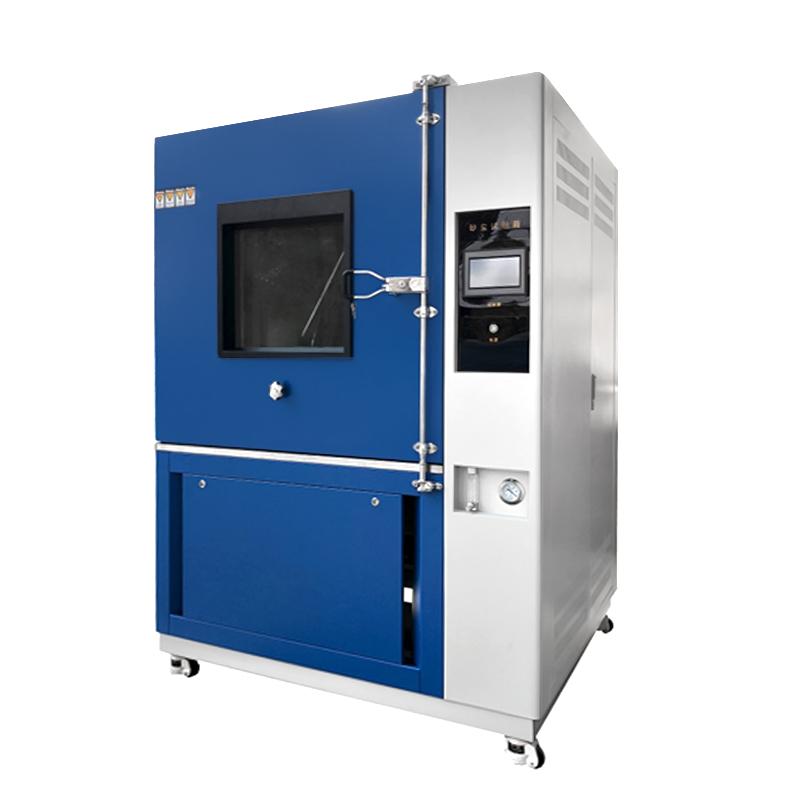

ZKHS SC-500 Sand dust Test Chamber Dust Environmental Test Chamber
SE
SC-500
ZKHS SC-500 Dust Test ChamberSPEC
ZKHS SC-500 Dust Test ChamberDetails
ZKHS SC-500 Dust Test ChamberPacking list
- SKU
- NB027000
- Liner size
- 800*800*800mm
- Mesh diameter
- 50um
- Nominal spacing between lines
- 75um
- Talc
- 2kg/m3
- Vibration time
- 99 minutes 59 seconds
- Timer
- 99 hours 59 minutes
- Specimen power socket
- Dust-proof socket AC220V 16A
- Controller
- Adopt imported PLC program to control the LCD, and use all Chinese to display Operating Time, etc.;
- Vacuum system
- Equipped with pressure gauge, air filtrate, pressure regulating triplet, connecting pipe (Vacuumpump is additional, please explain when ordering)
- Circulating Fan
- Enclosed alloy low noise motor, multi-leaf centrifugal fan;
- Dust heating system
- Stainless steel mica sheet heating sleeve
- Power
- AC380V ± 10% 50Hz three-phase five-wire system
- safety protection
- Leakage, short circuit, over temperature, motor overheating, over current protection
Applications
◆Product use: It is mainly used for the test of IP5X and IP6X levels specified in the shell protection level standard, and is suitable for dustproof and dustproof tests of various auto parts, including lights, instruments, electrical dust-proof jackets, steering systems, door locks, etc., as well as to test the tightness of the product.
Execute the component
◆ Imported PLC program control LCD controller.
◆ "Schneider" AC contactors, switches, buttons.
◆ "Panasonic" time relay.
◆ "Panasonic" dust-proof socket.
Control system
◆ Imported PLC program control LCD screen,
◆ Full Chinese display of Operating Time, etc
◆ The time of the dust blowing fan is automatically alternated;
◆ The dust blowing fan, dust vibration and total test time can be controlled separately;
Meets standards
Strictly refer to: GB/T4208-2008, GB/T10485-2007, GB/T2423.37-2006, GBT4942.1-2006 and other corresponding standards design and manufacturing;
Series selection
| Model | Inner box size |
| SC-500 | 800X800X800 |
| SC-800 | 800X1000X1000 |
| SC-010 | 1000X1000X1000 |
| SC-015 | 1000X1500X1000 |
| SC-020 | 1000X2000X1000 |
| Other parameters | |
| Diameter of the metal mesh | 50um |
| Nominal spacing between lines | 75um |
| Talcum powder dosage | 2kg/m3 |
| Vibration time | 99 minutes and 59 seconds |
| Duration of the trial | 99 hours and 59 minutes |
| Specimen power socket | Dustproof socket AC220V 16A |
| controller | Imported PLC program control LCD screen, full Chinese display working time, etc.; |
| Vacuum system | Equipped with pressure gauge, air filter, pressure regulating triplet, connecting pipe (Vacuum Pump is separately equipped, specified at the time of ordering) |
| Circulating fan | Closed alloy low-noise motor, multi-leaf centrifugal fan; |
| Dust heating system | Stainless steel mica sheet heating sleeve |
| Supply Voltage | AC380V±10% 50Hz three-phase five-wire system |
| Security | Leakage, short circuit, overtemperature, motor overheating, overcurrent protection |
