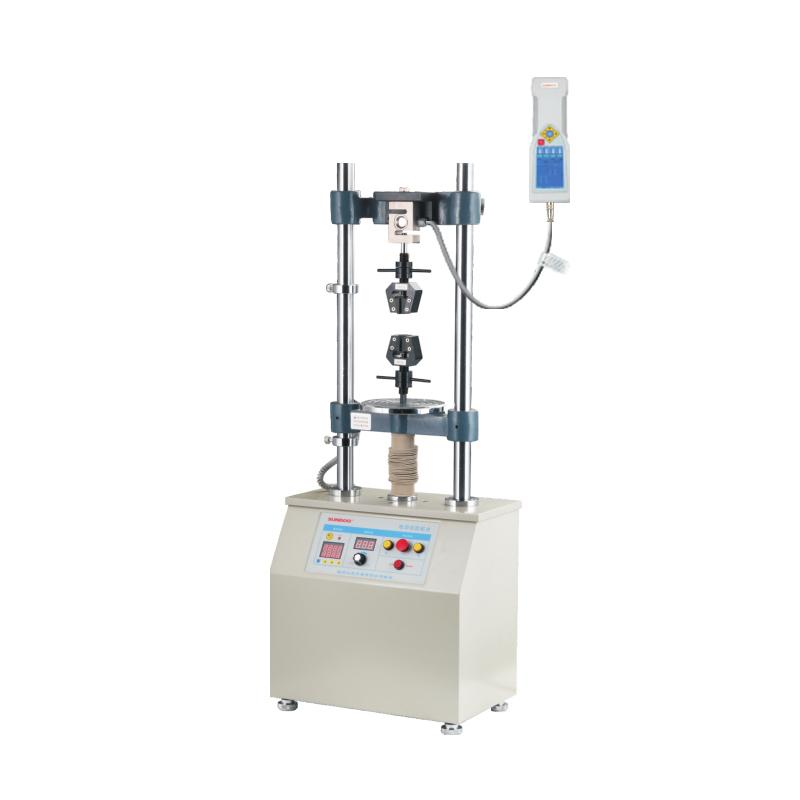

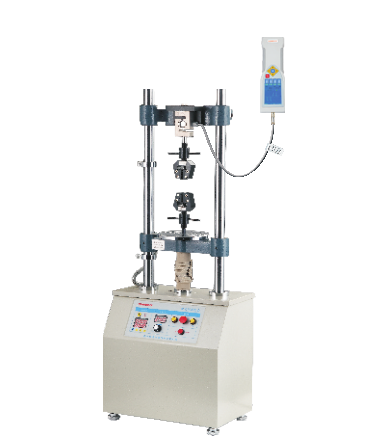

Sandu SJS-5KV stepper electric vertical machine
SESandu SJS-5KV stepper electric vertical machine is equipped with a stepper machine, adopts a double-column structure, and the rated load is 5000N. The SJS-5KV motor table is suitable for testing of push-pull load, insertion force, fatigue test and failure test in various industries.
$1325.00/set
PromotionLoading...
Coupon
Model：
SJS-5KV
SUNDOO SJS-5KV Electric vertical machineSPEC
SUNDOO SJS-5KV Electric vertical machineDetails
SUNDOO SJS-5KV Electric vertical machinePacking list
- SKU
- NB027016
- Dimensions
- 410*260*1030mm
- Weight
- About 55Kg
- rated load
- 5000N
- effective travel
- 200mm
- test speed
- 1-240mm/min
- Speed Graduation
- 1mm/min
SJS-5KV
Electric vertical machine
Introduction
The SJS series is equipped with a stepping motor and adopts a double-column structure; this machine has the advantages of stable structure, high test speed accuracy, good load stability, and wide application range. With stepless speed regulation, manual (jog), automatic cycle switching function. Equipped with push-pull force gauges (SH, SP) and related software, data ; it is suitable for testing such as push-pull load, insertion force, fatigue test, and destructive test in various industries.
FAQ
QDoes this test stand have 2000N?
A
Yes, 2KN is single-column.
The 5KN test bench can also be equipped with a 2KN Force Gauge.
QCan all electric vertical machines be used for inspection in the JB/T7796 standard?
A
Not necessarily, but this SJS-5KV electric vertical machine can be considered.
