LANDTEK CM8826n dry Film Thickness Gauge measurement of non-metallic coatings on nonmagnetic metallic substrates

CM8826n

Coating Thickness Gauge

LANDTEK Utility; External Probe, 1250μm; Eddy Current Thickness Measurement; RS232 Interface; Single or Continuous Measurement mode; Wear-resistant hard metal spring guide sleeve probe; optional USB and Bluetooth data output.

Introduction

LANDTEK CM8826n dry paint Film Thickness Gauge is an eddy current Thickness Gauge, which is mainly used to measure the thickness of dry film by using the principle of eddy current thickness measurement to measure the coating thickness on non-magnetic substrates such as aluminum plates and copper plates.CM8826n Dry Paint Film Thickness Gauge is an eddy current Thickness Gauge that is separated from the main unit and the sensor, and is equipped with an eddy current sensor as standard, and can also be equipped with other sensors for different measurement objects.The CM8826n coating Thickness Gauge is a practical Thickness Gauge with a measurement range of 0~1250 microns.

Applications

The CM8826n dry paint Film Thickness Gauge uses eddy current sensors to measure enamel, rubber, paint, plastic layers, etc. on substrates such as copper, aluminum, zinc, tin, etc. It is widely used in manufacturing, metal processing industry, chemical industry, commodity inspection and other testing fields.

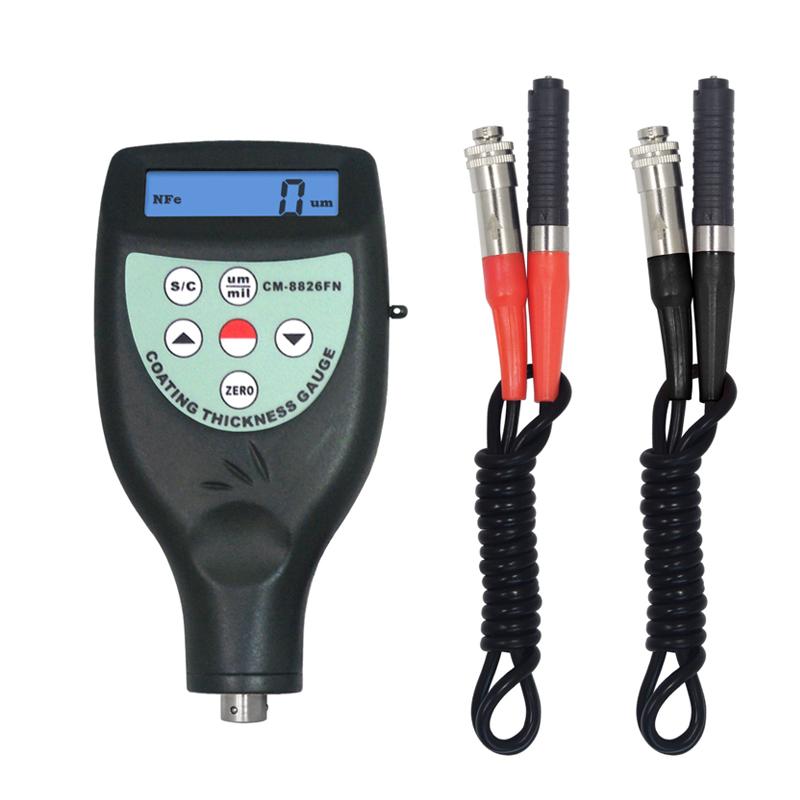

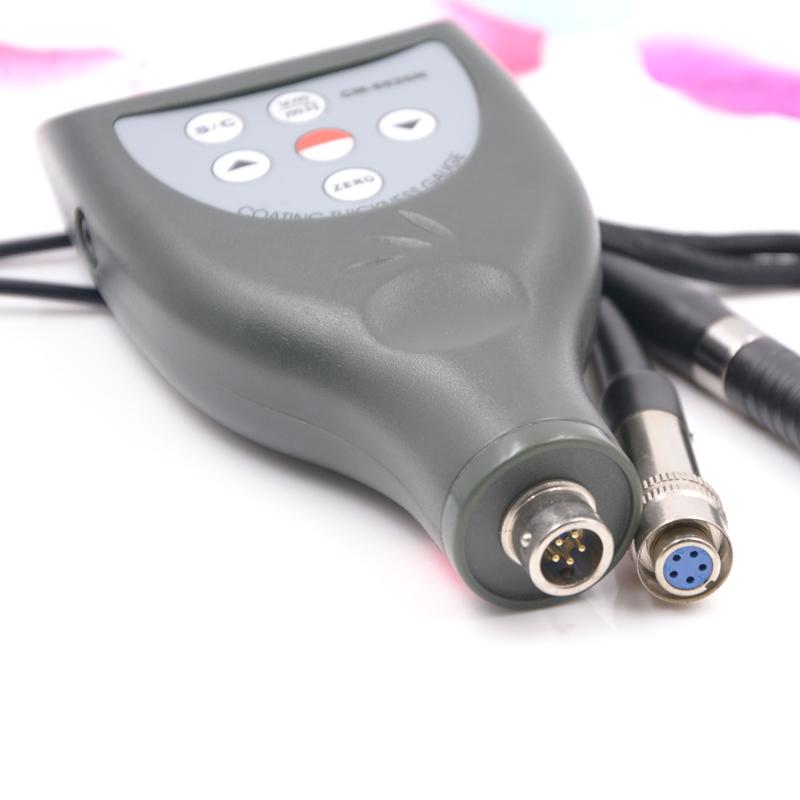

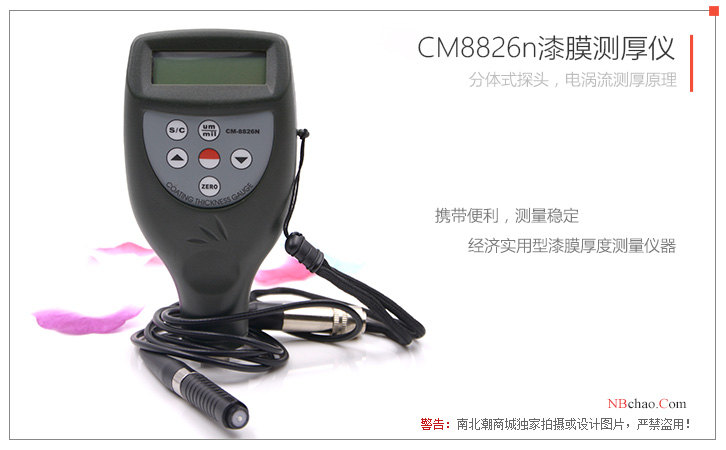

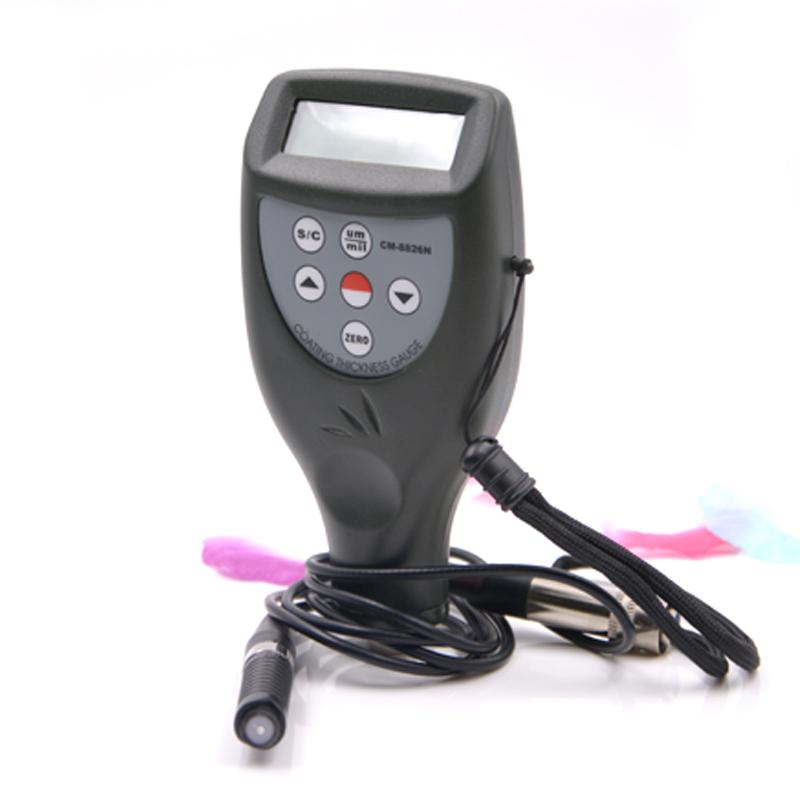

Actual picture of the product

Features and advantages

* Non-ferrous dry paint Film Thickness Gauge.

* Two measurement methods: singlemeasurementmannerand continuous measurementsManner.

* Metric/Imperial unit conversion.

* CM8826n Coating Thickness GaugeIt has functions such as manual shutdown, automatic shutdown and under-Voltage prompt.

* Automatic memory of calibration values and automatic identification of the material of the tested substrate.

* There is a buzzer prompt sound during operation, and the buzzer does not sound when continuous measurement.

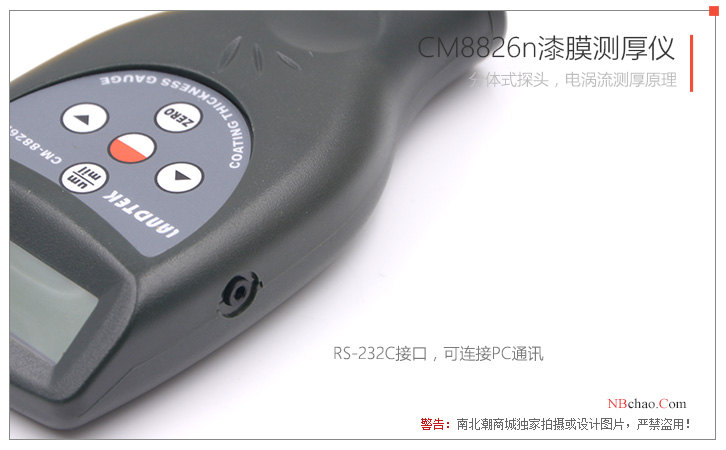

* CM8826n Coating Thickness GaugeWith RS232C interface, it can use RS-232C data connection cable and software to communicate with PC.

* Optional Bluetooth data output options are also available.

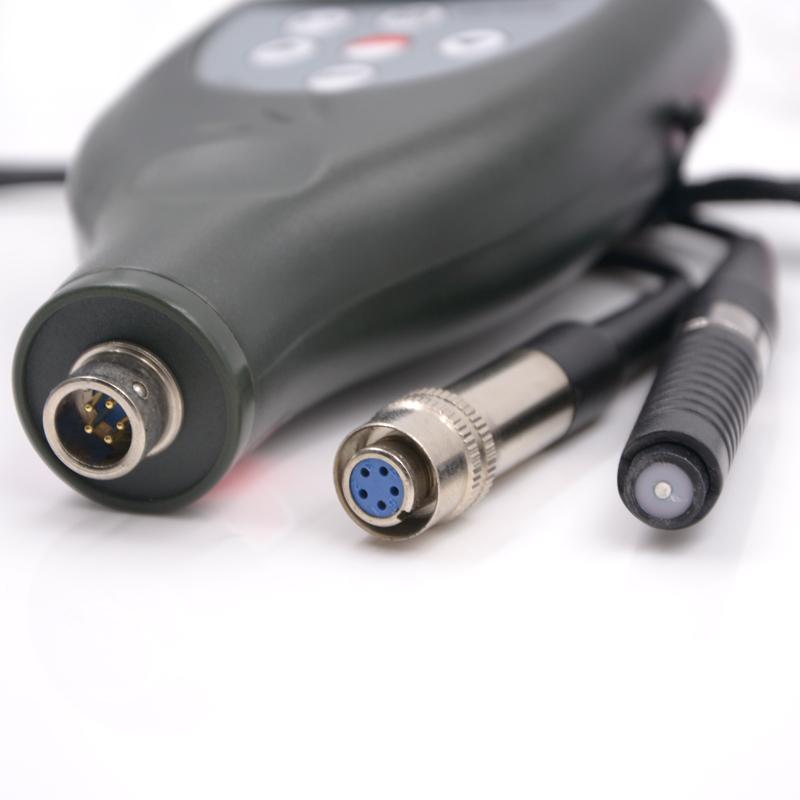

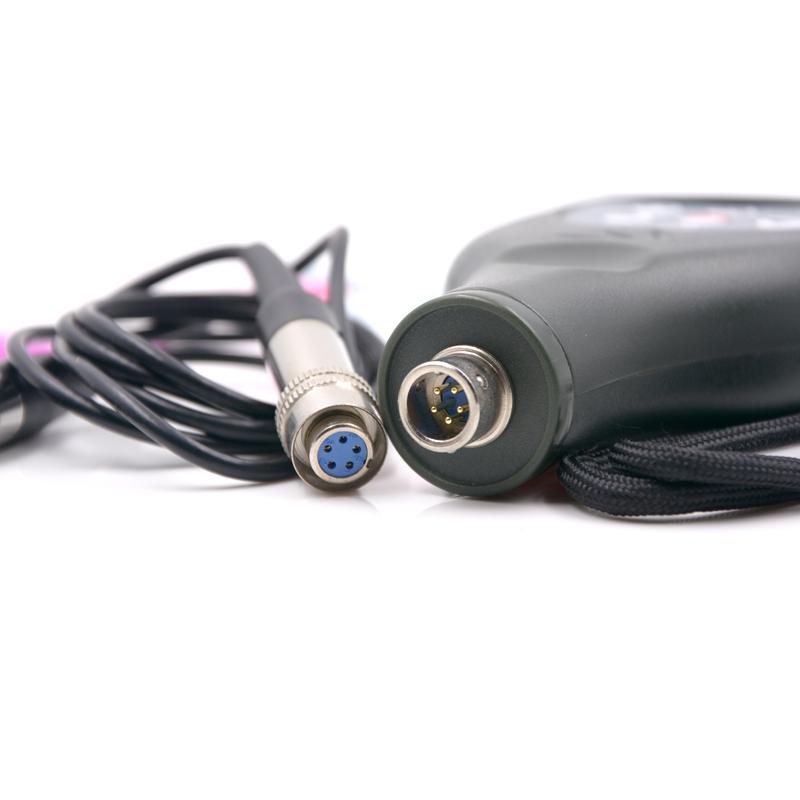

* Split type, provide a variety of probes, more measurement mobility.

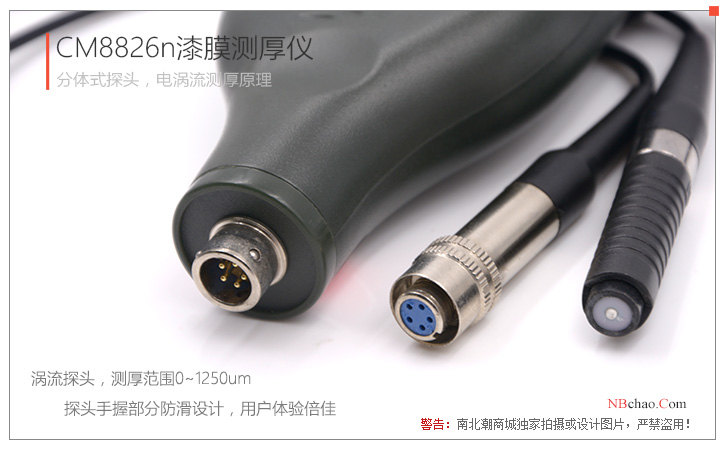

* Spring-loaded sleeve probes with wear-resistant hard metal probes can measure on hard or rough surfaces with constant tightness and stable sampling values.

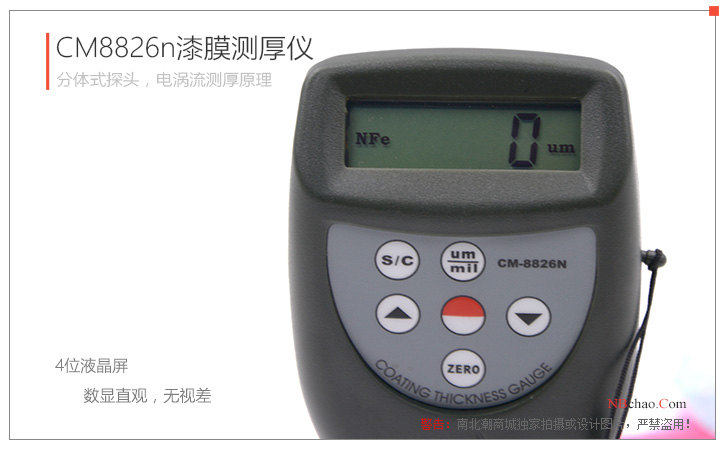

* The display is a 4-digit 10mm LCD screen.

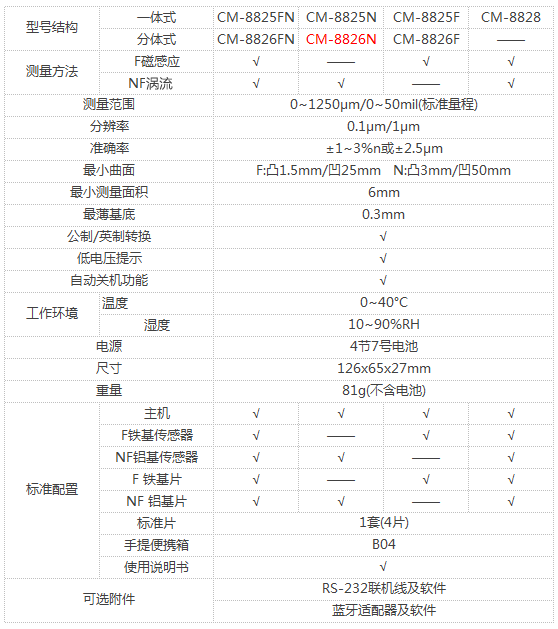

Selection guide

LANDTEK dry paint Film Thickness Gauge selection list

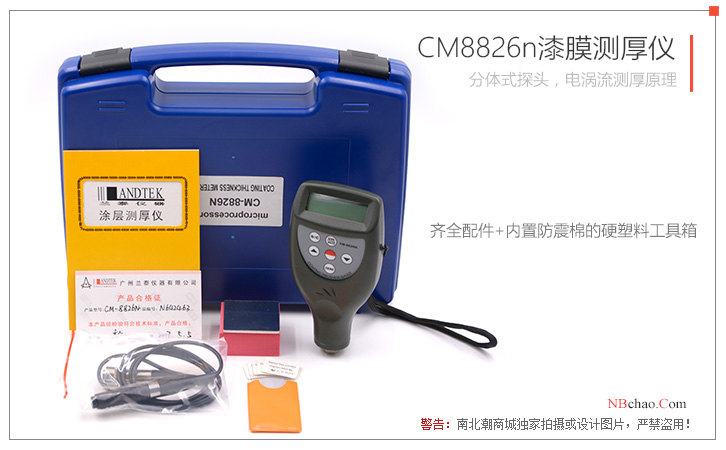

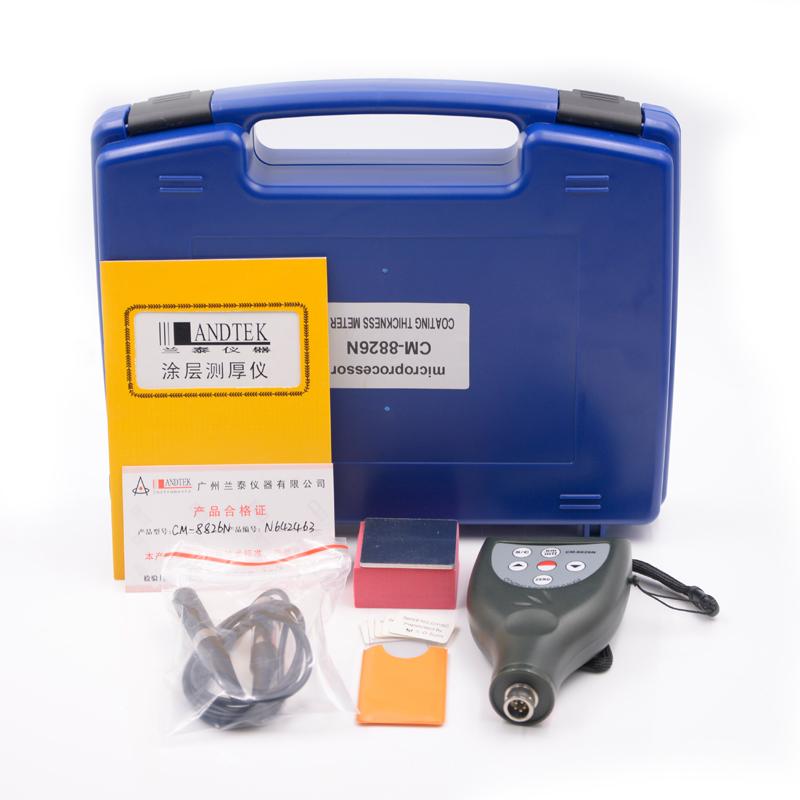

Packing list：Host x1, probe (eddy current) x1, reference block (aluminum base) CTG-BSx1, calibrated diaphragm CTG-CFx4, portable box x1, manual x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
