IWAVE WR18-40 precision Colorimeter 4mm/8mm/40mm three color difference measurement caliber

SE
4Mm/8mm/40mm three-caliber, can measure small objects, patterns, rough surfaces; Delta E < 0.06; USB, RS232 interface; A, D65, F2 three Light sources; 100 sets of storage capacity.
$1050.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT
Similar products

IWAVE WR18-40 ColorimeterSPEC

IWAVE WR18-40 ColorimeterDetails

IWAVE WR18-40 ColorimeterPacking list

SKU
NB027137
Lighting method
8°/d
Sensors
Digital Diode Array
Measuring range
L:0~100
Measurement light source
D65, A, F2 (CWF)
Measurement time
0.5s
Measurement caliber
F4mm / F8mm / F40mm
Sexual repeability
ΔE * from < 0.06
Operating language
Chinese, English
Data Interface
USB2.0(USB-B型)、RS-232(115200bps)
Viewing Angle
CIE 10 °
Color difference formula
ΔE*ab ΔE*LCH
Data storage
100 master standards, 20,000 samples
Power
Lithium battery can be measured 5000 times after being fully charged
display mode
CIELAB CIELCH CIEXYZ Srgb
Operating conditions
0 to 40 ℃ (32 ° F to 104 ° F); Relative Humidity below 85%, no condensation
Storage environment
-20~50℃(-4℉~122℉)
Dimensions
172*80*60mm
Weight
350g
Inter-station difference
ΔE * from < 0.2
Lighting source life
5 years more than 1.60 million measurements
Display
TFT True Color Display 2.8inch @(16:9) Resolution: 400x240
Optional accessories
Powder test box, micro printer
WR18-40
Colorimeter
4Mm/8mm/40mm three-caliber, can measure small objects, patterns, rough surfaces; Delta E < 0.06; USB, RS232 interface; A, D65, F2 three Light sources; 100 sets of storage capacity.

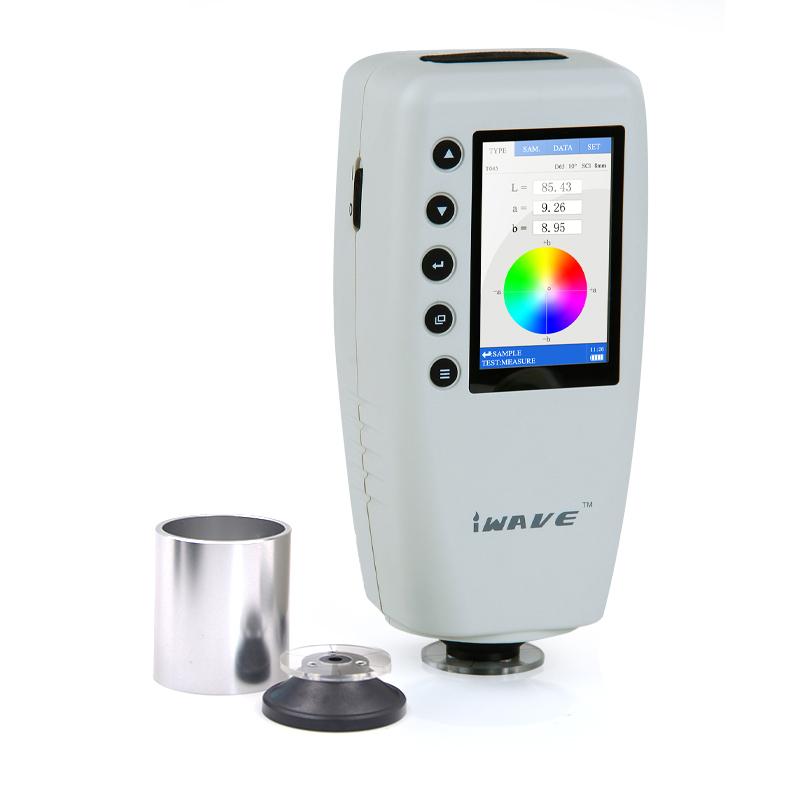

IWAVE WR18-40 precision Colorimeter 4mm/8mm/40mm three color difference measurement caliber Picture

Introduction

IWave WR18-40 precision Colorimeter is a hand-held domestic (CN) precision Colorimeter applicable to multiple ranges. It has three color difference measurement calibers of φ4mm / φ8mm / φ40mm, of which φ40mm measurement caliber is a very large caliber. The WR18-40 precision Colorimeter is small in size, light in weight, easy to carry, and the structure design is beautiful in appearance, and the measurement is stable and accurate. It is more suitable for some mobile measurement occasions. WR18-40 precision Colorimeter has a large storage space, which can store 100 sets of standard samples.


Advantages of IWave WR18-40 Precision Colorimeter

Features of IWave WR18-40 Precision Colorimeter 8mm Measuring Caliber

Advantages of IWave WR18-40 Precision Colorimeter 4mm Measuring Caliber

Advantages of IWave WR18-40 Precision Colorimeter 40mm Measuring Caliber

Applications

IWave WR-18 precision Colorimeter is suitable for color quality control, color difference control, and color difference analysis in industries such as pigments, paints, and inks.

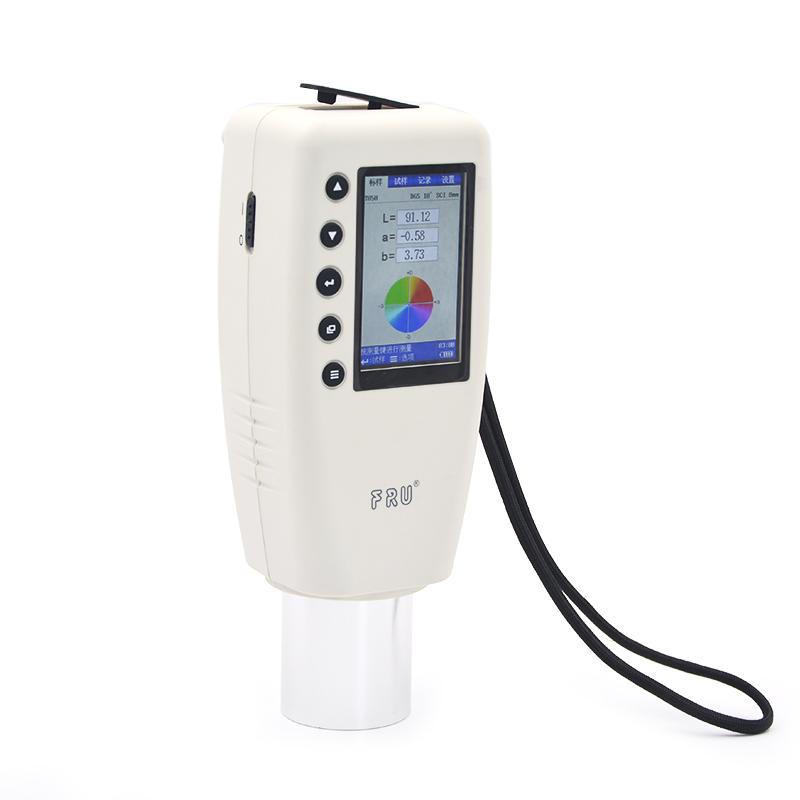

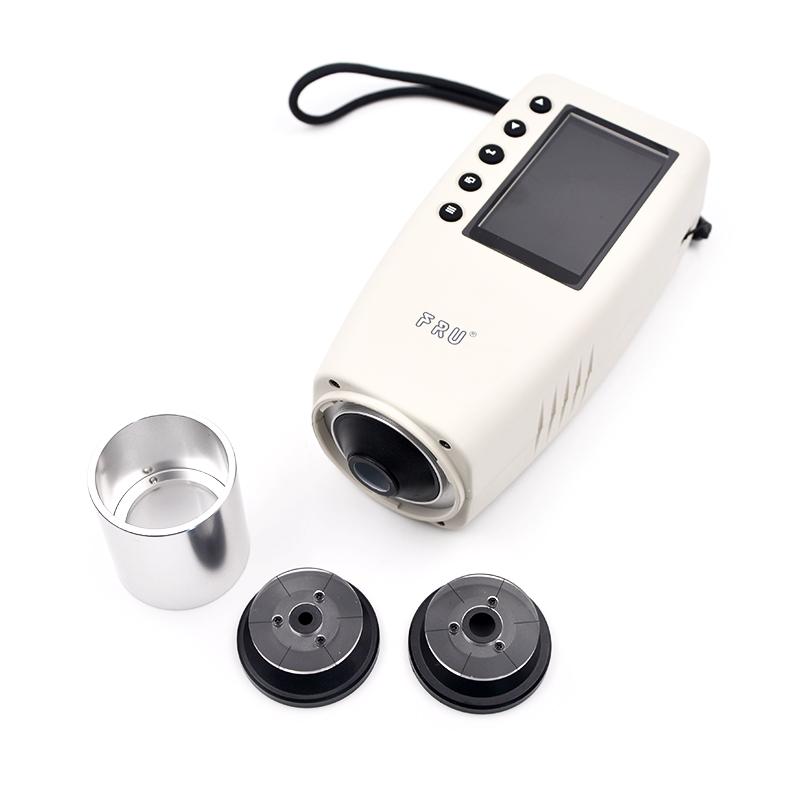

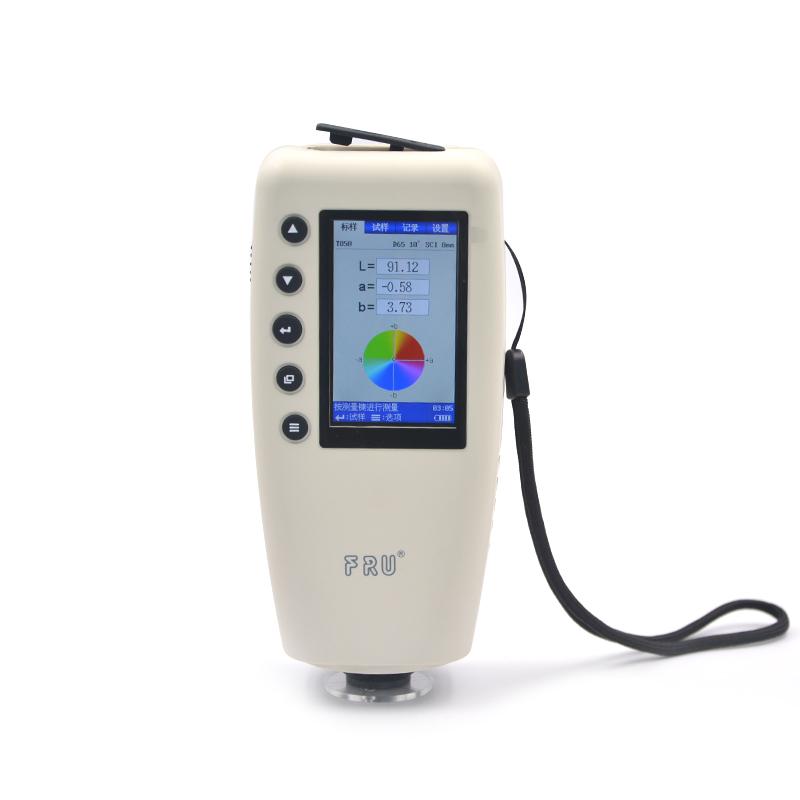

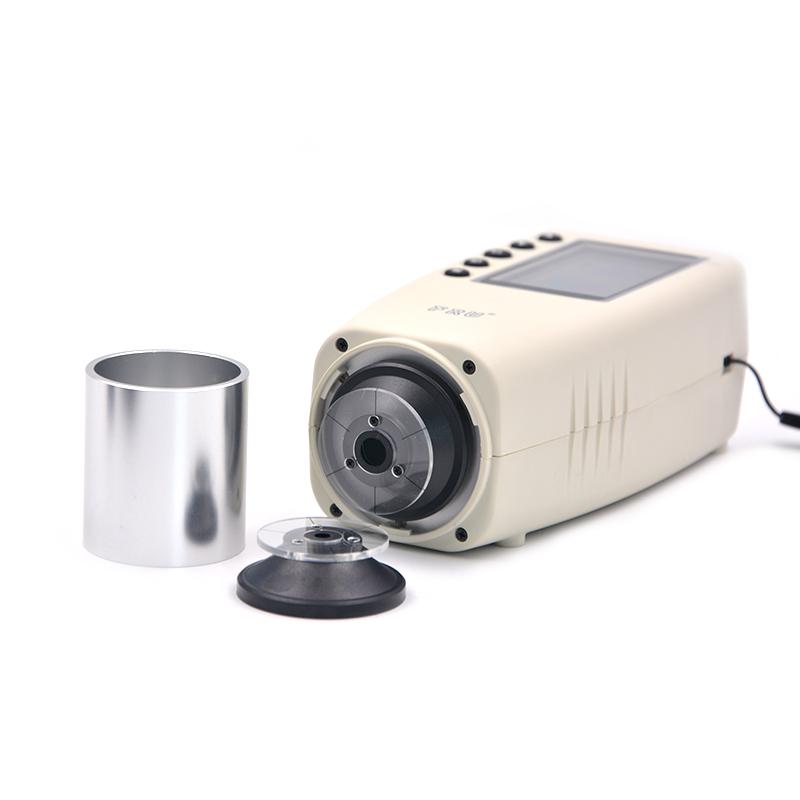

Photo of Colorimeter

WR18-40 Colorimeter display picture  IWave WR-18 Precision Colorimeter Measuring Diagram


IWave WR18-40 precision Colorimeter display screen  IWave WR18-40 Precision Colorimeter Measuring Caliber Details

Application example of IWave WR-18 precision Colorimeter—plastic industry

1. Quality control

The basic function of the WR18-40 precision Colorimeter is to judge whether the product is qualified or not. The total color value measured is the judgment standard, and only those within the standard range are qualified.

2. Color matching or color matching

The measurement results of the domestic (CN) precision Colorimeter can also display the color difference, ΔL *, Δa*, Δb*. WR-18 precision Colorimeter can display color deviation, such as reddish or greenish, yellowish or bluish, light or dark. Color matching can be modified according to the displayed results.


FAQ
QHow to deal with the measurement difficulties caused by the reflection of the sample surface?
A Measurement angles can be adjusted or appropriate extinction devices or aids can be used to reduce reflection and ensure accurate measurement of color difference values.
QIs there a 4,8 caliber option for the WR18-40?
A WR18-40 contains 3 calibers.
QIs there a color difference meter that can test meat products?
A Detection with a large diameter of 40mm
QDoes the WR18-40 precision color reader have software?
A Hello, with the "Color Analysis System" CD.
QWhat is the test light source for the WR18-40 color reader?
A Hello, the test light source is D65, A, F2 (CWF).
QDoes this color reader come standard with a printer?
A Hello, this color reader can be connected to the printer, but the printer needs to be purchased separately, and there is no standard one.
QDoes this color difference meter comply with GB/T7975 standard?
A This color difference meter is suitable for GB/T7975. Please consult customer service for detailed application definition.
QWR18-40 This color reader has several measurement calibers?
A Hello, Weifu's WR18-40 precision color reader has three measurement diameters of φ 4mm/8mm/40mm, which can be applied to different test objects.
QWant to choose an instrument that can detect the color difference of this rough paper, which one is suitable?
A Hello, Weifu WR18-40 color reader is equipped with three different calibers, one of which is 40mm diameter, specially designed to test the color difference of this textured sample.
QWhat is the measurement range of this Weifu color reader?
A Hello, the measurement range of WR18-40 color reader is L: 0~ 100.
