RDS 21 #1/4 "experimental scraping rod film thickness 48.0μm rod diameter 6.35mm

SE
Using formed molding technology, the rod diameter is 6.35mm, and the film can be 53.3 μm, which has the characteristics of continuous wire and easy cleaning.
$155.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

RDS 21# 1/4“ Applicator rod 1/4 "SPEC

RDS 21# 1/4“ Applicator rod 1/4 "Details

RDS 21# 1/4“ Applicator rod 1/4 "Packing list

SKU
NB027157
Production process
formed
WFT
48.0μm
diameter
6.35mm
Total length
400mm
application width
300mm
Grip Width
50+50mm
material
stainless steel
21# 1/4“
Applicator rod 1/4 "
Using formed molding technology, the rod diameter is 6.35mm, and the film can be 53.3 μm, which has the characteristics of continuous wire and easy cleaning.
RDS 21 #1/4 "experimental scraping rod film thickness 48.0μm rod diameter 6.35mm Picture

Product description

RDS 21# experimental scraping rod is a coating rod with a coating film thickness of 48.0μm and a coating width of 30cm. It is divided into two processes: wire winding type and forming type. Cloth rod, but its coating scale accuracy is higher than other extrusion coating rods, up to 0.1 micron, suitable for those industry users who require high precision, and it is made of high-grade stainless steel, which is wear-resistant and Corrosion-resistant properties, especially suitable for high-viscosity or high-wear experiments. This RDS21 rod is a molded scraping rod.

RDS coating Rods Figure 1

RDS coating Rods Figure 2

RDS coating Rods Figure 3

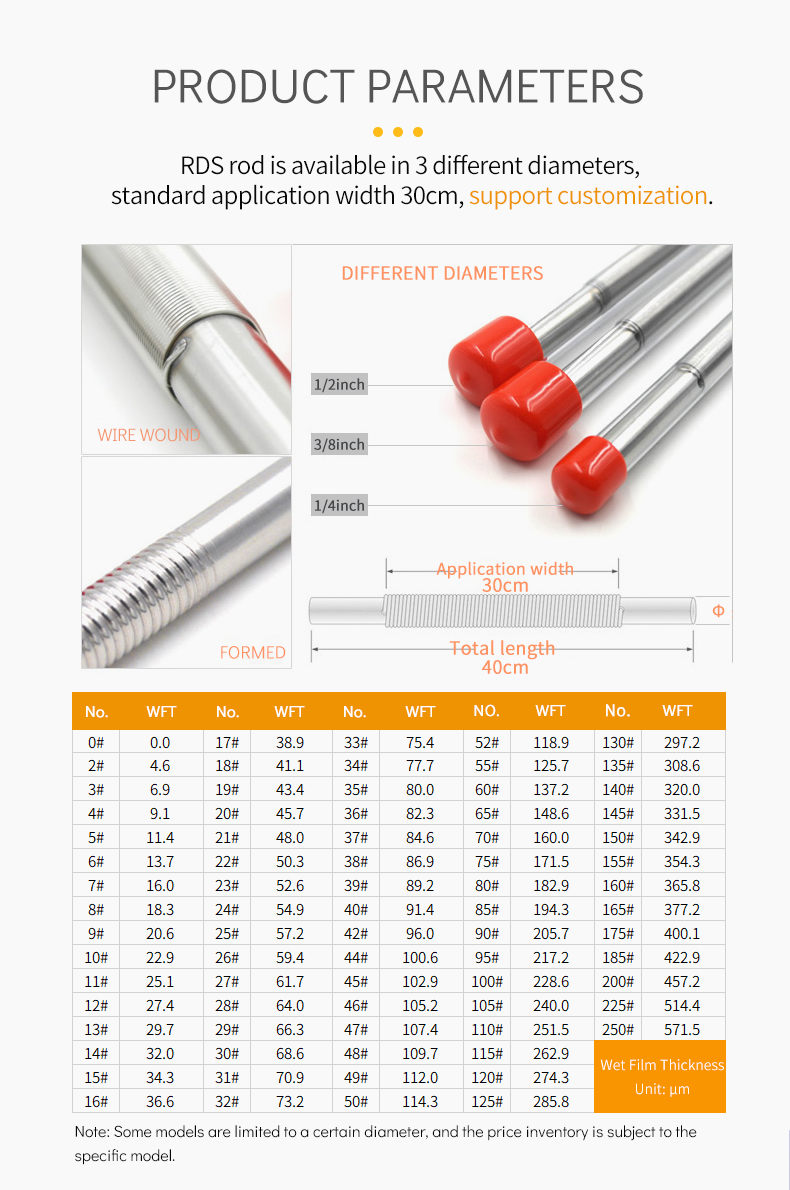

RDS coating Rods Figure 4

RDS coating Rods Figure 5

RDS coating Rods Figure 6

RDS coating Rods Figure 7

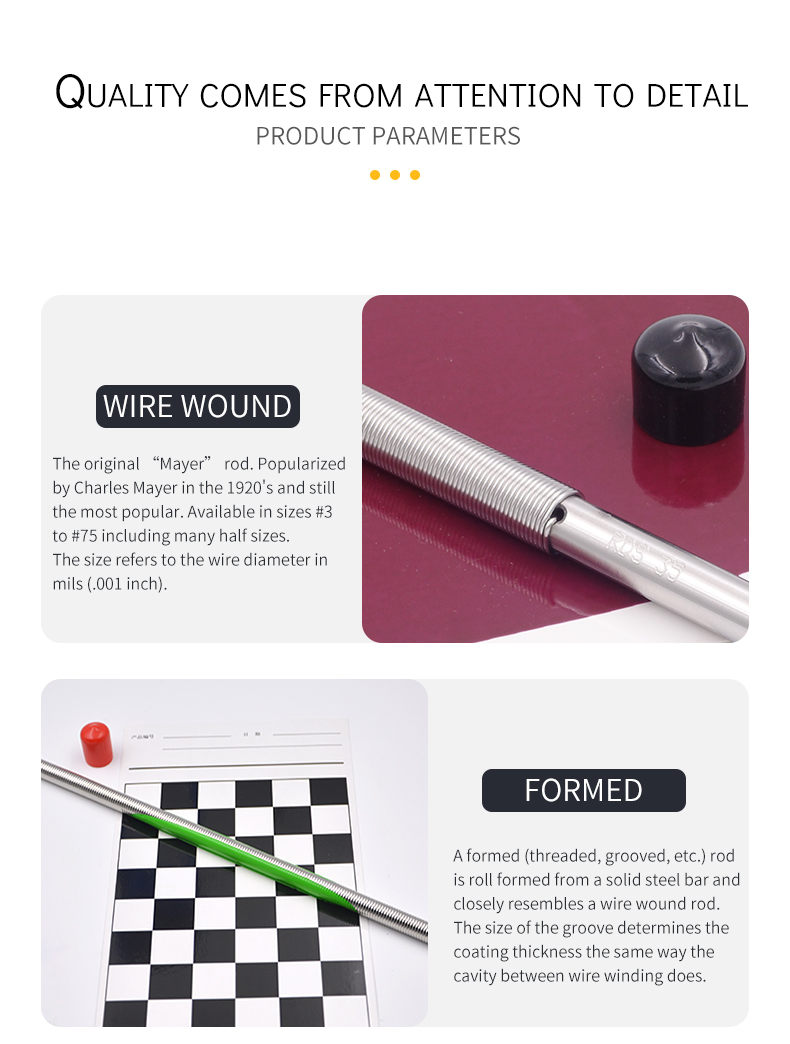

RDS coating Rods Figure 8

RDS coating Rods Figure 9

RDS coating Rods Figure 10


FAQ
QIs there any ASTMD823 standard extrusion rod?
A This RDS extrusion rod is fine!
QDo you support customization? Such as wet film thickness and length?
A Spreader rod length and main rod diameter support customization, but wet film thickness RDS has provided dozens of specifications covering more than 200 microns, and in principle does not accept customization.
