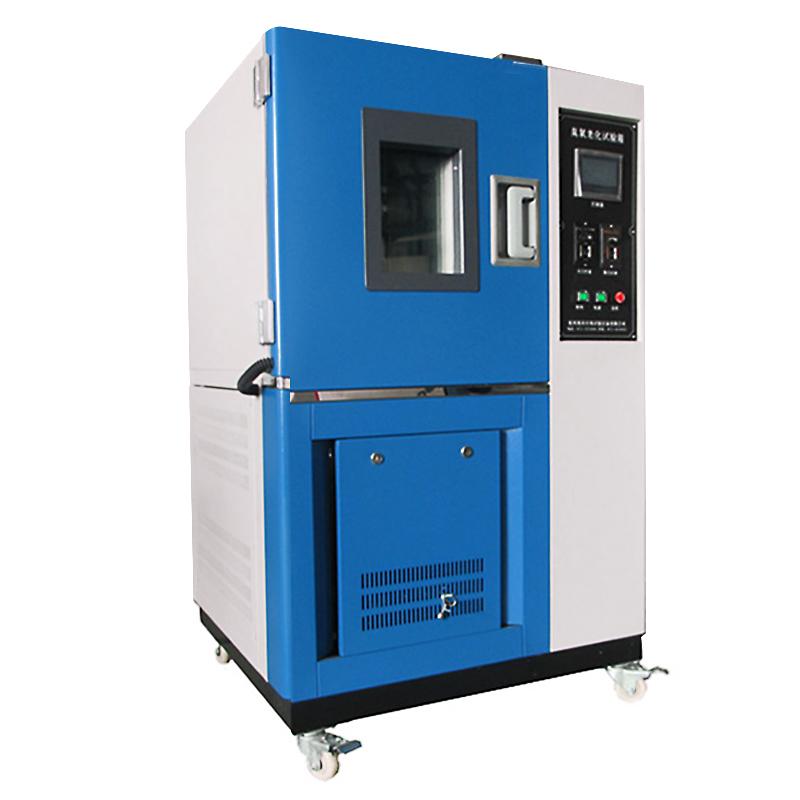

HZAOC QL-50 Ozone Aging Test Chamber

QL-50

Ozone aging Test Chamber

Applications

The Ozone Aging Test Chamber is used for cracking aging test of non-metallic materials and rubber products when exposed to a closed environment containing a certain ozone concentration and constant temperature.

Cabinet structure

1. The box body is processed and formed by CNC machine tools, with beautiful and generous appearance, no reaction door handle, and easy to operate.

2. The inner tank of the box is made of imported stainless steel plate, and the outer tank of the box is sprayed with A3 steel plate, which increases the appearance texture and cleanliness.

3. Adopt ozone concentration controller and sensor

Control system

1. Temperature and humidity control system: The electrical control system is composed of true color LCD touch screen controller and Schneider and Honeywell electrical components.

2. The controller adopts full Chinese menu operation mode.　　

3. Minimum display resolution: temperature (0.1°C), humidity (0.1%), ozone concentration (0.1pphm).

4. Mode of operation: fixed value and program operation.

5. Control mode: continuous PID control.

6. There is an information port to connect with a computer.

7. Power-off recovery settings, including: program termination after power-off, and continuous operation of the program from the breakpoint after power-off.

8. Real-time display of program running time, number of segments, remaining time, number of repetitions, can display test data,    Including set temperature, measured temperature, total running time, interval running time, remaining time of period, heating state,Calendar time, etc., temperature can be directly displayed digitally,

9. When setting up the program, you can write the name of the program to facilitate searching.

10. In the event of a fault, the LCD touch screen of the controller can display the fault number that occurs, and the user can easily root itFind the cause of the fault by the fault number.

11. It has a variety of alarm function options, including: absolute value alarm, deviation alarm, etc.

12. Ozone concentration: independent ozone concentration controller is adopted, which is stable and does not drift for a long time.

Heating system

1. Adopt far-infrared nickel alloy high-speed heating electric heater;

2. The high temperature is completely independent system, which does not affect the low temperature test, high temperature test and alternating damp heat;

3. The output power of temperature and humidity control is calculated by microcomputer to achieve the effect of high-precision temperature and humidity control;

Humidification system

1. External boiler steam humidifier;

2. Automatic water level compensation, water shortage alarm system;

3. Stainless steel high-speed heating electric heating pipe;

4. The degree control adopts P.I.D + S.S.R, and the system is coordinated with the same channel.

Refrigeration control system

1. Compressor: Fully enclosed France Taikang

2. Refrigeration method: single machine cooling

3. Condensation method: forced air cooling cooling

4. Refrigerant: environmentally friendly refrigerant

5. The system pipelines are ventilated and pressurized for 48H leak detection test.

6. The heating and cooling system is completely independent

7. Spiral refrigerant copper tube

8. Filter driers, solenoid valves, and liquid storage cylinders are all imported spare parts

9. Dehumidification system: Adopt evaporator coil dew point temperature laminar flow contact dehumidification method

Enforce the standard

1.GB/T7762-2003

2.GB/T3642-92

Packing list：host x1, sample holder x1, silicone plug x1, warranty card x1, manual x1, certificate x1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
