FANGRUIs ULR Ultra Low Viscosity Adapter, Enhanced, Optional

SE
FANGRUI ULR Ultra Low Viscosity Adapter is used for Viscometer matching, which can be applied to the measurement of low Viscosity objects. It consists of cylindrical rotor and tubular sleeve.
$231.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con OI

FangRui ULR Ultra Low Viscosity AdapterSPEC

FangRui ULR Ultra Low Viscosity AdapterDetails

FangRui ULR Ultra Low Viscosity AdapterPacking list

SKU
NB027208
Capacity
18~20ml
material
stainless steel
Minimum detection limit
1cp
Allowable Operating Temperature
-40~250℃
ULR
Ultra Low Viscosity Adapter

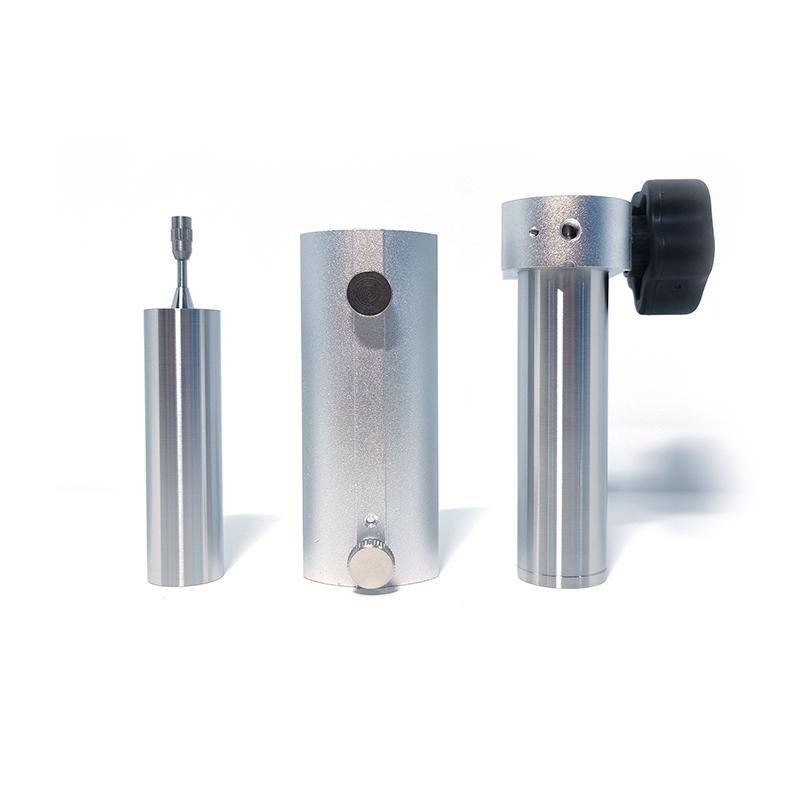

FANGRUIs ULR Ultra Low Viscosity Adapter, Enhanced, Optional Picture

Introduction

The Enhanced Ultra Low Viscosity Adapter ULR is used in conjunction with the Foray Viscometer for accurate and repeatable measurements of low viscosity objects. Both Newtonian and non-Newtonian fluids are applicable. The Ultra Low Viscosity Adapter ULR consists of a precision cylindrical rotor and a precision tubular sleeve (sample cup). The rheologically rigorous cylindrical structure design allows it to perform accurate viscosity measurement and shear rate determination.

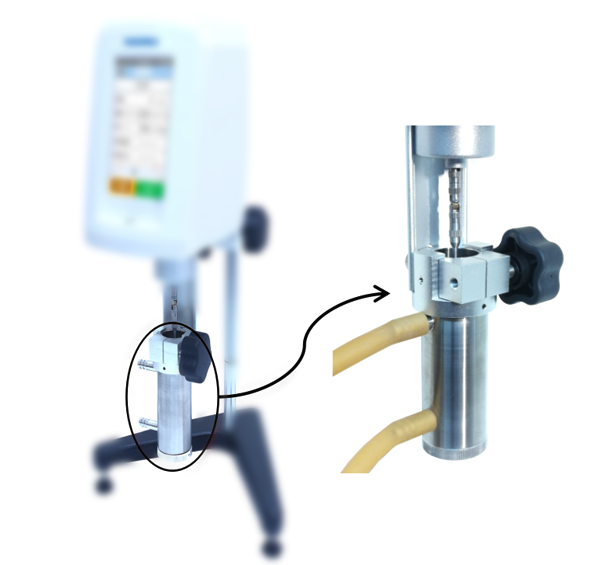

FANGRUI ULR ultra-low viscosity adapter details

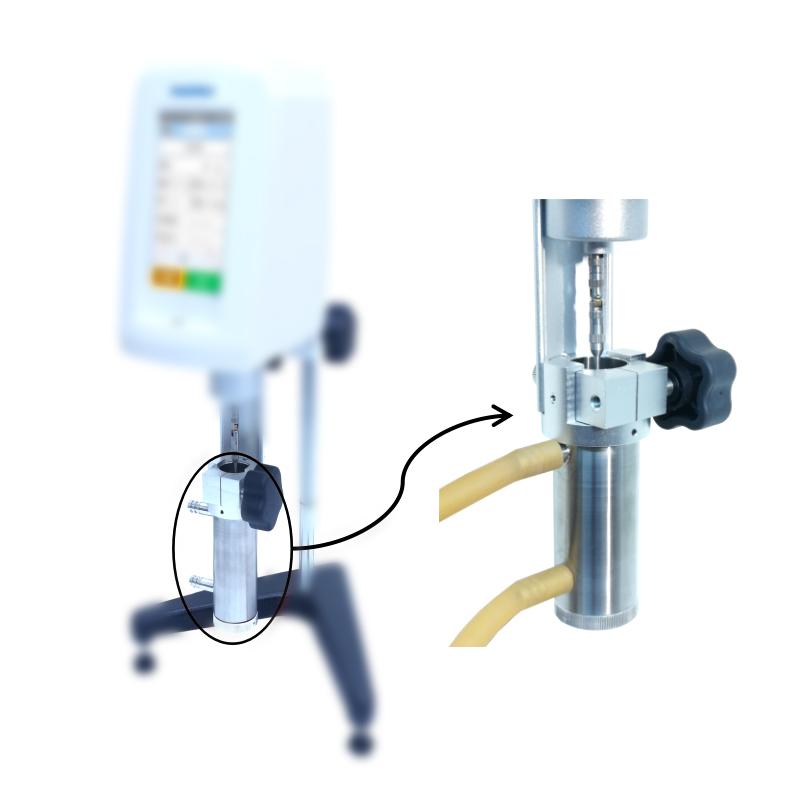

Adapter detail drawing

Ultra Low Viscosity Adapter Features

● Designed for low viscosity fluid measurement

● Jacketed and non-jacketed specifications are available

● The lowest detection limit is 1cP, the range depends on the type of viscometer used

● Accurate measurement at specified shear rates for detailed product analysis

● The stainless steel material is easy to clean and can withstand the working temperature range of -40℃－250℃

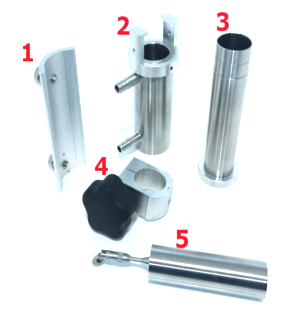

● Sample volume 18－20mL Structural Fittings for Ultra Low Viscosity Adapters

Structure of Ultra Low Viscosity Adapter

1. Mounting bracket

2. Water bath jacket (ULR-PLUS included)

3. Sample cup

4. Sample cup holder with knob

5.0 rotor






Application Scenario

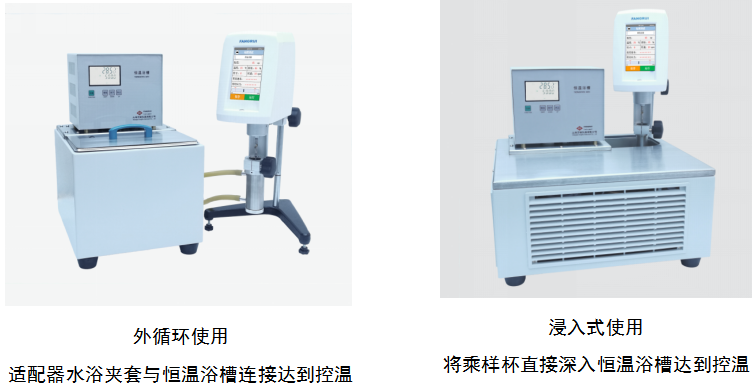

Application scenarios of FANGRUI ULR ultra-low viscosity adapter

FAQ
QWith an ultra-low viscosity adapter with LVDV-2T, can the viscosity be detected up to 1cP?
A OK
QULR-Plus and ULR, these two ultra-low viscosity adapters, is there any difference?
A ULR-Plus is a jacket type, its difference is not the difference in the annual viscosity measurement range, the difference is that if there is this cycle jacket, it can be easily connected to your existing constant temperature bath to achieve temperature control, If there is no cycle jacket, then you need to buy the manufacturer's special constant temperature bath to control the temperature, or directly at room temperature measurement, can not control the temperature.
QWhat is the diameter of this ultra-low viscosity adapter to connect to thermostatic? I'll see if my own Thermostatic bath can be equipped.
A A pipe with an inner diameter of 8mm is enough, and the diameter of the upper and lower circulation holes of the adapter is 10mm. It can be connected externally.
QIt can be directly connected to the external circulation thermostatic machine for use, right?
A Sure
QHelp me find an ultra-low viscosity adapter that meets the SN/T2903 standard
A This ULR ultra-low viscosity adapter will do!
