FANGRUIs ULR-Plus Ultra Low Viscosity Adapter, Enhanced, with Recycling Jacket, Optional

SE
The FANGRUI ULR-Plus Ultra Low Viscosity Adapter is an enhanced adapter with a circulating jacket for the measurement of low Viscosity objects, consisting of a cylindrical rotor and a tubular sleeve.
$340.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT

FangRui ULR-Plus Ultra Low Viscosity AdapterSPEC

FangRui ULR-Plus Ultra Low Viscosity AdapterDetails

FangRui ULR-Plus Ultra Low Viscosity AdapterPacking list

SKU
NB027209
Capacity
18~20ml
material
stainless steel
Minimum detection limit
1cp
Allowable Operating Temperature
-40~250℃
Accessories
With circulation jacket
ULR-Plus
Ultra Low Viscosity Adapter
FANGRUIs ULR-Plus Ultra Low Viscosity Adapter, Enhanced, with Recycling Jacket, Optional Picture

Introduction

The enhanced Ultra-Low Viscosity Adapter ULR-plus is used together with the Fountain Viscometer for accurate and repeatable measurement of low-viscosity objects. Both Newtonian and non-Newtonian fluids are applicable. The Ultra Low Viscosity Adapter ULR consists of a precision cylindrical rotor and a precision tubular sleeve (sample cup). The rheologically rigorous cylindrical structure design allows it to perform accurate viscosity measurement and shear rate determination.

FANGRUI ULR ultra-low viscosity adapter details

Adapter detail drawing

Ultra Low Viscosity Adapter Features

● Designed for low viscosity fluid measurement

● Jacketed and non-jacketed specifications are available

● The lowest detection limit is 1cP, the range depends on the type of viscometer used

● Accurate measurement at specified shear rates for detailed product analysis

● The stainless steel material is easy to clean and can withstand the working temperature range of -40℃－250℃

● Sample volume 18－20mL Structural Fittings for Ultra Low Viscosity Adapters

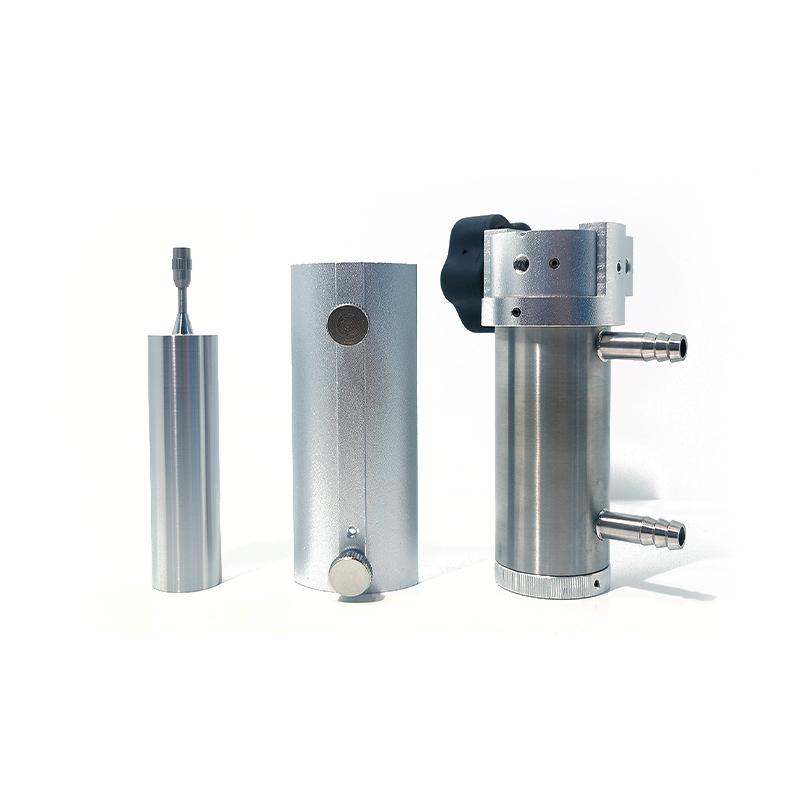

Structure of Ultra Low Viscosity Adapter

1. Mounting bracket

2. Water bath jacket (ULR-PLUS included)

3. Sample cup

4. Sample cup holder with knob

5.0 rotor

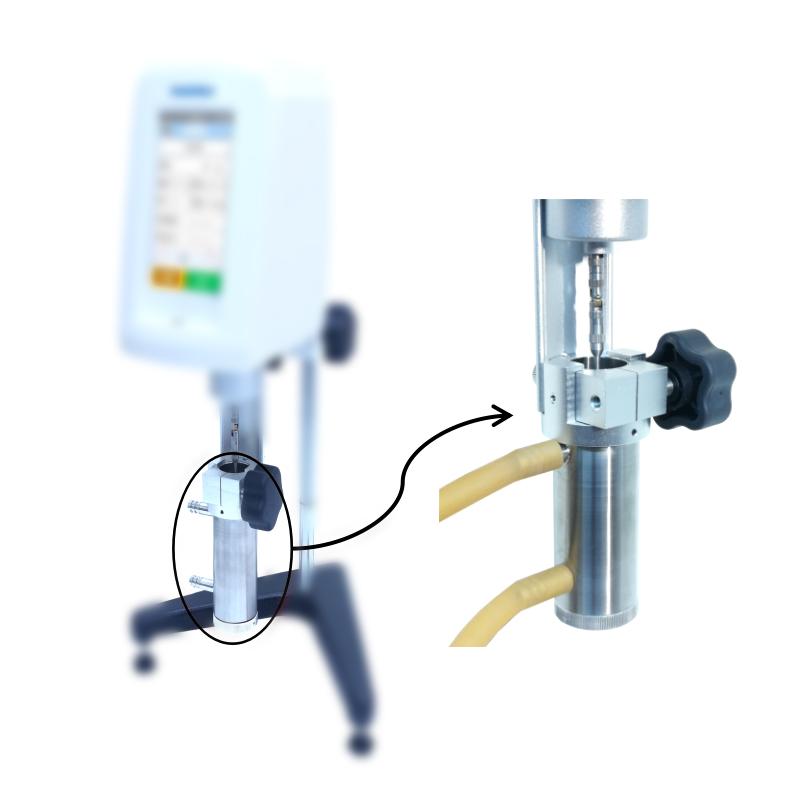

Application Scenario

Application scenarios of FANGRUI ULR ultra-low viscosity adapter

FAQ
QIf you don't need temperature control and don't buy a Thermostatic bath, you don't need to buy a jacket type, right?
A Yes!
QULR-Plus and ULR, these two ultra-low viscosity adapters, is there any difference?
A ULR-Plus is a jacket type, its difference is not the difference in the annual viscosity measurement range, the difference is that if there is this cycle jacket, it can be easily connected to your existing constant temperature bath to achieve temperature control, If there is no cycle jacket, then you need to buy the manufacturer's special constant temperature bath to control the temperature, or directly at room temperature measurement, can not control the temperature.
QULR-Plus and ULR, these two ultra-low viscosity adapters, is there any difference?
A ULR-Plus is a jacket type, with this circulation jacket, you can easily connect with the existing thermostatic bath to achieve temperature control, if there is no circulation jacket, you need to buy a special thermostatic bath provided by the manufacturer to control the temperature, or directly at room temperature measurement can not control the temperature.
QCan all ultra-low viscosity adapters be used for testing in the GB/T22427.7 standard?
A Not necessarily, but this ULR-Plus ultra-low viscosity adapter can be considered.
