HZAOC SC-500 Dust Test Chamber

The liner size of the HZAOC SC-500 Dust Test Chamber is 800 × 800 × 800 mm, the liner material is SUS stainless steel plate, the shell material is A3 steel plate sprayed, and the controller is a new generation of Xinjie PLC integrated machine. The test dust can pass through the drying tale powder of the square hole sieve with a sieve hole of 75 µm and a Wire diameter of 50 µm.
Model：
Certificate
Contact
Details SPEC

hzaoc SC-500 Dust Test ChamberSPEC

hzaoc SC-500 Dust Test ChamberDetails

hzaoc SC-500 Dust Test ChamberPacking list

SKU
NB027242
Liner size
800*800*800mm
Liner material
SUS stainless steel plate
Enclosure Material
A3 steel plate spraying
Controller
Xinjie PLC all-in-one machine
test dust
A drying tale powder that can pass through a square hole sieve with a sieve of 75 µm and a Wire diameter of 50 µm.
Vacuum system
(Optional, instructions when ordering): Equipped with Air Filter, Vacuum Pressure Gauge, Flow rate meter, connecting pipe (vacuum pump customer self-matching)
Nominal spacing between lines
50mm
Nominal spacing between lines
75mm
meet the standard
GB/T4208-93、GB/T2423.37-89
SC-500
Dust Test Chamber

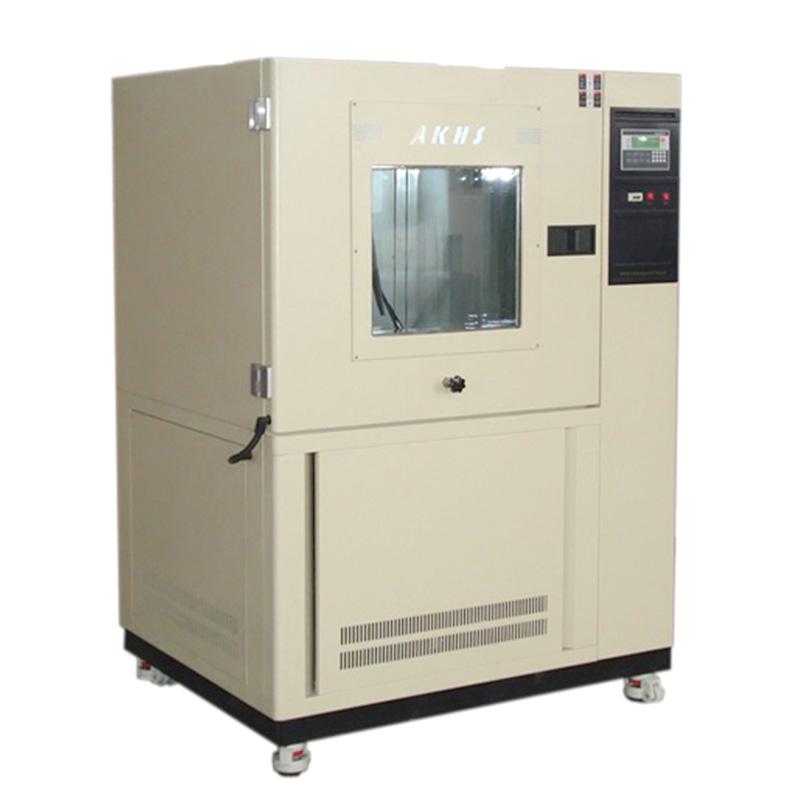

HZAOC SC-500 Dust Test Chamber Picture

Applications

It mainly conducts dustproof tests on parts of electrical, electronic, automobile, motorcycle and other products.

Design Brief

1. Introduction to structural design

a. Dust blowing: Large-diameter stainless steel centrifugal wind wheel plus dust stirring and drying mechanism are used to effectively inhale dust.

b. Vibration: Adopt micro eccentric wheel motor, which is more effective in shaking dust.

c. Dust cleaning: The bottom of the box funnel is equipped with a dust cleaning outlet, which is convenient for dust cleaning and replacement.

d. Observation window: a bright and clear large observation window and equipped with a light, a wider field of view is convenient for observing the dust concentration and dust amount in the box.

e. Three-dimensional control panel: The matte black three-dimensional control panel is beautiful and generous, the man-machine interface and the layout of each control switch are eye-catching, and the operation is simple and easy to use.

2. Introduction to control design

a. Controller: Adopt a new generation of Xinjie PLC all-in-one machine (touch key man-machine interface + PLC) This PLC is a new generation of high-integration controller of Xinjie Company, which integrates man-machine interface and PLC, and the system is stable and reliable. The backlight LCD display mode can display various information at the same time, and the man-machine dialogue input mode is adopted, and all operations only need to be operated in the order indicated on the display screen.

b. Control interface: The configuration control screen of the man-machine interface is concise and clear, and the operation is simple.

c. Dust drying: The equipment is equipped with a dust drying heating device, and a heating button is provided in the controller control screen, when the dust is found to be a little wet in the test, the heating button in the control screen can be opened to start the dust heating device to dry the dust. When the dust is dry, the button can be turned off. The drying process will not affect the test process, and the dust concentration in the Test Chamber can be effectively guaranteed. Make sure the test data is correct.

d. Safety protection: It is equipped with anti-overload protection of power components, phase loss and phase sequence protection of equipment, and the controller has an alarm screen prompt when the protection action is made.

Enforce the standard

This equipment is manufactured in strict accordance with the technical specifications of the national environmental test equipment, and effectively simulates the adaptability test of the sand and dust climate environment to the product. The specific implementation standards and national environmental test method standards are as follows.

1. GB/T 2423.37-06 Basic environmental test procedures for electrical and electronic products----- sand and dust test methods

2. GB4208-08 IP5, IP6 dustproof test

3. GB2423.37-89La shell is dustproof

4. GB7001-86 lamp shell protection

5、GB10485-89
