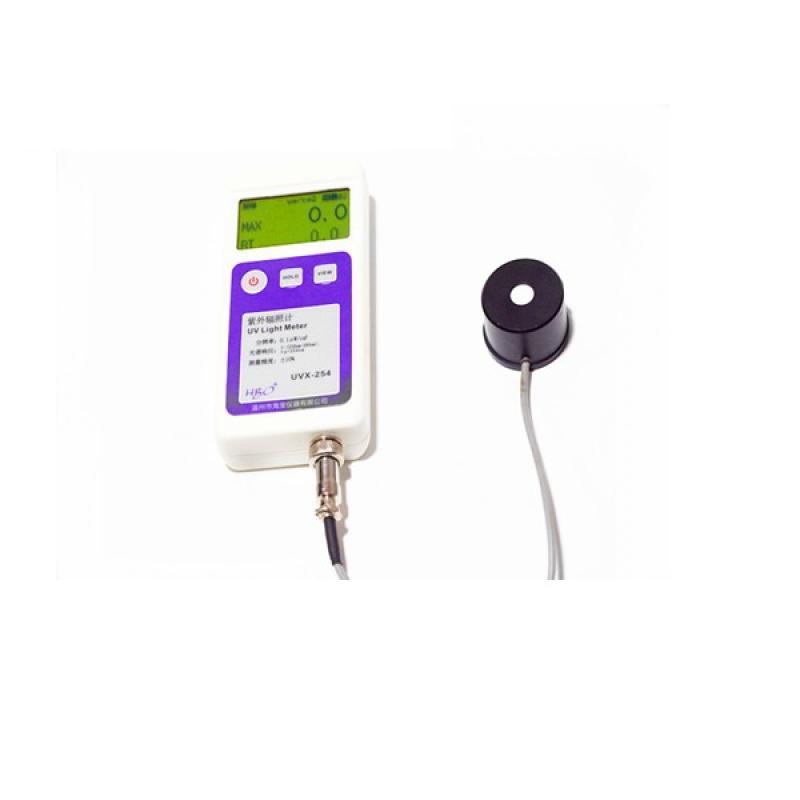

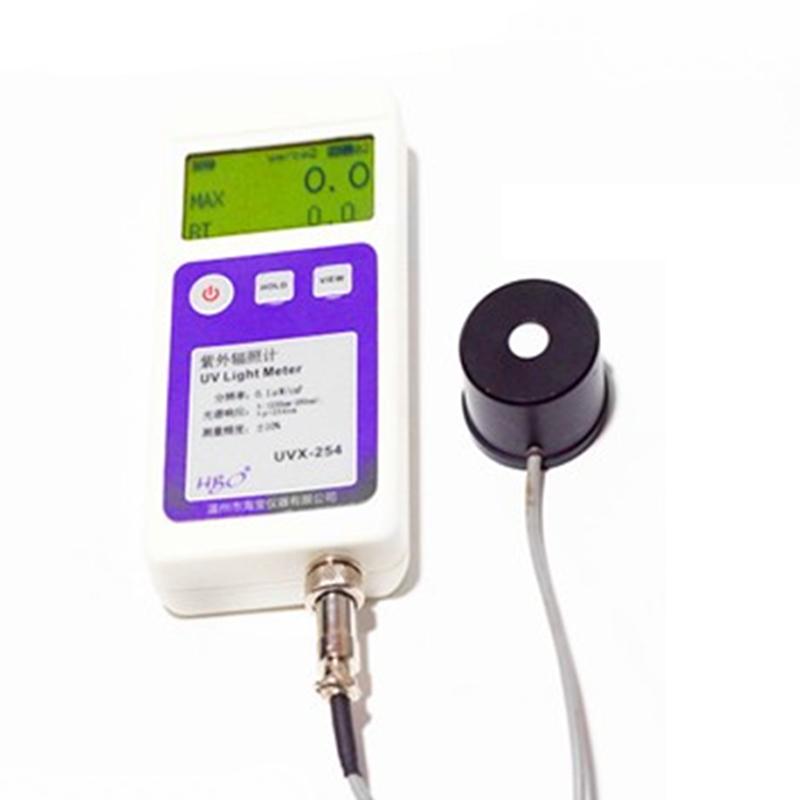

UV Irradiometer UVX-254 Hypertherm

UVX-254

UV Irradiometer

Light spectrum Response lambda (230nm-280nm) lambda p = 254nm, Dimension 130 * 70 * 28mm, resolution 0.1uw/cm, Measurement accuracy +/- 10% 2, Measurement range 0-40000uw/cm, probe line length 1 meter.

product description

Features of UVX-254 Ultraviolet Radiation Meter: Comply with the standard, the standard hook is easy to use, mainly used for disinfection lamp inspection in hospitals, blood stations, disease control centers, beauty and other industries

The UVC band of UVX-254 ultraviolet radiatIon Meter is also called short-wave germicidal ultraviolet rays. The ultraviolet germicidal lamp emits UVC short-wave ultraviolet rays. The ultraviolet radiatIon Meter is professionally used to measure the UVC ultraviolet radiation intensity, that is, the UVC ultraviolet radiation per unit area. power. The UVC instrument is suitable for ultraviolet irradiance measurement in the fields of sterilization, photolithography, ultraviolet light source, water treatment, medical treatment, education and so on.

Measurement Notes

1. The receiving window of the instrument probe is aimed at the ultraviolet light source, and the power density of the ultraviolet radiation energy at the current test point can be obtained, and the maximum value (NAX) and the current value (RT) can be displayed at the same time

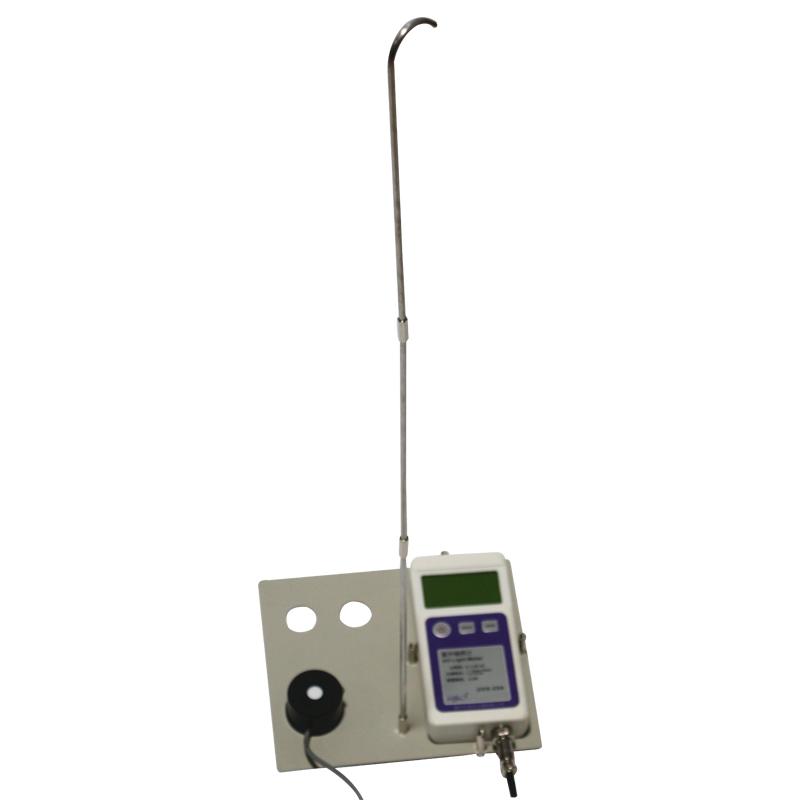

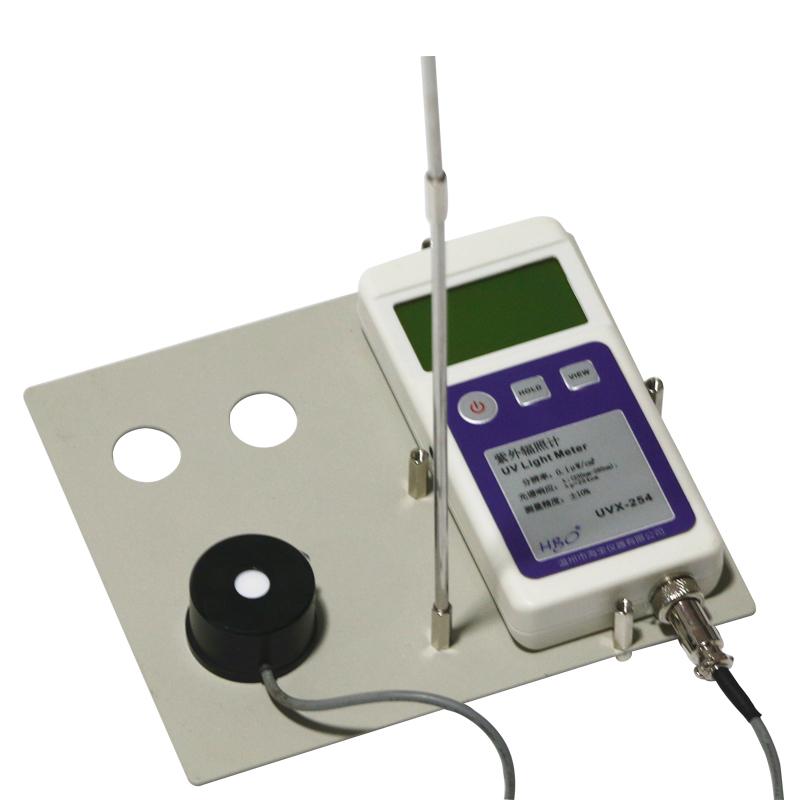

2. There is a magnet on the back of the instrument probe, which can be adsorbed on the iron plate for easy fixing

3. Please turn off the key when not in use

4. Avoid contact with corrosive Wuping, the principle is high humidity environment

5. After shutting down, please put it in a special package and keep it properly

6. Inspection cycle: the recommended inspection period is 1 year

7. Store the probe in a lockbox/plastic bag with desiccant

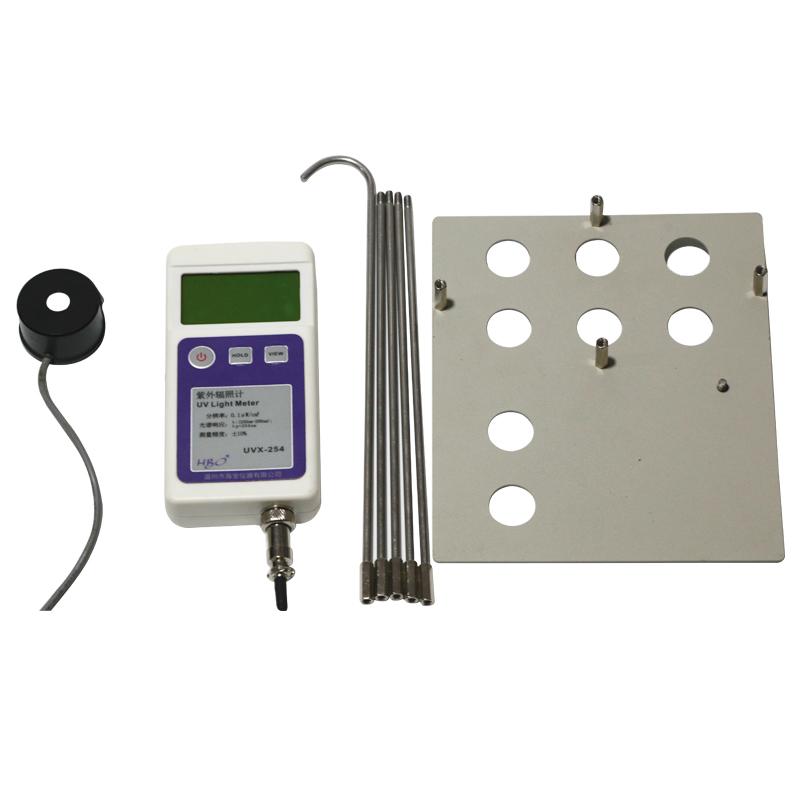

Packing list：host x1, probe x1, probe cover x1, charging adapter x1, charging data cable x1, 1-meter hook Accessories x1 set, communication software x1, manual x1, certificate (warranty policy) x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
