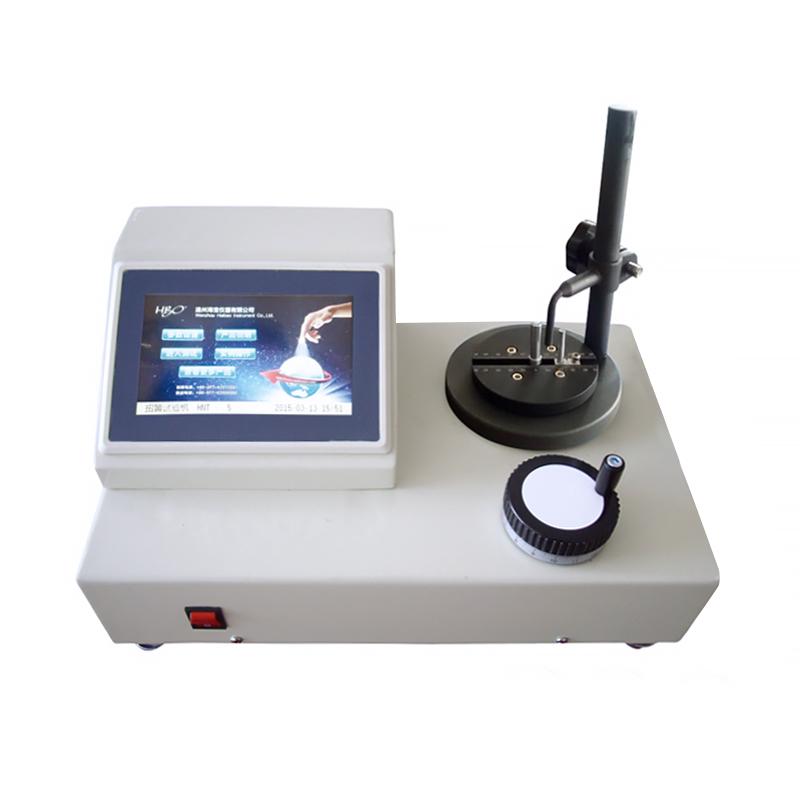

Spring Torsion Tester HNT-0.5 Hypertherm, Vertical Manual Spring Torsion Tester 500N.mm

HNT-0.5

Torsion spring testing machine

Range 500N.mm, load Graduation 0.5N.mm, unit N.mm, gf.cm, ozf.in, Precision +/- 1%, swirl/spin range -3000.0~ + 3000.0 °, angle Graduation 0.1 °, loading mode manual.

Applications

This series of vertical manual spring torsion testing machine is suitable for the test of torsion angle and torsional torque of torsion springs, worm coil springs, elastic elements and friction mechanisms. The addition of corresponding accessories can also be used to test the torsion resistance of parts and components. This machine refers to the "JB/T 9370-1999", "JJG 269-2006" torsion testing machine standards and material test methods. It can be tested and provided according to national standards and ISO, JIS, ASTM, DIN and other international standards, and is a satisfactory testing equipment for industrial and mining enterprises, technical supervision, commodity inspection and arbitration, scientific research institutes, colleges and universities, quality inspection units and other departments.

Features

1. High precision, high resolution, high stability

2. Large 7-inch touch LCD screen, human-computer interaction interface is simple and easy to use

3. Test direction display (clockwise-, counterclockwise+)

4. The three units (N.mm, gf.cm, ozf.in)/(N.m, kgf.cm, lbf.in) are automatically interchanged

5. 5 test points can be customized, and the allowable torque value of the corresponding point can be set, and the test interface can display the deviation degree of the torque value of the test point in real time

6. You can customize 10 different test items, set different test points respectively, and after saving for the first time, you can directly load the test in the future and start the test without setting it again

7. The test interface displays real-time stiffness, segmented stiffness, and overall stiffness

8. You can view the saved 10 sets of test data, and automatically calculate the stiffness of the data, the degree of error deviation, and make statistics, display the pass rate, stiffness, the maximum, minimum value, and average value of the torque value of each set point, and view the displayed content can be printed out by the printer

9. The gravitational acceleration value can be set

10. USB online communication, which can save test items and real-time data, and export excel files to facilitate later data processing

Series selection

Packing list：Host x1, card core x1, power cable x1, data cable x1, inspection certificate x1, foot pads x4, CD x1, manual x1, certificate of conformity (warranty) x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
