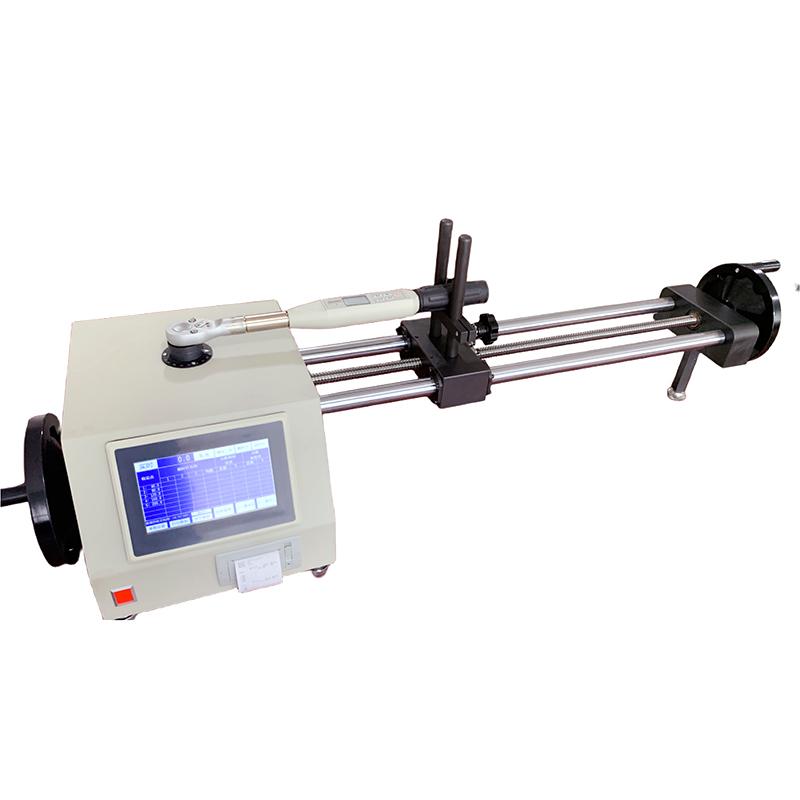

Torque wrench verification instrument HNS-500 Haibao, range 500N.m

HNS-500

Torque wrench verification instrument

Range 500N.m, Graduation 0.1N.m, wrench length 180-900mm, using large 7-inch color touch LCD screen, can do two-way verification, can customize 8 check points, with USB interface.

Features

HNS series digital display Torque Tester is specially used for testing various torque wrenches. The digital display of the torque value is accurate and intuitive, and the preparation of various mortises is simple, which is convenient for clamping. Adding corresponding accessories can also conduct torsional tests on parts and components. This machine conforms to the "JJG 797-2013" national standard for torque wrench Testers, and the standard test method for "JJG707-2003" torque plate measurement verification regulations. It can conduct tests and provide data according to national standards and international standards such as ISO, JIS, ASTM, DIN, etc.

main feature

1. High precision, high resolution, high stability

2. Test direction display (clockwise -, counterclockwise +)

3. Three units Nm, kgf.cm, lbf.in are automatically interchangeable

4. The length of the loading arm can be adjusted by the hand crank

5. Provide JJG707-2003 torque plate metrology verification standard test standard form, can directly print the test form data

6. Large 7-inch color touch LCD display, easy-to-use human-computer interface

7. You can customize 10 different test items and set different test points respectively. After saving for the first time, you can directly load it in the future to start the test without having to set it again

8. 8 test points can be customized, and the standard torque value of the corresponding point can be set. The test interface can display the indication error and Repeatability Error of the torque value of the test point in real time

9. You can set the acceleration of gravity value by selecting the test location, and you can also customize the settings

10. Connect to the host computer through a USB connection cable to perform operations such as reading, storing, analyzing, and printing real-time data

Packing list：host x1, 3.6V high-performance lithium sub-battery ER17335x1, manual x1, certificate of conformity (warranty) x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
