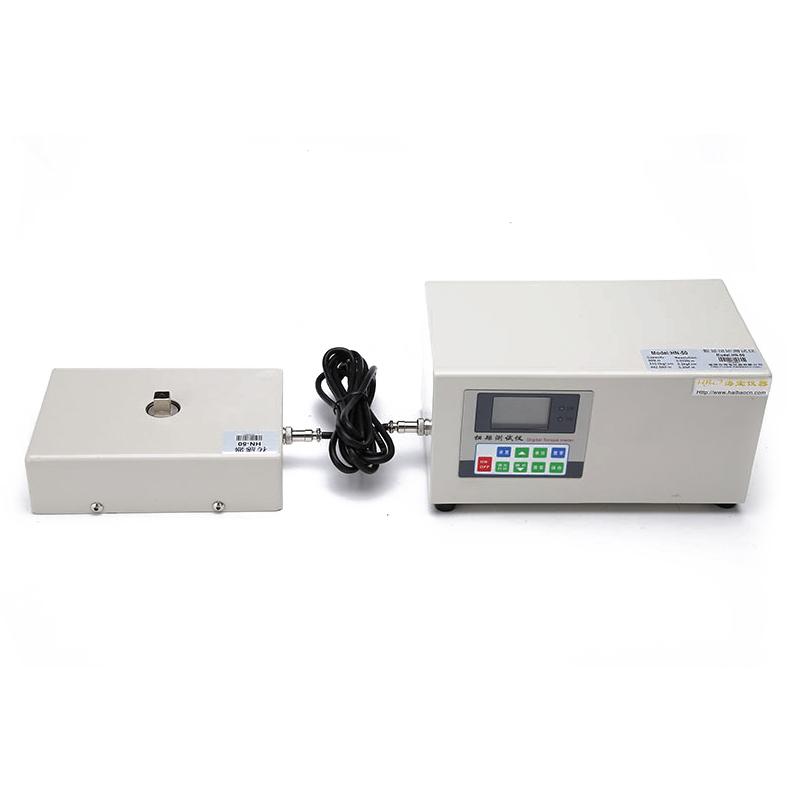

Digital Torque Tester HN-200 Hypertherm, Torque Tester 200N.m
SE
HN-200
HBO HN-200 Digital Torque TesterSPEC
HBO HN-200 Digital Torque TesterDetails
HBO HN-200 Digital Torque TesterPacking list
- SKU
- NB027359
- range
- 200N.m、2040.8kgf.cm、1771.3lbf.in
- resolution
- 0.1N.m、1kgf.cm、0.001lbf.in
- Accuracy class
- Level 1
- Indication relative error
- ≤±1%
- Dimension
- Different ranges have different sizes (please consult)
- Net Weight
- Different ranges have different Weights (please consult)
- unit
- N.m、kgf.cm、lbf.in
- Power Supply
- Lithium Battery: 3.7V/1000mAh
- Charger
- AC Input：220V/50HZ、DC Output：5V/1A
- Operating temperature
- 0℃-40℃
- Storage temperature
- -20℃-70℃
- Relative Humidity
- 15%-80%
- Operating Environment
- No vibration and corrosion medium around
Applications
HN digital Torque Tester is a testing instrument designed and developed for detecting various moments. It is suitable for the detection and correction of various torsion medical parts, torsional failure test, etc. It is mainly used to detect all kinds of manual, electric torque batch, torque driver, screwdriver, torque wrench and various instruments and products involving tightening force, and is widely used in electrical manufacturing, machinery manufacturing, automobile light industry and professional scientific research and testing industries.
Features
High precision, high stability, high resolution, high sampling speed up to 100 times/second.
The upper and lower limit deviation values can be set freely, and the automatic sound alarm and level signal output
Test direction display
Segment LCD screen, green backlight screen
99 sets of test data are stored, and the average, maximum, and minimum values of the stored data are automatically calculated
The three units N.m/kgf.cm/lbf.in are automatically converted
Peak hold, peak auto-release function (0~99 seconds)
The gravitational acceleration value can be set
Automatic shutdown without operation (time can be set freely for 0~99 minutes)
The external smart charger can be safely charged and prolong the battery life
The serial output (baud rate 9600) can print test data and maximum, minimum and average values
The link host computer can be used to read, store, analyze, print and other operations of real-time data
Series selection
Model specifications | HN-1 | HN-2 | HN-5 | HN-10 | HN-20 |
Range | 1N.m | 2N.m | 5N.m | 10N.m | 20N.m |
Graduation value | 0.0005N.m | 0.001N.m | 0.002N.m | 0.005N.m | 0.01N.m |
Sensor mounting | Sensors are built-in | ||||
accuracy | ±0.5% | ||||
Model specifications | HN-50 | HN-100 | HN-200 | HN-500 |
Range | 50N.m | 100N.m | 200N.m | 500N.m |
Graduation value | 0.02N.m | 0.05N.m | 0.1N.m | 0.2N.m |
Sensor mounting | The sensor is external | |||
accuracy | ±1% | |||
