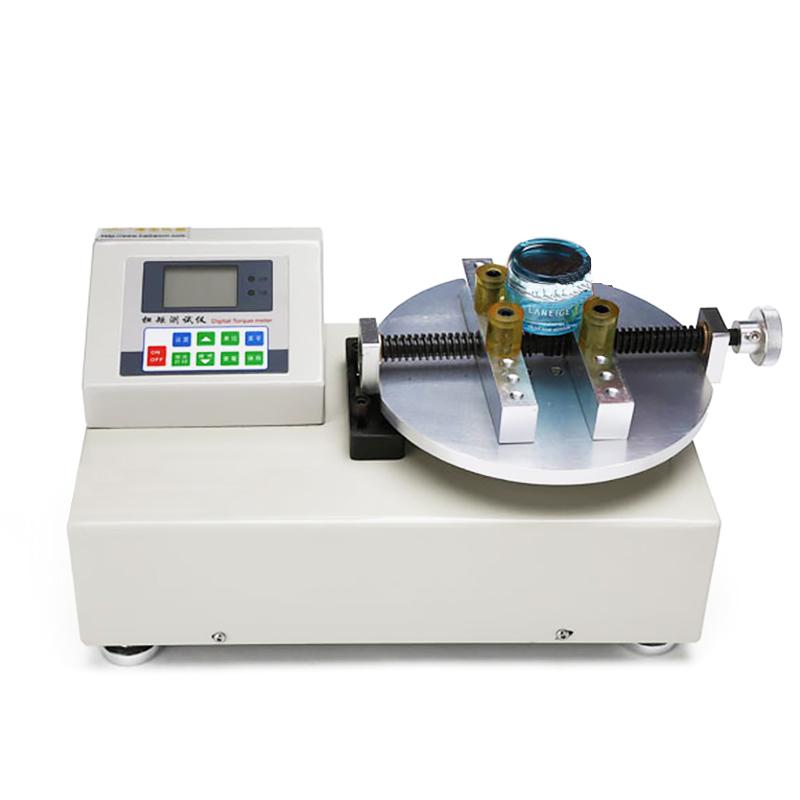

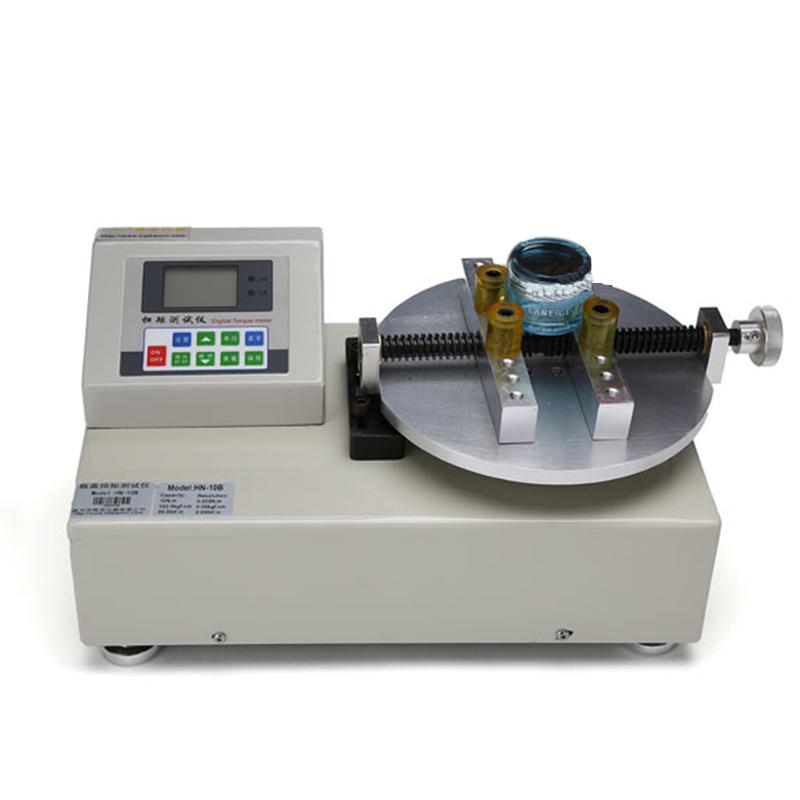

Bottle cap turntable Torque Tester HN-20B Haibao, lamp holder Torque Tester, range 20N.m

HN-20B

Bottle cap Torque Tester

Range 20N.m, Graduation 0.01N.m, with mechanical overload protection device, two-way calibration, Precision +/- 0.5%, clamping range standard φ 28mm-φ 185mm.

Applications

The HN-B bottle cap Torque Tester is an intelligent multi-functional measuring instrument designed and manufactured for testing and detecting the opening and closing torque of various bottle caps. It is specially used to detect the opening and closing torque of various bottle caps, lamp holders and other products. The clamping is convenient and fast. The maximum clamping diameter can reach 200mm. It is equipped with USB serial port output, which can transmit data to the computer for analysis, printing and other related processing.

Features

High precision, high stability and high resolution.

The upper and lower limit deviation values ​​can be freely set, with automatic sound alarm and level signal output.

Test direction display

Segment LCD screen, green backlight screen

Store 99 sets of test data and automatically calculate the average, maximum and minimum values ​​of the stored data

Automatic conversion of three units Nm/kgf.cm/lbf.in

Peak hold, peak automatic release function (0~99 seconds)

Gravity acceleration value can be set

Automatically shuts down if no operation is performed (time can be set freely from 0 to 99 minutes)

Using an external smart charger for safe charging and extending battery life

Serial port output (baud rate 9600) can print test data and maximum, minimum and average values

Linking to the host computer can perform operations such as reading, storing, analyzing, and printing real-time data.

Series selection

Packing list：Host x1, test head x1 set, software x1, communication cable x1, Encasement box x1, manual x1, certificate of conformity (warranty) x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
