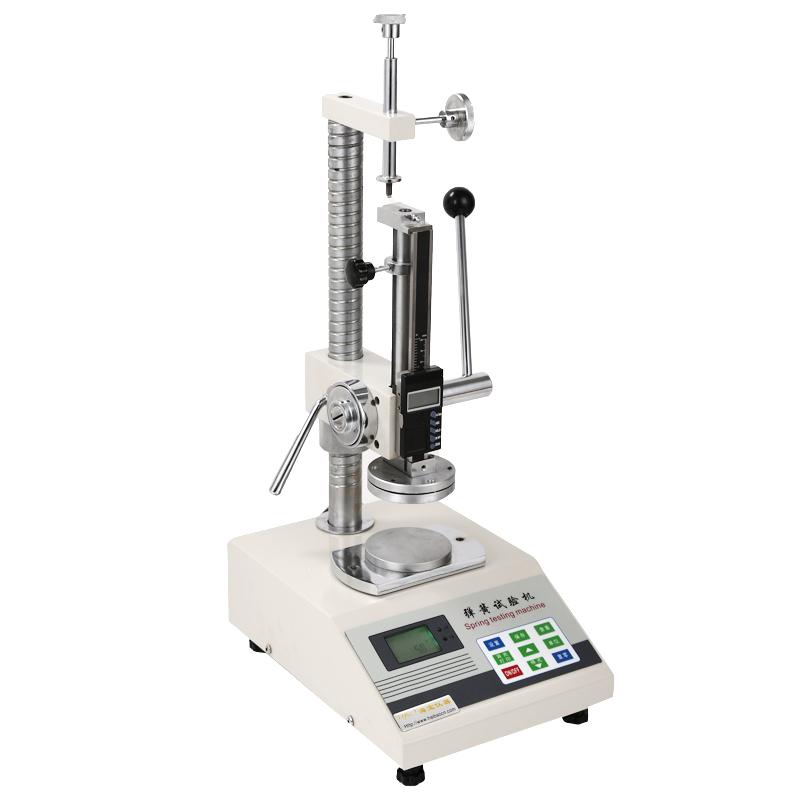

Spring Tensile Testing Machine HT-50P Hyperion tensile machine with printer

HT-50P

Spring tension and compression testing machine

Applications

HT series electronic digital display spring tension and compression testing machine is a special instrument for testing the deformation amount and load relationship characteristics of tension and compression springs. It is suitable for testing the working load of tension and compression springs under a certain working length.

Features

◆With the first peak hold function during the test process

◆LCD display, blue backlight

◆High precision and high resolution, high sampling speed

◆The upper and lower limit alarm values ​​can be set, sound and light alarm, level signal output (can be set high-low)

◆Storage 200 sets of test data and automatically calculate the average, maximum and minimum values ​​of the stored data

◆Automatic conversion of three units: N, kgf and lbf

◆Peak hold, hold time can be set (0~99 seconds)

◆Automatically shut down if no operation is performed (time can be set freely from 0 to 99 minutes)

◆Serial communication (can be conveniently configured as USB communication), the computer displays force value curves, force value tables and other display methods and processes the data: such as printing, statistical analysis, etc.

◆Optional installation of micro printer

Series selection

Packing list：Host x1, micro printer x1, communication cable x1, software CD x1, Encasement box x1, manual x1, certificate of conformity (warranty) x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
