INESA SGW-537 Multi-Wavelength Automatic High Speed Polarimeter

SE
Support 546nm and 589nm wavelengths, comply with GMP, GLP and FDA/21CFR 11 requirements, user classification management, electronic signature, data traceability, built-in temperature control system, support a variety of measurement methods and data storage, and provide a variety of communication interfaces and optional temperature control anticorrosive testtube
Model：
Certificate
Contact
Details SPEC CAT

INESA SGW-537 Automatic (High Speed) PolarimeterSPEC

INESA SGW-537 Automatic (High Speed) PolarimeterDetails

INESA SGW-537 Automatic (High Speed) PolarimeterPacking list

SKU
NB027435
Measurement project
Optical rotation, specific rotation, concentration, sugar content, user-defined
Measuring method
300 kinds
password hierarchical management
Level 4
number of users
50
Electronic signature
Yes.
data traceability
Yes.
Light source
20W halogen tungsten lamp
Working Wavelength
546、589nm
Measurement range
+/- 90 ° (optical rotation) +/- 259 ° Z (sugar content)
minimum reading
0.001°
Relative error
±0.004°
Repeatability
≤0.002°
Zero Repeatability
0.001°
minimum transmittance of sample
0.1%
Response speed (full scale)
8 °/sec
Measurement time
It can be measured 6 times in an average of 26 seconds
temperature control
Temperature controlled Peltier (built-in)
Display range
0-100℃
Temperature control range
10-50℃
Temperature Precision
±0.2℃
Operating system
WINDOWS
monitor
8-Inch color dot matrix touch LCD display
Calibration method
Automatic calibration
Data storage
16G
Communication interface
USB/keyboard/mouse/universal printer/VGA/Ethernet/optional wireless network interface card
Standard testtube
100/200Mm ordinary type, 100mm temperature control type
Testtube size
50Mm micro type, 200mm temperature control type (optional)
Power Supply
220V±22V，50Hz±1Hz
Dimensions
702*376*240mm
Net Weight of instrument
21kg
Precision
Level 0.01
SGW-537
Automatic (High Speed) Polarimeter
Support 546nm and 589nm wavelengths, comply with GMP, GLP and FDA/21CFR 11 requirements, user classification management, electronic signature, data traceability, built-in temperature control system, support a variety of measurement methods and data storage, and provide a variety of communication interfaces and optional temperature control anticorrosive testtube

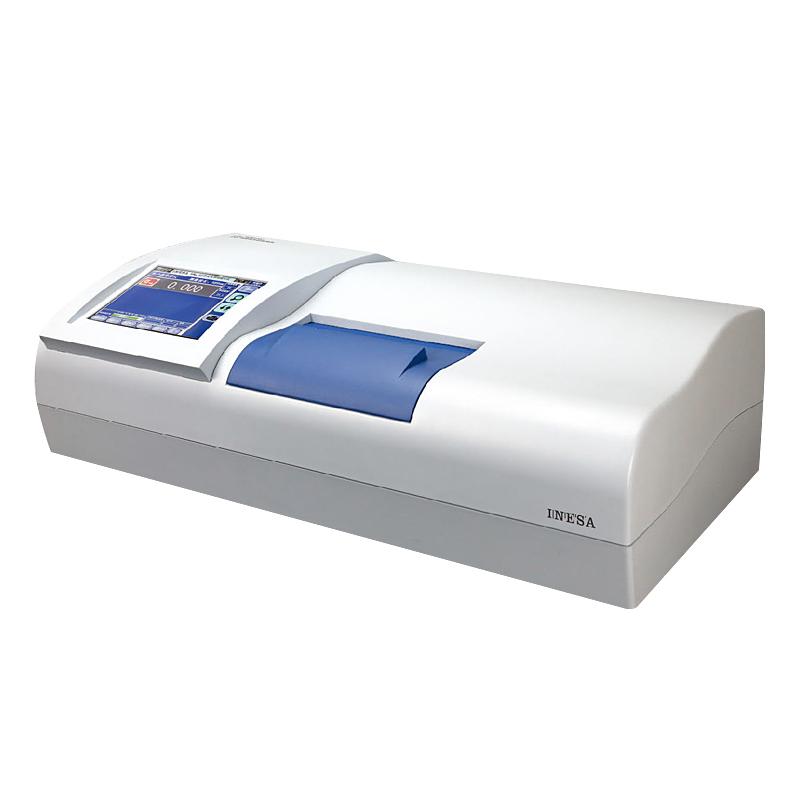

INESA SGW-537 Multi-Wavelength Automatic High Speed Polarimeter Picture

The use of digital platform ensures the accuracy, repeatability and reliability of the instrument, improves the response speed of test samples, realizes high-speed measurement, and shortens the sample measurement time. The technical indicators have reached the international level in an all-round way.

The polarizer uses a Glan Thompson prism (SGW-568, SGW-537).

It complies with the relevant requirements of NCP, GMP, GLP and FDA/21CFR 11, including user hierarchical management, electronic signature, password management, network transmission, data protection and traceability (SGW-568, SGW-537, SGW-533).

Large database, data can be saved, transmitted, printed and traced, and common measurement methods can be pre-defined and stored by the user.

The instrument is always silent, and the SGW-537 is a new automatic high-speed multi-wavelength polarimeter.

It can be equipped with various temperature control and anti-corrosion test tubes, and can customize the barcode scanner, and the test data can be transmitted synchronously by scanning the QR code to achieve (ID) networking.
