China

BOZHEN DHG-9140A vertical Forced Air Drying Oven

Temperature range RT + 10~300 ℃, Temperature Fluctuation +/- 0.5 ℃, Temperature resolution 0.1 ℃, Interior size 450 × 550 × 550mm, shelf (standard) 2pcs, Timer Range 1~ 9999min.
Model:

BoZhen DHG-9140A Vertical Forced Air Drying OvenSPEC

BoZhen DHG-9140A Vertical Forced Air Drying OvenDetails

BoZhen DHG-9140A Vertical Forced Air Drying OvenPacking list

SKU
NB027460
Temperature range
RT+10~300℃
Temperature Fluctuation
±0.5℃
Temperature Resolution
0.1℃
Interior size
450*550*550mm
Shelf (std.)
2pcs
Timer
1~9999min
Power supply Voltage
220V 50HZ
Input Power
2000W
Environmental temperature
RT+5~40℃
Dimensions
595*730*855mm
DHG-9140A
Vertical Forced Air Drying Oven

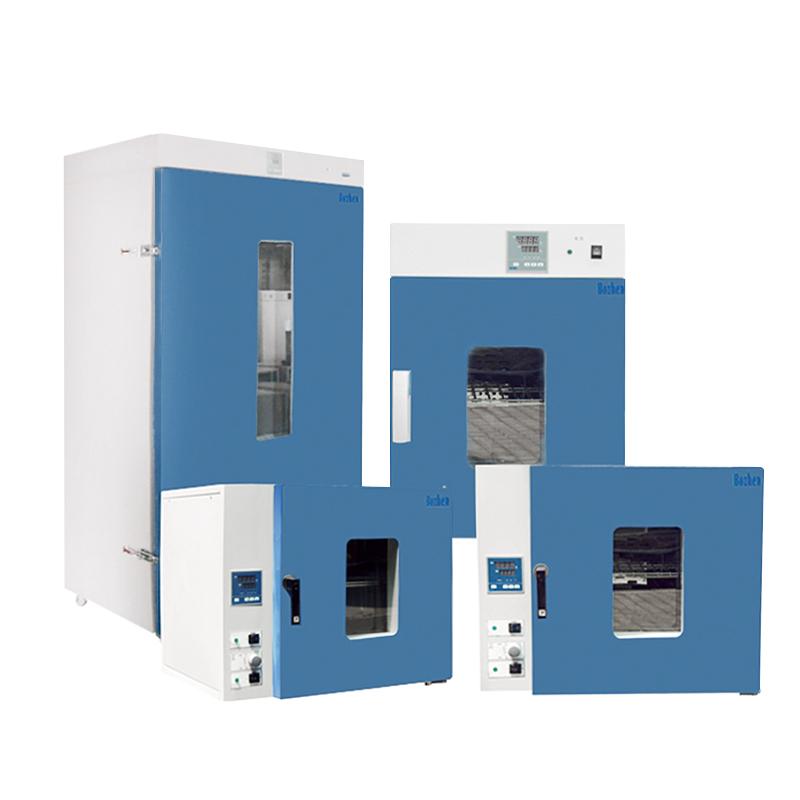

BOZHEN DHG-9140A vertical Forced Air Drying Oven Picture

Overview

The products produced by professional CNC machining equipment are used for drying, baking, wax melting and sterilization for industrial and mining enterprises, laboratories and scientific research units.

Features

1. The box is made of brushed stainless steel argon arc welding, and the box is made of good steel plate, which is beautiful and novel.

2. Adopt microcomputer temperature controller with temperature control protection and digital display, with timing function, accurate and reliable temperature control (optional intelligent LCD program temperature controller)

3. The hot air circulation system is composed of a fan that can run continuously at high temperature and a suitable air duct. The temperature in the work room is uniform.

4. Independent temperature limit alarm, automatic interruption when the limit temperature is exceeded, to ensure the safe conduct of the experiment without accidents (optional).

5. It has RS485 interface, which can be connected to the Recorder and computer, and can record the changes of temperature and humidity parameters (optional).

Series selection

Model

DHG-9035A

DHG-9075A

DHG-9145A

DHG-9245A

Supply Voltage

220V  50HZ

Scope of control

RT+10~300℃

Temperature resolution

±0.1℃

Temperature fluctuations

±0.5℃

Operating ambient temperature

5~40℃

Input power

1050W

1500W

2000W

2500W

Inner tank size(mm)

340*320*320

400*350*500

450*550*550

500*600*750

Dimensions(mm)

490*500*625

545*530*805

595*730*855

645*780*1055

Cargo carrier (standard)

2 pieces

Timing range

1~9999min


Model

DHG-9425A

DHG-9625A

DHG-9645A

DHG-9925A

Supply Voltage

380V  50HZ

Scope of control

RT+10~300℃

Temperature resolution

±0.1℃

Temperature fluctuations

±0.5℃

Operating ambient temperature

5~40℃

Input power

4500W

6000W

6000W

7500W

Inner tank size(mm)

600*550*1300

800*600*1300

800*800*1000

1000*600*1600

Dimensions(mm)

745*730*1670

945*780*1670

945*1000*1370

1145*780*1970

Cargo carrier (standard)

3 pieces

4 pieces

4 pieces

4 pieces

Timing range

1~9999min
