LANDTEK CM8829Fn Coating Thickness Gauge, integrated paints Thickness Gauge Film Thickness Gauge

CM8829fn

Coating Thickness Gauge

Built-in probe, dual function thickness measurement; Single and continuous two measurement modes; Automatic memory calibrating and identification substrate; RS232C interface; USB and Bluetooth data output can be purchased separately.

Introduction

LANDTEK CM8829fn Cladding Thickness Gauge is a built-in probe type paint coating Thickness Gauge, which is a dual-purpose cladding Thickness Gauge for eddy current and magnetic induction, with two measurement methods: single and continuous.CM8829fn cladding Thickness Gauge can automatically identify different substrate materials, and the thickness range of 0~1250 microns can be measured, with automatic shutdown function.CM8829fn cladding Thickness Gauge is suitable for thickness measurement in coatings, paints, metals and other fields.

Features and advantages

* Cladding Thickness Gauges CM8829FN available in both single and continuous measurement methods.

* Metric/Imperial unit conversion.

* Cladding Thickness Gauge CM8829FNIt has functions such as manual shutdown, automatic shutdown and under-Voltage prompt.

* Automatic memory of calibration values and automatic identification of the material of the tested substrate.

* There is a buzzer prompt sound during operation, and the buzzer does not sound when continuous measurement.

* The cladding Thickness Gauge CM8829FN uses USB data cable output, RS-232C data cable and software to communicate with PC.

* Optional Bluetooth™ data output options are also available.

* MonolithicCladding Thickness GaugeIt is suitable for one-handed operation, has a "large probe", and the large contact surface has better stability, and the results are accurate and repeatable.

Applications

Cladding Thickness Gauge CM8829FN use magnetic sensors to measure non-ferromagnetic coatings and coatings on ferromagnetic metal substrates such as steel and iron, such as paint, powder, plastic, rubber, synthetic materials, phosphating layer, chromium, zinc, lead, aluminum, tin, cadmium, porcelain, enamel, oxide layer, etc. The coating Thickness Gauge CM-8829FN uses an eddy current sensor to measure enamel, rubber, paint, plastic layers, etc. on substrates such as copper, aluminum, zinc, tin, etc. It is widely used in manufacturing, metal processing industry, chemical industry, commodity inspection and other testing fields.

Features

Cladding Thickness Gauge CM8829fn is availableMeasure the thickness of non-magnetic conductive coatings on ferromagnetic metal substrates.

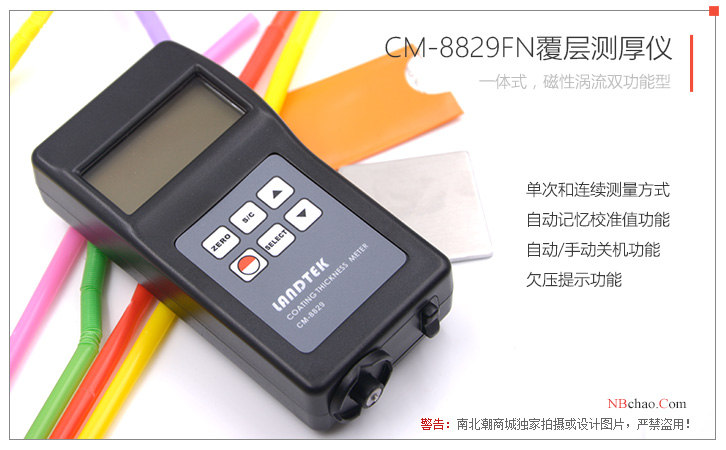

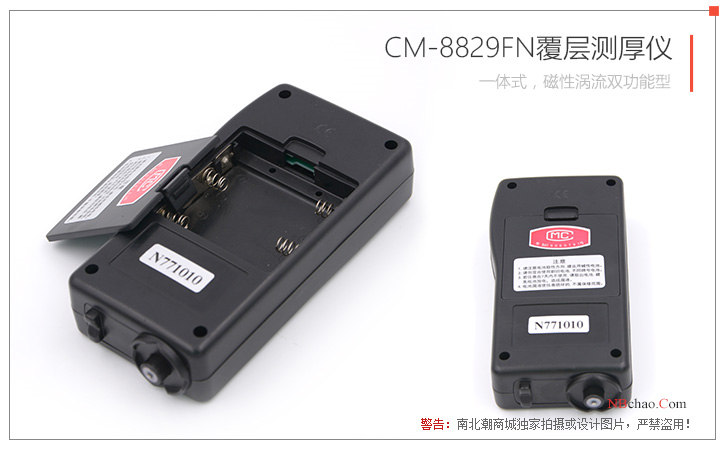

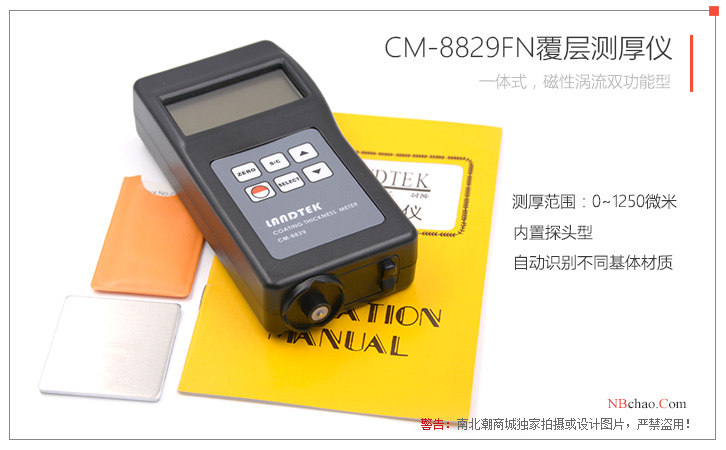

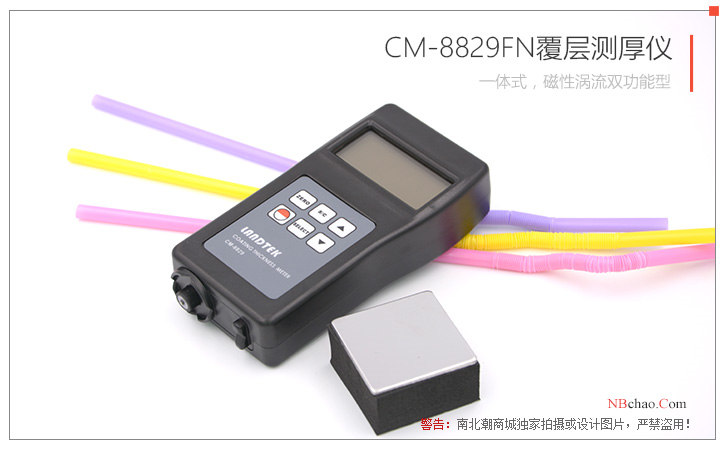

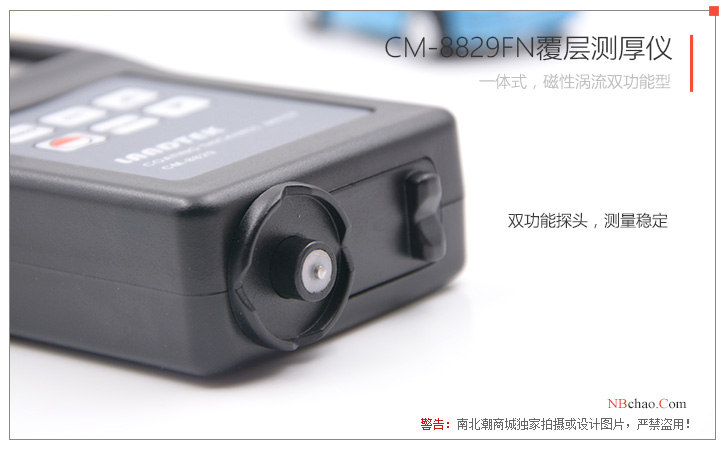

Actual picture of the product

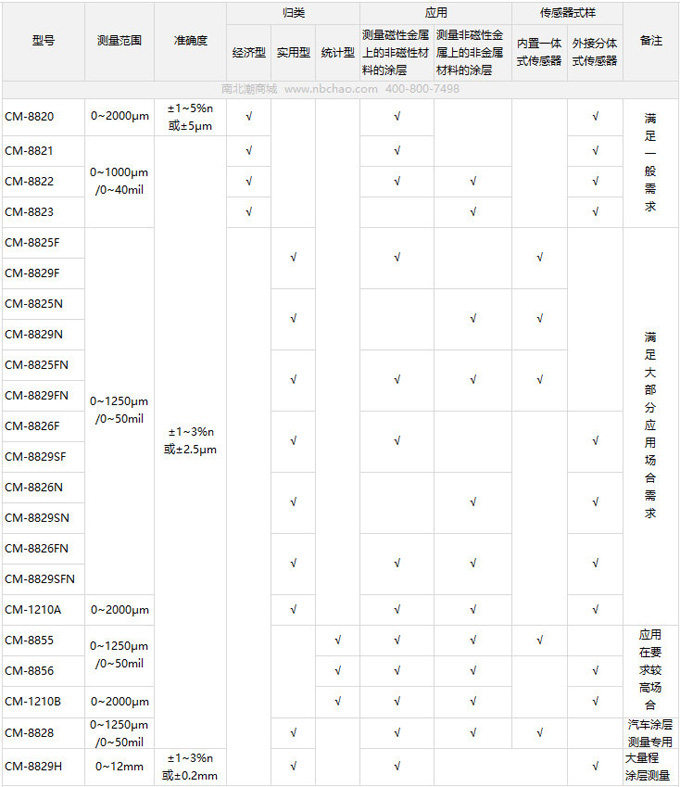

LANDTEK Cladding Thickness Gauge Selection List

Packing list：Host x1, reference block (iron/aluminum) CTG-BS each x1, calibrated diaphragm CTG-CFx4, portable box x1, manual x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
