BOZHEN GD/HS4005 High and Low Temperature Constant Damping heat testing chamber

SE
BOZHEN GD/HS4005 High-low temperature constant Damping heat testing chamber Temperature range -40 ℃~ + 100 ℃, Temperature Fluctuation ≤ +/- 0.5 ℃, Temperature uniformity ≤ + 2 ℃, humidity control range 30~98% RH, Interior size 350 × 360 × 400mm.
$3682.00/set
PromotionLoading...
Coupon
Model:

BoZhen GD/HS4005 Damping heat testing chamberSPEC

BoZhen GD/HS4005 Damping heat testing chamberDetails

BoZhen GD/HS4005 Damping heat testing chamberPacking list

SKU
NB027533
Temperature range
-40~100℃
Temperature Fluctuation
≤±0.5℃
Temperature Uniformity
≤+2℃
Humidity Control Range
30~98%R.H
Humidity Deviation
+ 2%/-3% (above 75% R.H. ), +/- 5% (below 75% R.H.)
Input Power
4kw
Power supply Voltage
220V/50HZ
Interior size
350*360*400mm
Dimensions
820*700*1380mm
Chamber material
304 stainless steel
GD/HS4005
Damping heat testing chamber

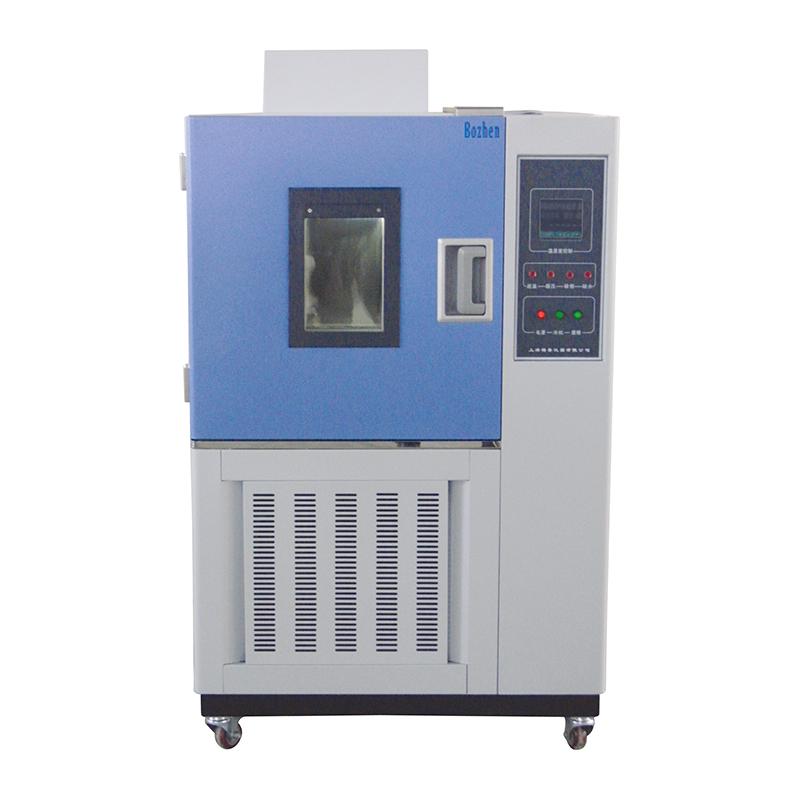

BOZHEN GD/HS4005 High and Low Temperature Constant Damping heat testing chamber Picture

Scope of application

It is suitable for electronic and electrical appliances, home appliances, automobiles, instrumentation, electronic chemicals, parts, raw materials, coatings, and coatings for adaptability tests in high-low temperature and humidity environments.

Features

1. The main components are imported parts, with excellent performance, beautiful appearance and good reliability, which is an excellent choice for laboratory environmental testing equipment.

2. It has a wide temperature control range, which can meet the various needs of users.

3. Adopt a unique balanced temperature adjustment method, with stable and balanced heating capacity, and can carry out high-precision, high-stability temperature control.

4. The temperature is displayed digitally, which is intuitive and easy to read, accurate and convenient.

5. By adjusting the temperature error value, you can meet your more accurate test conditions.

6. The box is equipped with a large-area observation window, which can observe the test status of the test sample at any time.

7. In the refrigeration system, the condensation adopts the air-cooled method.

Series selection

Model

Studio size mm

Dimensions mm

power supply

Power(KW)

Temperature range

Humidity range

GDHS4005

350*360*400

820*700*1380

220V/50HZ

4

-40℃~+100℃

30~98%RH

GDHS4010

450*450*500

920*800*1500

380V/50HZ

5.5

-40℃~+100℃

30~98%RH

GDHS4025

520*600*800

1020*850*1900

380V/50HZ

7

-40℃~+100℃

30~98%RH

GDHS4050

700*800*900

1220*1070*2040

380V/50HZ

8

-40℃~+100℃

30~98%RH

GDHS41

1000*900*1100

1420*1390*2200

380V/50HZ

9

-40℃~+100℃

30~98%RH
