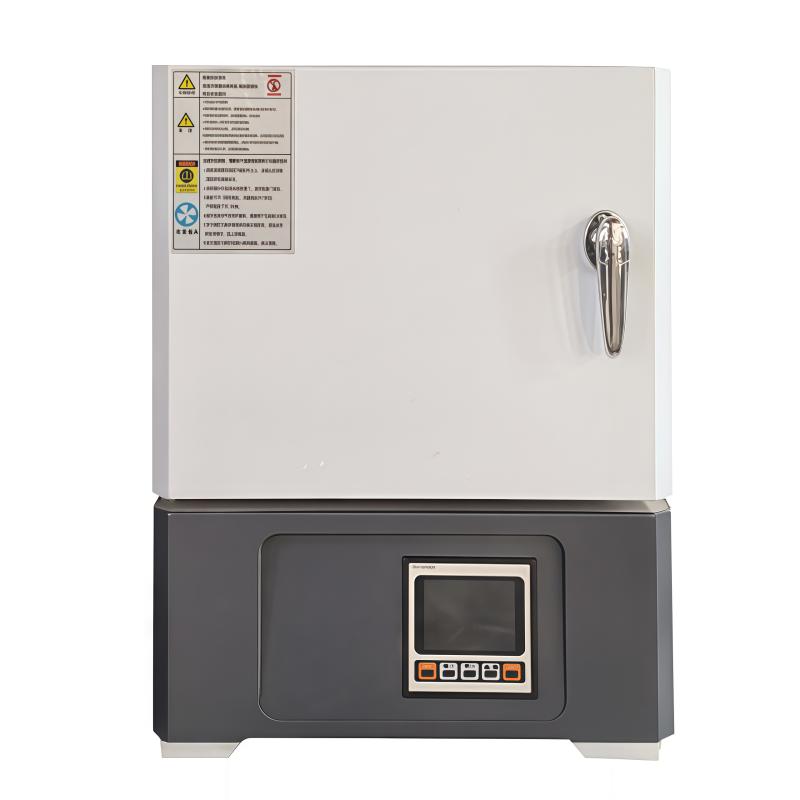

BOZHEN BZ - 2.5-10 TC ceramic fiber muffle furnace
BZ-2.5-10TC
-
BOZHEN BZ- 2.5-10 muffle furnace Box-Type Resistance Furnace 1000 ℃$ 350.00SE -
BOZHEN BZ- 2.5-10 Box-Type Resistance Furnace temperature up to 1000 ℃/2L high aluminum liner$ 350.00SE -
BOZHEN BZ - 2.5-10 P program temperature control muffle furnace 30 segment program programming PID temperature control 2L$ 487.00SE
BoZhen BZ-2.5-10TC Ceramic fiber muffle furnaceSPEC
BoZhen BZ-2.5-10TC Ceramic fiber muffle furnaceDetails
BoZhen BZ-2.5-10TC Ceramic fiber muffle furnacePacking list
- SKU
- NB027594
- temperature range
- 100-1000℃
- Temperature Fluctuation
- ＜±2℃
- Temperature Uniformity
- +/- 5 ℃ (thermostatic zone)
- Heating rate
- Average < 35 ° C/min
- Outer box temperature
- ＜RT+30℃
- program
- 30 stages (optional) (Heating rate 1-30 ℃/min)
- control mode
- P.I.D Microcomputer Intelligent Control
- Furnace material
- Pottery and porcelain fibres
- Timer Range
- 0-9999 minutes
- Heating position
- Three-sided heating
- Power (kw)
- 2KW
- Power Supply
- AC220±10% 50~60Hz
Applications
The effective energy-saving Resistance Furnace adopts high-temperature refractory fiber vacuum forming products as the furnace sleeve, mechatronics design, program control, and digital display. The energy-saving rate is 40%, and it has reached the national C-level furnace standard after testing.
Features
Double-layer furnace shell, hollow heat insulation, strong ventilation and many international professional design concepts to ensure that the shell is not hot, the furnace is made of ceramic fiber furnace, and its heating element adopts multi-surface heating, the temperature distribution uniformity in the cranial cavity is good, with high temperature, fast speed, significant energy saving, high work efficiency, and can greatly improve the experimental environment of the staff. A variety of control methods are optional, fixed value, and program.
Series selection
Model | Studio ruler (mm) | Dimensions(mm) | Voltage(V) | Power(KW) | Rated Temperature (°C) |
BZ-2.5-10TC | 80X120X200 | 500X440X575 | 220 | 2.5 | 1000 |
BZ-4-10TC | 120X200X300 | 500X450X630 | 220 | 4 | 1000 |
BZ-8-10TC | 160X250X400 | 610X580X720 | 380 | 8 | 1000 |
BZ-12-10TC | 200X300X500 | 690X610X870 | 380 | 12 | 1000 |
BZ-2.5-12TC | 80X120X200 | 550X440X600 | 220 | 2.5 | 1200 |
BZ-5-12TC | 120X200X300 | 550X570X630 | 220 | 5 | 1200 |
BZ-10-12TC | 160X250X400 | 610X580X720 | 380 | 10 | 1200 |
BZ-12-12TC | 200X300X500 | 690X610X870 | 380 | 12 | 1200 |
