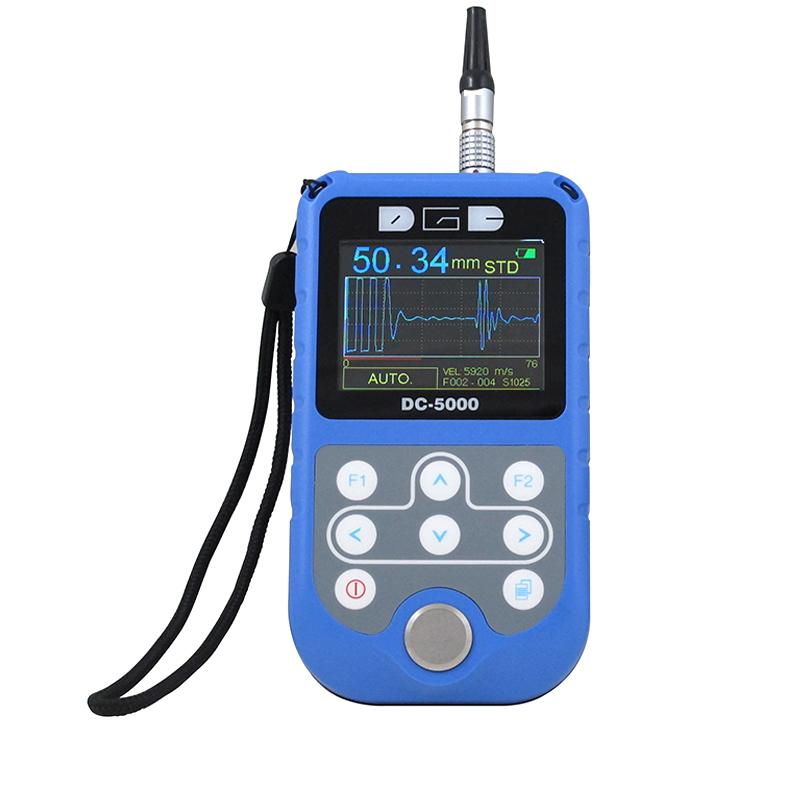

Ultrasonic Thickness Gauge DC-5000 Deguang Electronics, suitable for ultra-thick organic material measurement

SE
The measuring range of Deguang Electronics DC-5000 ultrasonic Thickness Gauge is T~ E: 20~590mm, probe frequency 1MHz, probe style S1025, single crystal probe, measurement mode average measurement, 2~ 9 times optional, measurement speed 2 seconds/second or 10 times/second fast measurement mode, storage capacity 100 sets of files, each set of files can store 100 data, a total of 10,000 data.
$2297.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

DGC DC-5000 Ultrasonic Thickness GaugeSPEC

DGC DC-5000 Ultrasonic Thickness GaugeDetails

DGC DC-5000 Ultrasonic Thickness GaugePacking list

SKU
NB027631
Measuring range
T~E：20~590mm
Probe frequency
1MHz
Probe style
S1025, Single Crystal Probe
Measurement error
± (0.1% Film thickness value + 0.04) mm Film thickness value = 10~99.9m ± 0.3% Film thickness value Film thickness value > 100mm.
Display resolution
0.01mm/0.001inch
unit system
mm/inch
Measurement mode
Average measurement, 2 to 9 times optional
Measurement speed
2 sec/sec or 10 times/sec fast measurement mode
Storage Capacity
100 groups of files, each group of files can store 100 data, a total of 10,000 data
Sound speed range
1000~9999m/s
Display
320 * 240 color screen display
Operating language
Chinese
Operating Temperature
-20~50℃
Power
2 * AA battery
Host size
133*75*29mm
Weight
260G (including battery)
DC-5000
Ultrasonic Thickness Gauge

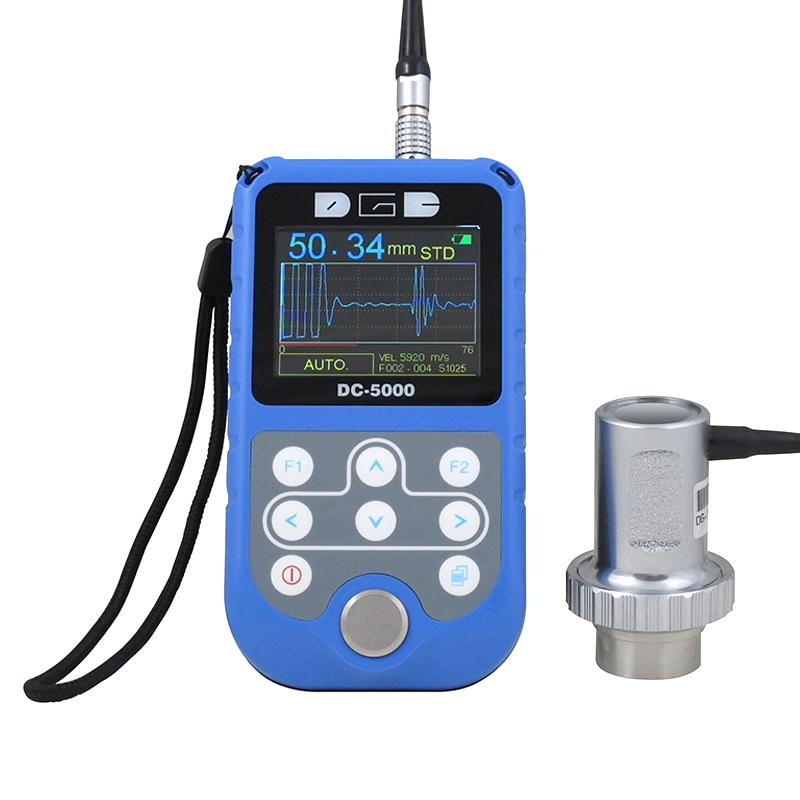

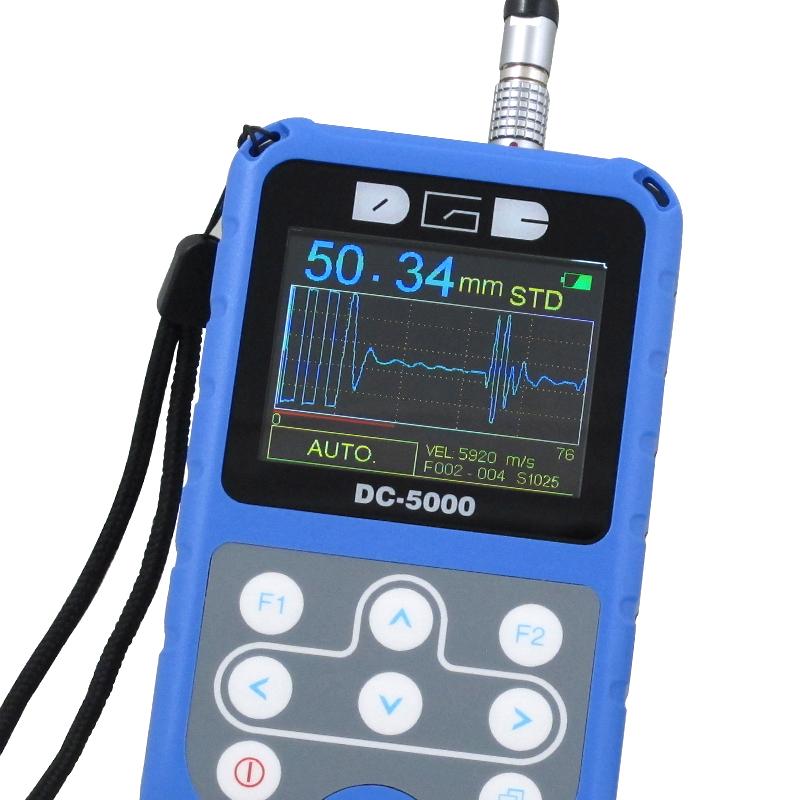

Ultrasonic Thickness Gauge DC-5000 Deguang Electronics, suitable for ultra-thick organic material measurement Picture

features

·A/B scan, large-screen color display 320×240.

·Resolution 0.01mm, measurement range: launch-echo 20mm-590mm.

The standard configuration is 1MHz single crystal probe S1025, which is especially suitable for ultra-thick organic materials.

·Probe automatic identification and automatic zero calibration.

·Automatic positioning of bottom echo.

·Automatic measurement and manual measurement are optional.

100 files X 100 data/folder.

·Data transfer without software, suitable for any Windows operating system.

The user removes the probe, and the measurement data is frozen on the LCD, which is convenient for the user to view.


FAQ
QWhat is the probe frequency of this Ultrasonic Thickness Gauge?
A Hello, the frequency is 1MHz.
QDoes the ultrasonic thickness gauge meet the specifications of GB/T11344?
A Model DC-5000 Ultrasonic Thickness Gauge Compliant
