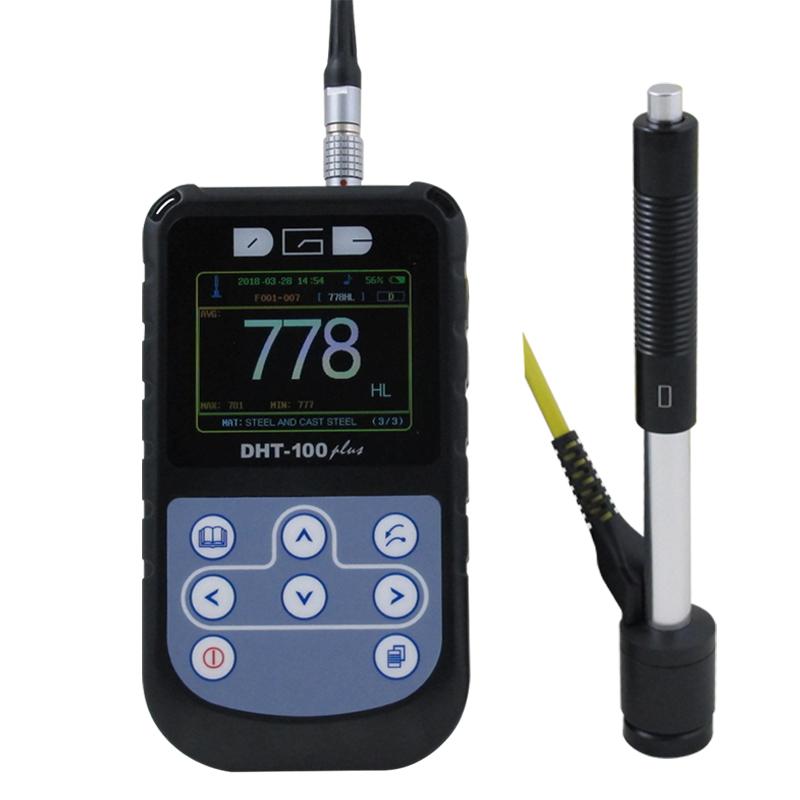

Leeb Hardness Tester DHT-100Dplus
SEThe measuring range of DHT-100Dplus Leeb Hardness Tester is 174HL~ 900HL, tensile strength (steel) 370~2000 (Technologies 106N/mm), optional Sensors D/DC/DL/D + 15, C and G, Film thickness requirements The thinnest is 3mm or thicker, and the weight is required to be 5kg or heavier.
$1302.00/set
PromotionLoading...
Coupon
Model：
DHT-100Dplus
DGC DHT-100Dplus Leeb Hardness TesterSPEC
DGC DHT-100Dplus Leeb Hardness TesterDetails
DGC DHT-100Dplus Leeb Hardness TesterPacking list
- SKU
- NB027633
- Measuring range
- 174~900HL
- Hardness system
- HL/HB/HV/HS/σb
- Tensile strength (steel)
- 370~2000（≈106N/mm）
- Optional impact device
- D、G、C、DL、DC、D+15

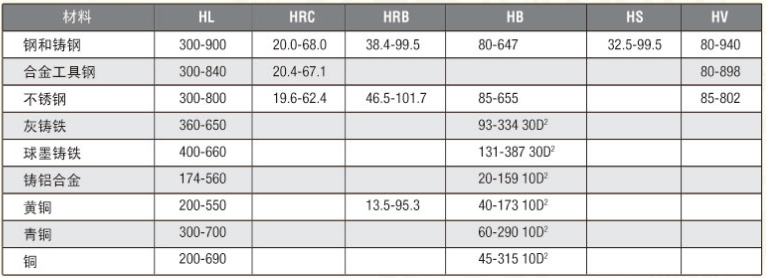

- Measurement material
- Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, ductile iron, cast aluminum alloy, brass, bronze, copper
- Indication repeability
- ±0.5％(HL=800)
- data storage
- 10,000 average
- Data Interface
- USB
- Minimum test Film thickness
- The thinnest 3mm or thicker (G-type Sensors require a Film thickness of 10mm)
- Weight requirements
- 5Kg or more (2~ 5kg needs stable support, < 2kg workpieces need to be coupled)
- Specimen Surface Roughness
- ≤Ra10
- Test point requirement 1
- Radius (concave/convex) minimum 30mm or more
- Test Point Requirements 2
- (< 30mm support ring required)
- Test Point Requirements 3
- 5mm or more from the edge of the workpiece
- Display
- 320X240 color screen display
- Power
- 2 AA batteries
- Allowable Operating Temperature
- -20~+50℃
- Dimensions
- 133*75*29mm
- Weight
- 0.26Kg (including battery)
DHT-100Dplus
Leeb Hardness Tester
features
·Color display 320×240
· Measuring range 174-900HL
· High precision and repeatability of indication ± 0.5% hardness value = 800HL
·Meet the hardness standard of ASTMA956
Standard configuration of D-type sensors, optional DC, DL, D+15, C and G-type sensors to meet different application scenarios
Based on Leeb hardness, it can be converted to Rockwell, Brinell, Vickers, Shaw and other hardness scales
·Full angle measurement
Can store 10,000 average values in 100 folders, data transmission without software, or output via Bluetooth printer
· Multi-language and multi-country hardness conversion standards
Save power, automatically shut down after 2 minutes without operation
Impact device D
FAQ
QAre all Leeb hardness testers available for inspection in the JB/T9378 standard?
A
Not necessarily, but this DHT-100Dplus Leeb hardness tester can be considered.
