Leeb Hardness Tester DHT-200D Deguang Electronics

SE
The measuring range of DHT-200D Leeb Hardness Tester is 174HL~ 900HL, optional Sensors D/DC/DL/D + 15, C and G, DHT-200D can store 10000 averages.
$1924.00/set
PromotionLoading...
Coupon
Certificate
Contact
Details SPEC Con CAT OI

DGC DHT-200Dplus Leeb Hardness TesterSPEC

DGC DHT-200Dplus Leeb Hardness TesterDetails

DGC DHT-200Dplus Leeb Hardness TesterPacking list

SKU
NB027634
Measuring range
174~900HL
Hardness system
HL/HB/HV/HS/σb
Tensile strength (steel)
370~2000（≈106N/mm）
Optional impact device
D、G、C、DL、DC、D+15
Measurement material
Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, ductile iron, cast aluminum alloy, brass, bronze, copper
Indication repeability
±0.5％(HL=800)
data storage
10,000 average
Data Interface
USB
Minimum test Film thickness
The thinnest 3mm or thicker (G-type Sensors require a Film thickness of 10mm)
Weight requirements
5Kg or more (2~ 5kg needs stable support, < 2kg workpieces need to be coupled)
Specimen Surface Roughness
≤Ra10
Test point requirement 1
Radius (concave/convex) minimum 30mm or more
Display
320X240 color screen display
Power
4 AA batteries or 4 1.25V rechargeable batteries
Allowable Operating Temperature
-20~+50℃
Dimensions
215*140*45mm
Weight
0.70Kg (including battery)
DHT-200Dplus
Leeb Hardness Tester

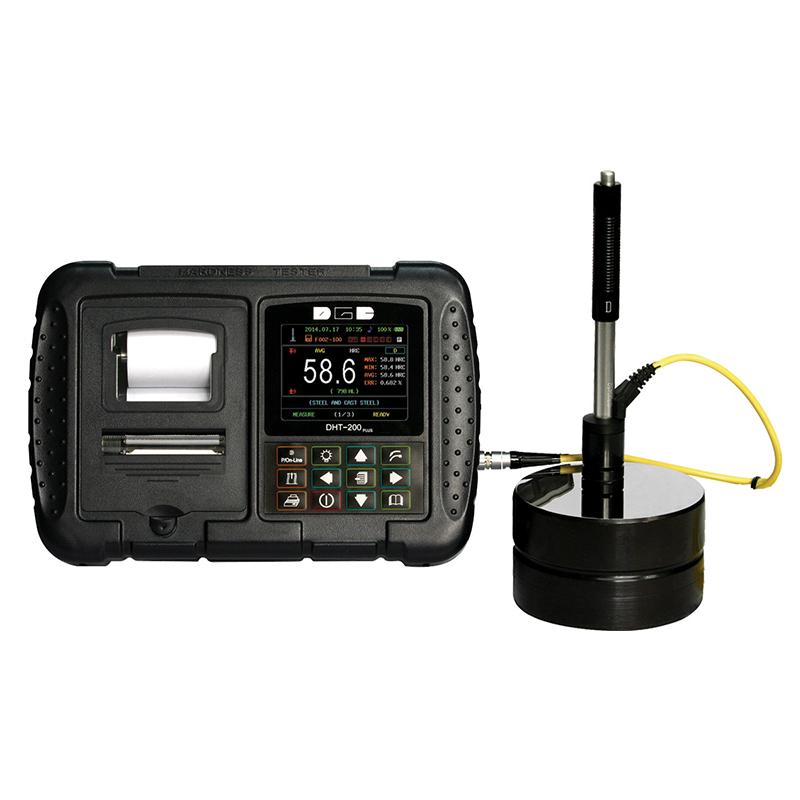

Leeb Hardness Tester DHT-200D Deguang Electronics Picture

features

·Color display 320×240

· Measuring range 174-900HL

· High precision and repeatability of indication ± 0.5% hardness value = 800HL

·Meet the hardness standard of ASTMA956

·Built-in printer

Standard configuration of D-type sensors, optional DC, DL, D+15, C and G-type sensors to meet different application scenarios

Based on Leeb hardness, it can be converted to Rockwell, Brinell, Vickers, Shaw and other hardness scales

·Full angle measurement

Can store 10,000 average values in 100 folders, data transmission without software, or output via Bluetooth printer

·Multiple voices

Impact device D

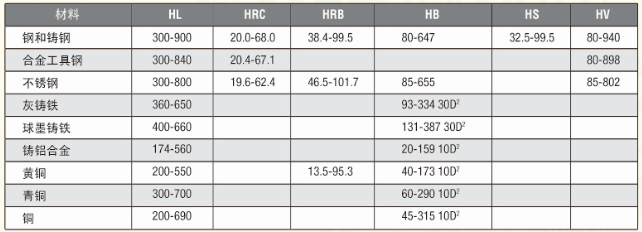

Deguang Electronics DHT-200Dplus Leeb Hardness Tester Details Figure 1

FAQ
QDo you have the Leeb hardness tester involved in JB/T9378?
A The DHT-200Dplus Leeb hardness tester will do
