Leeb Hardness Tester DHT-400Dplus

SE
The measuring range of DHT-400Dplus Leeb Hardness Tester of DHT-400Dplus Leeb Hardness Tester is 174HL~ 900HL, Hardness standard HL/HRB/HRC/HV/HB/HS and tensile strength. DHT-400Dplus can be connected to mobile phones or tablets through APP software. Data can be uploaded to the cloud to achieve the purpose of global sharing.
$1924.00/set
PromotionLoading...
Coupon
Certificate
Contact
Details SPEC Con CATCAT

DGC DHT-400Dplus Leeb Hardness TesterSPEC

DGC DHT-400Dplus Leeb Hardness TesterDetails

DGC DHT-400Dplus Leeb Hardness TesterPacking list

SKU
NB027636
Measuring range
174~900HL
Hardness system
HL/HRC/HRB/HV/HB/HS/σb
Optional impact device
D、G、C、DL、DC、D+15
Measurement material
Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, ductile iron, cast aluminum alloy, brass, bronze, copper
Error of indication
±0.5％(HL=800)
data storage
Unlimited memory depending on phone or pad
Data Interface
APP
Minimum test Film thickness
The thinnest 3mm or thicker (G-type Sensors require a Film thickness of 10mm)
Weight requirements
5Kg or more (2~ 5kg needs stable support, < 2kg workpieces need to be coupled)
Specimen Surface Roughness
≤Ra10
Test point requirement 1
Radius (concave/convex) minimum 30mm or more
Test Point Requirements 2
(< 30mm support ring required)
Test Point Requirements 3
5mm or more from the edge of the workpiece
Display
Phone or Pad
Power
3.7V rechargeable battery
Allowable Operating Temperature
-20~+50℃
Dimensions
158*41*26mm
Weight
0.12Kg (including battery)
Indication repeability
±0.5％(HL=800)
DHT-400Dplus
Leeb Hardness Tester

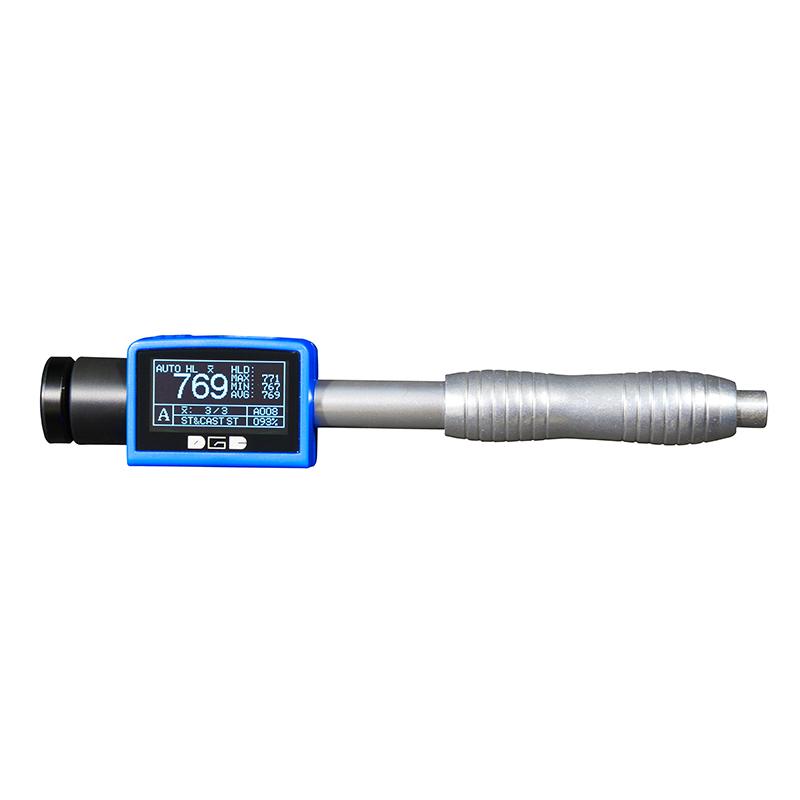

Leeb Hardness Tester DHT-400Dplus Picture

features

·OLED display 128*64

· Measuring range 174-900HL

· High precision and repeatability of indication ± 0.5% hardness value = 800HL

·Meet the hardness standard of ASTMA956

·Through the APP software to connect with the mobile phone or tablet computer, the data can be uploaded to the cloud to achieve the purpose of global sharing

Standard configuration of D-type sensors, optional DC, DL, D+15, C and G-type sensors to meet different application scenarios

Based on Leeb hardness, it can be converted to Rockwell, Brinell, Vickers, Shaw and other hardness scales

Full-angle measurement, automatic recognition of measurement direction and angle, no need to set

Storage depends on the storage space of the user's mobile phone and tablet

· Multi-language and multi-country hardness conversion standards

Impact device D

Deguang Electronics DHT-400Dplus Leeb Hardness Tester Details Figure 1

FAQ
QIs this the Leeb hardness tester mentioned in JB/T9378?
A OK
