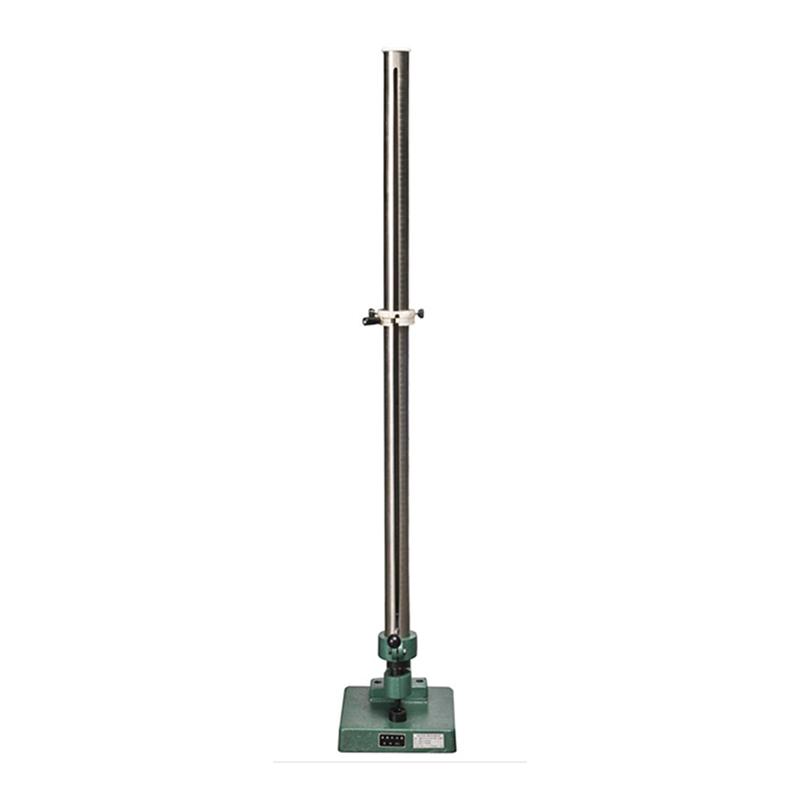

Xiangmin QCJ-50 QCJ Film Impact Tester 50cm

The impact height of Xiangmin QCJ-50 QCJ film Impact Tester is 50cm, the scale is 1cm, the drop weight mass is (1000 +/- 1) g, the impact head specification is φ 8mm, the impact depth is (2 +/- 0.1) mm, the diameter of the concave hole of the die base is φ 15mm, and the radius of curvature is R2.5~ 3mm, which meets the standard GB/T1732-93.
Model：
Certificate
Contact
Details SPEC CAT
Similar products

xiangmin QCJ-50 QCJ Film Impact TesterSPEC

xiangmin QCJ-50 QCJ Film Impact TesterDetails

xiangmin QCJ-50 QCJ Film Impact TesterPacking list

SKU
NB027646
Impact height
0~50cm
Graduation
1cm
Drop Weight Mass
1000g
Striker Diameter
Φ8mm
Impact depth
2mm
die base aperture
Φ15mm
radius of curvature
R2.5~3㎜
Standards
GB/T 1732-1993
QCJ-50
QCJ Film Impact Tester
Xiangmin QCJ-50 QCJ Film Impact Tester 50cm Picture

use

QCJ Paint Film Impact Tester is used for paint film coating test on metal substrates, designed according to GB/T1732-93. The maximum height at which a fixed weight is dropped on the test plate at a certain height on the coating layer is observed to be the maximum height that does not cause damage to the coating film, expressed in kg.cm units.

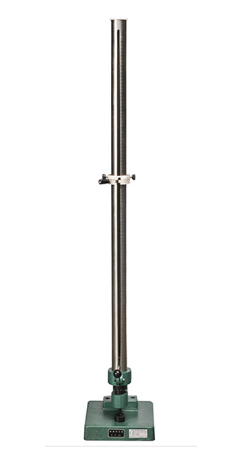

Xiangmin Instrument QCJ-50 QCJ Paint Film Impact Tester Details Figure 1

FAQ
QCan this QCJ Film Impact Tester be applied to JT/T 821.1?
A OK
