Xiangmin CNY-II Lasting Adhesive Tester six stations

SE
Xiangmin CNY-II Lasting Adhesive Tester weight 1000 +/- 10g, pressure roller load 2000 +/- 50g, rubber hardness 80 ° +/- 5 °, CNY-II is a six-station adhesive strength tester, also known as adhesive strength retention instrument, in line with GB/T 4851 standard.
Model：
Certificate
Contact
Details SPEC Con CAT
Similar products

xiangmin CNY-II Lasting Adhesive TesterSPEC

xiangmin CNY-II Lasting Adhesive TesterDetails

xiangmin CNY-II Lasting Adhesive TesterPacking list

SKU
NB027650
weight
1000 +/- 10g (including loading plate weight)
Test board
60*40*1.2mm
Roller load
2000±50g
Rubber hardness
80 ° +/- 5 ° (Shore hardness)
Timer
99 hours 59 minutes 59 seconds
station number
6 stations
net weight
12.5kg
power supply
220V 50Hz
dimensions
600*240*400mm
CNY-II
Lasting Adhesive Tester

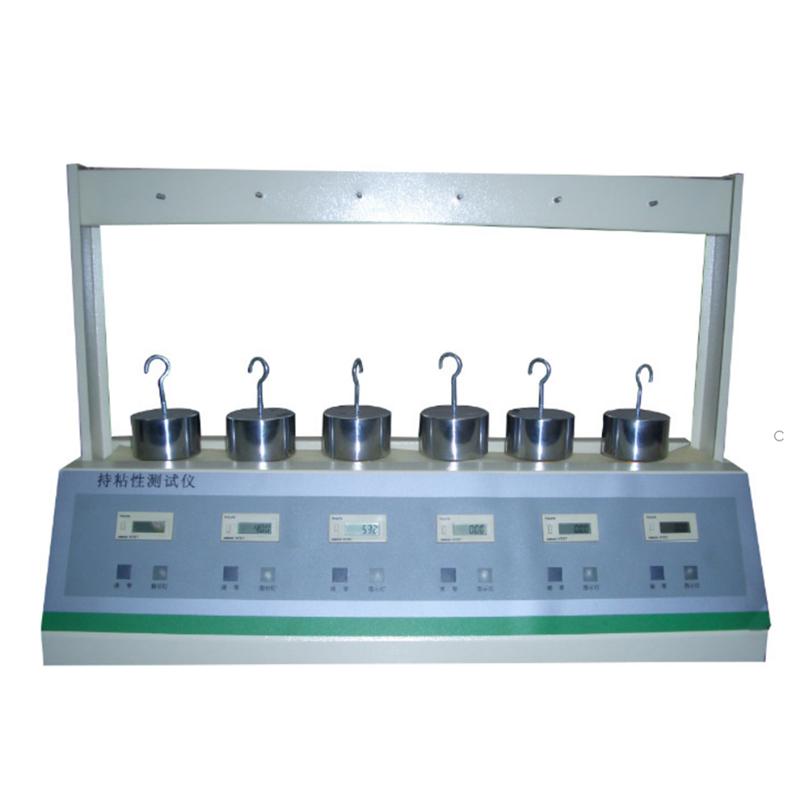

Xiangmin CNY-II Lasting Adhesive Tester six stations Picture

use

This product is suitable for testing the tackiness of pressure-sensitive adhesive tapes and other products. The ability of the adhesive tape to resist pull-off is measured by the displacement of the sample after a certain period of time or the time required for the sample to completely detach. Comply with standards: GB/T 4851.

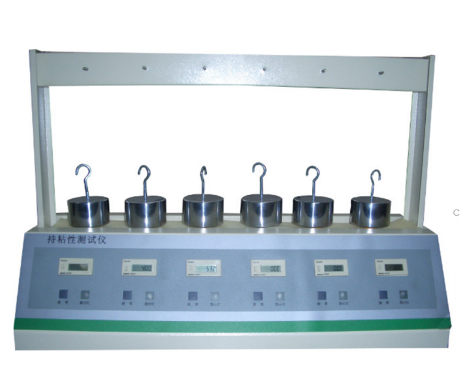

Details of Xiangmin Instruments CNY-II viscosity tester Figure 1

FAQ
QHow Hard is CNY-II Lasting Adhesive Tester Rubber?
A Hello, the hardness is 80 ° +/- 5 °.
QDo you have the Lasting Adhesive Tester required in the HG/T2406 standard?
A This CNY-II Lasting Adhesive Tester will do.
