XM-WD002 Double column servo Tensile Tester 2T

Xiangmin XM-WD002 microcomputer portal Tensile Tester capacity selection 100, 200, 500, 1000, 2000kg, force measurement accuracy indication within +/- 0.5%, Display mode LCD Chinese display, film touch keys, Unit switches Kg, lb, N, Data sampling Frequency 200times/sec, the maximum load of the testing machine resolution 1/+/- 25000 yards, internal and external without division, and the whole resolution unchanged.
Model：
Certificate
Contact
Details SPEC

xiangmin XM-WD002 Double column computer servo Tensile TesterSPEC

xiangmin XM-WD002 Double column computer servo Tensile TesterDetails

xiangmin XM-WD002 Double column computer servo Tensile TesterPacking list

SKU
NB027667
Capacity selection
100,200,500,1000,2000kg
Force Precision
<±0.5％
monitor
LCD Chinese display, film touch key
Force unit
Kg、lb、N
Frequency of data sampling
200times/sec
force resolution
The maximum load is 1/+/- 25,000 yards, the inside and outside are not divided, and the whole process resolution remains unchanged
Load Sensors
Basic Configuration: Pull and Pressure Sensors (Maximum Load)
Effective test width
380mm
Efficient stretching of space
1000mm
Test speed range
50~300mm/min
Displacement resolution
+/- 0.5% of the indication
breakpoint ratio setting
0~99%, users can set the appropriate break downtime according to different materials
Test bench Safety Devices
Up and down stroke limiting device
Overload protection
Exceeding the maximum load by 10%, the machine is automatically protected
Fixture configuration
A set of stretching fixtures
Dimension
1100*700*2000mm
Host Weight
About 200Kg
Power supply Voltage
220V/50Hz
XM-WD002
Double column computer servo Tensile Tester

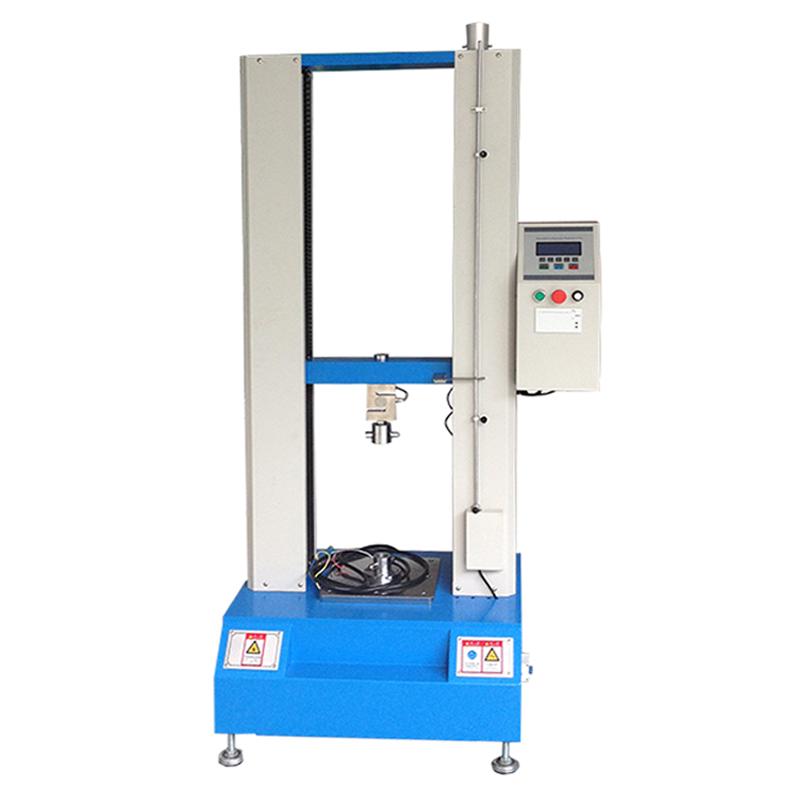

XM-WD002 Double column servo Tensile Tester 2T Picture

Introduction

This machine is a machine with a test base carefully designed by Xiangmin Instrument, which is not only small in size, wide in use, and does not occupy space, but also equipped with a convenient and detachable workbench base, which is very convenient to operate. Effectively change the shortcomings of traditional material testing machines such as bulky, complex operation and single performance. The appearance is treated with high-grade paint on the sealing plate, which is more beautiful and generous.

This testing machine is suitable for rubber, plastic, plastic film, and other flexible materials with large deformation. Tests such as tensile, tearing, adhesive strength, peel (90 degrees and 180 degrees) can be completed.

* AC frequency conversion motor drives precision T-screw drive, stable operation and low noise;

*Digital display force value, maximum force value, displacement, extension displacement, test speed stepless adjustable;

* Using high-precision encoder to measure displacement, the force resolution is as high as 1/25000, the test accuracy is high, the measurement range is wide, and the operation is convenient;

* It has the functions of automatic shutdown, over-current, over-Voltage and overload protection for test break-off;

*Equipped with a micro printer to print test data in real time.

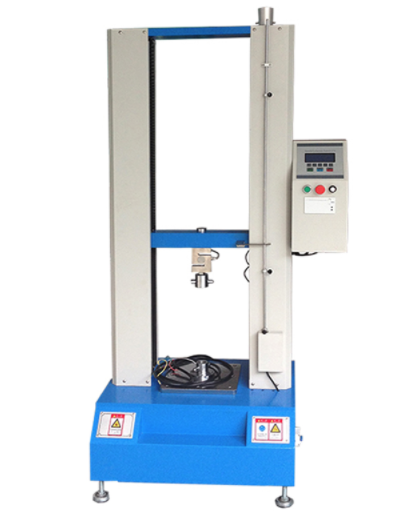

Xiangmin Instrument XM-WD002 Double-column Computerized Servo Tensile Testing Machine Details Figure 1

FAQ
QDoes this double column computer servo Tensile machine meet GB/T4074.10 standard?
A The double column computer servo Tensile machine is suitable for GB/T4074.10, please consult customer service for detailed application definition
