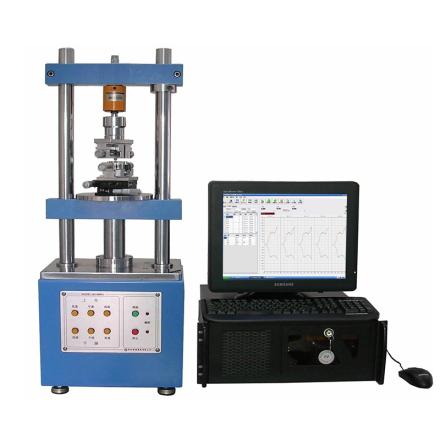

Xiangmin XM-1220S servo automatic vertical insertion force testing machine

Brand：xiangmin

Model：XM-1220S

Name：Servo automatic vertical insertion force testing machine

DetailsContact
Specifications
Maximum specified load 50, 20, 10, 5, 2Kg (choose 1)
Minimum analysis 0.01
Maximum measurement height 200mm
Minimum trim distance 0.01mm
Test speed range 0~200mm/min
X. Y-axis moving range 0-75mm
Machine column height 1000mm
Machine column spacing 240mm
Transmission mode Ball screw
Dimension 400*300*1000mm
Weight 75Kg (machine)
Power supply Voltage AC220V
Packing list
whole machine X1, operation manual X1, certificate of conformity X1, warranty card X1
After-sales instructions

Warranty days: 365 days
