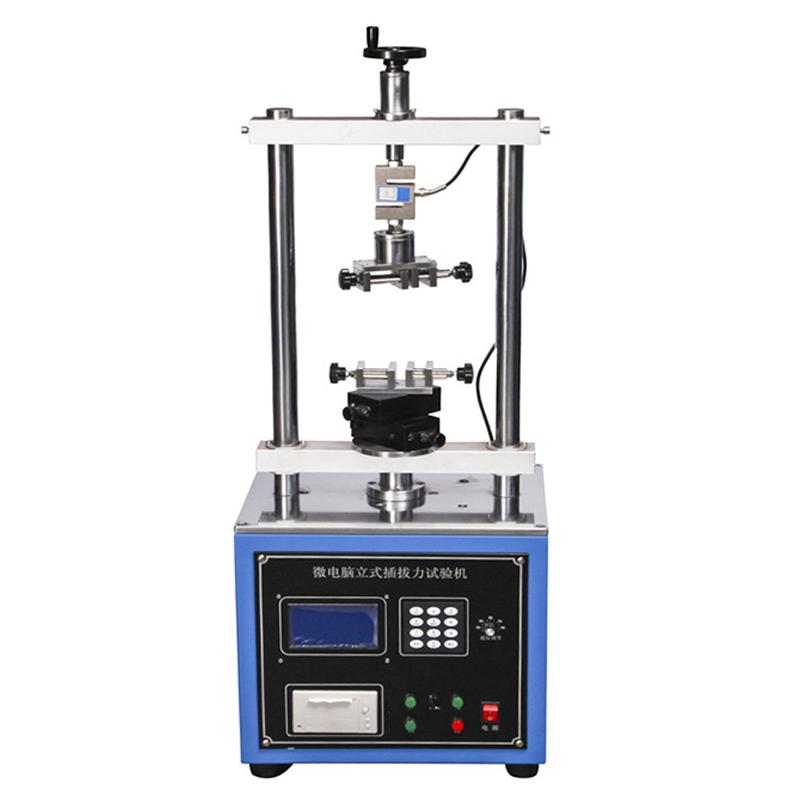

Xiangmin XM-P06 Microcomputer Vertical Insertion Force Testing Machine

XM-P06

Microcomputer vertical insertion force testing machine

Test items

★ Connector single-hole mating test　　　　　　　　

★ Connector full row mating test

★ Connector mating and unplugging life test　　　　　　　　

★ Connector single pin and plastic retention test

★ General compression, tensile failure test

Introduction to Plugging Force Test Software (with Force)

Introduction

A. This instrument adopts 240*128LED display, large screen size, beautiful appearance, equipped with a separate matrix keyboard and 15-bit AD capture card, which makes the input simpler and more convenient, and the force measurement accuracy is high. This table is easy to install and simple to wiring, which can greatly shorten the production cycle for customers. The plugging force Tester only needs to be equipped with this instrument to meet all the test requirements.

B. Instrument function

1. It has the function of automatic stop alarm for overload resetting to protect and expand the machine.

2. With the function of automatic saving, the test data can be automatically saved up to ten times, and the average value can be calculated, and it can be adjusted to view and print at any time.

3. Use the list to display the saved test data.

4. With the administrator password, the user can change the boot password, making the machine management more secure.

5. The software is used to compare the load value and automatically adjust the force value.

6. Use all Chinese prompts to set internal functions, easy to operate.

7. Plugging and unplugging count number range: 0~999999 The target number of times (0-9999999) can be set, and the machine will automatically stop when the number of measurements is equal to the target number of times.

8. Display: Large-screen LCD real-time display, the appearance is atmospheric and high-end.

9. Plugging force range: 0~50kg (others can be customized)

10. Minimum mating force resolution: 0.01kg

11 Test speed: 3~100(digital display)

12. Three types of force unit conversions: N, KGf, LB

13. Screen size: 144*104mm, number of images 240*128. Motherboard size: 110*95mm

Packing list：whole machine X1, operation manual X1, certificate of conformity X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
