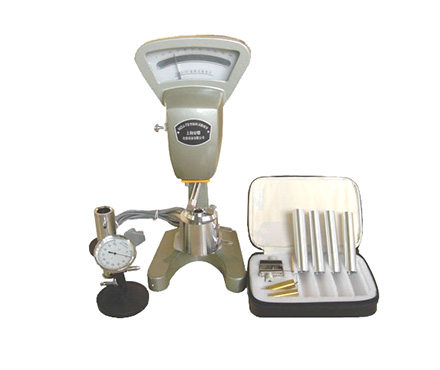

NDJ-79 pointer Rotational Viscometer YONGLIDA viscosity range is 2~ 1000000MPa · s
YONGLIDA pointer Rotational Viscometer NDJ-79 is a Rotational Viscometer for viscosity detection of paints, grease, coatings, etc. The measurement range of NDJ-79 is 2~ 1000000MPa · s, and the NDJ-79 pointer Rotational Viscometer measurement error is +/- 5%.
Model：
Similar products
-
NIRUN RPDV-1 Portable Digital Viscometer Viscosity Range 50~300,000 mPa · s$ 1224.00SE -
NIRUN DV-79 Digital Viscometer Viscosity Range 1-1 million cP$ 974.00SE -
Ander NDJ-79 Pointer Viscometer Viscosity Range 2~ 1000000mPa·s$ 568.00SE -
YUEPING NDJ-7 Rotational Viscometer 750 r/min Rotation speed Viscosity range 1~ 1 × 1000000mpa.s$ 453.00SE
YongLiDa NDJ-79 Rotational viscometerSPEC
YongLiDa NDJ-79 Rotational viscometerDetails
YongLiDa NDJ-79 Rotational viscometerPacking list
- SKU
- NB002767
- Display mode
- Pointer
- Measurement range
- 2~1000000mPa·s
- Rotor specification
- 1#、2#、3#、4#
- Rotor speed
- 7.5/75/750rpm
- Power
- ~220V±10%，50Hz
- Measurement Accuracy
- ±5％F.S
NDJ-79
Rotational viscometer

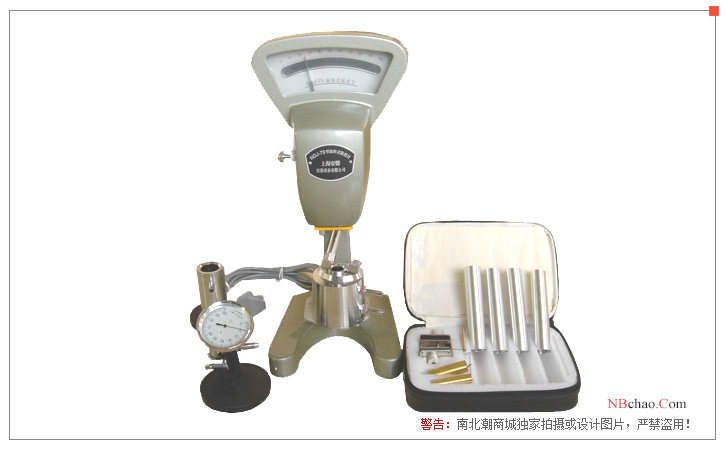

Introduction to NDJ-79 Rotational Viscometer
Yonglida pointer Rotational Viscometer NDJ-79 is a Rotational Viscometer that uses a pointer to indicate the measurement reading. It comes with 4 types of spindles. NDJ-79 is mainly used to measure the viscous resistance of liquids and the absolute viscosity of liquids. It is equipped with a variety of rotors and reducers. The measurement error is ±5%.
NDJ-79 Rotational Viscometer application
Applicable to the viscosity value of Newtonian liquids such as petroleum, grease, paint, ink, coating, and coating products.
NDJ-79 Rotational Viscometer display diagram
FAQ
QEpoxy resin Coating viscosity measurement with what material Viscometer is better?
A
Measurement Coating viscosity generally can choose viscosity cup or Viscometer, viscosity cup mainly measures relative viscosity, Viscometer measures dynamic viscosity. In general, in addition to thixotropic Coating, Coatings under 150s can be coated with 4 cups, and Coatings under 20 can be coated with 1 cup. In addition, Yehui uses ISO flow cup to measure Newton-type liquid Coating viscosity, Stormer Viscometer to measure architectural coatings viscosity, and for all brush coatings, rotational viscometer or Cone and Plate Viscometer measurement can be used.
QNDJ79 Viscometer can measure how many rotors there are?
A
It is usually equipped with three different rotors.
QDoes the YONGLIDA rotational viscometer meet the SN/T2903 standard?
A
The rotational viscometer of the NDJ-79 can be referred to
Standard
- 1JJG 1002-2005《Rotational Viscometers》
- 2GB/T 22427.7-2008《Starch - Determination of viscosity》
- 3GB/T 12004.4-2003《Polyvinyl chloride paste--Determination of apparent viscosity by the Brookfield test method》
- 4SN/T 2903-2011《Dangerous goods Viscosity of flammable liquids Capillary method, rotational viscometer method, force ball Viscometer method》
- 5HG/T 3323-1982《Rubber viscosity determination method (rotational viscometer method)》
- 6SY/T 0522-2008《Determination of wax evolution point of crude oil rotational viscometer method》
- 7GB/T 15357-2014《Surface active agents and detergents―Determination of viscosity and flow properties of liquid products using a rotational viscometer》
- 8SY/T 5377-2007《Electric rotational viscometer》
- 9SY/T 0520-2008《Viscosity determination of crude petroleum.Equilibrium method by rotational viscometer》
- 10GB/T 265-1988《Petroleum products--Determination of kinematic viscosity and calculation of dynamic viscosity》
