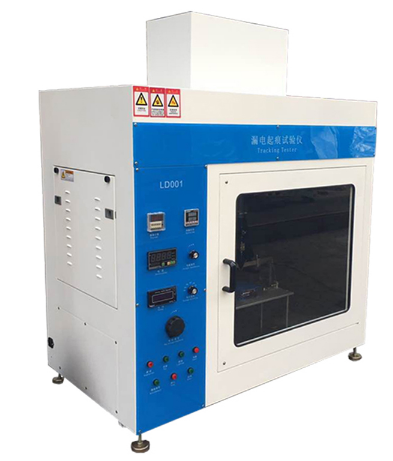

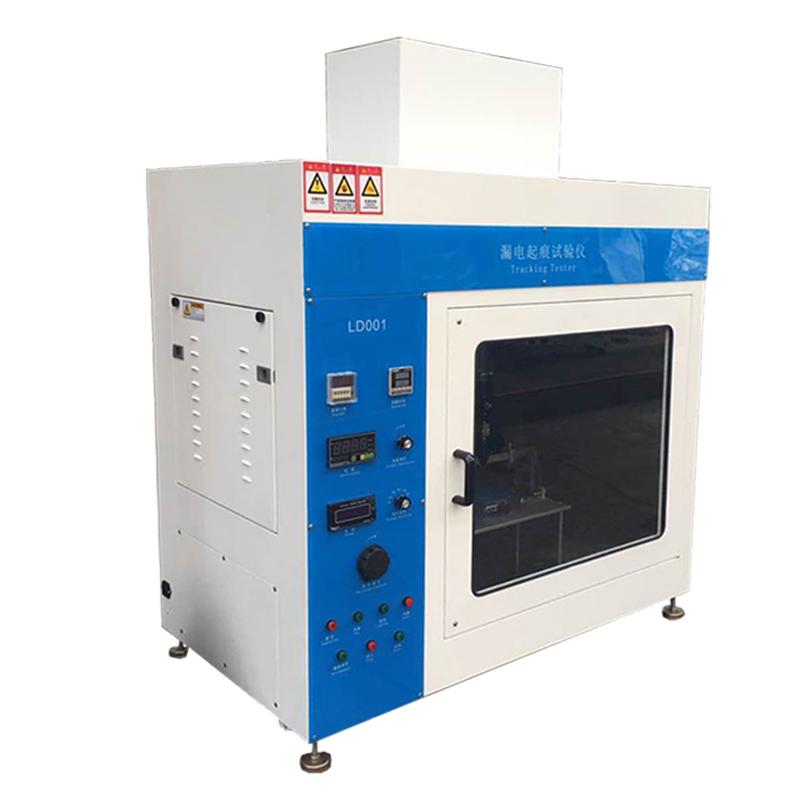

Xiangmin XM-LQ001 Leakage Trace Tester
XM-LQ001
xiangmin XM-LQ001 Leakage marking TesterSPEC
xiangmin XM-LQ001 Leakage marking TesterDetails
xiangmin XM-LQ001 Leakage marking TesterPacking list
- SKU
- NB027677
- Electrode material
- Test electrode - platinum, electrode Connector - silver (imported)
- Electrode size
- (2Mm +/- 0.1mm) × (5mm +/- 0.1mm) × (40mm +/- 5mm), platinum electrode 12mm, 30 ° +/- 2 ° inclined surface;
- Electrode distance
- 4.0Mm +/- 0.01mm, included angle 60 ° +/- 5 °
- Electrode pressure
- 1.00N±0.001N
- test solution resistance
- Liquid A 0.1% NH 4Cl, 3.95 +/- 0.05 Ω m, Liquid B 1.98 +/- 0.05 Ω m
- Droplet Volume
- 20 drops 0.380g~ 0.480g, 50 drops 0.997g~ 1.147g (slightly adjustable)
- Droplet height
- 35Mm +/- 5mm (adjustable)
- Drop time
- 30s +/- 0.1s (better than standard) (digital display, can be preset and adjusted), 50 drops time 24.5min +/- 2min
- Drop count
- 1~ 9999 (digital display, preset)
- test wind speed
- 0.2M/s (new standard)
- test Voltage
- 100V~ 1000V (25V indexing, adjustable)
- Power Supply Voltage drop
- 8% at 1.0 A +/- 0.1A
- Trace judgment
- 0.50A±10% ， 2.00s±10%
- Dimension
- width 600 * depth 500 * height 1000mm, exhaust aperture ø100mm
- Test Power Supply
- 220V 0.6kVA 50-60Hz
Introduction
Application: Tracking Tester is a simulation test item specified in IEC60112: 2003 "Determination Method of Tracking Resistance Index and Comparative Tracking Index of Solid Insulating Materials", UL746A, ASTM D 3638-92, DIN 53480 and other standards.
The tracking test is to apply a certain Voltage and drop a polluted liquid (0.1%NH4 CL) with a specified droplet volume (0.1%NH4 CL) at a fixed height (35mm) at a fixed height (30s) on the surface of a solid insulating material between a platinum electrode of a specified size (2mm×5mm) to evaluate the resistance of the surface of the solid insulating material under the combined action of electric field and polluted medium, and to determine its relative tracking index (CT1) and tracking resistance index (PT1).
The tracking index Tester is suitable for the research, production and quality inspection departments of lighting equipment, low-Voltage electrical appliances, household appliances, machine tool appliances, motors, power tools, electronic instruments, electrical instruments, and information technology equipment, as well as insulating materials, engineering plastics, electrical connectors, and accessories industries.
