Brand：xiangmin
Model：XM-HV001

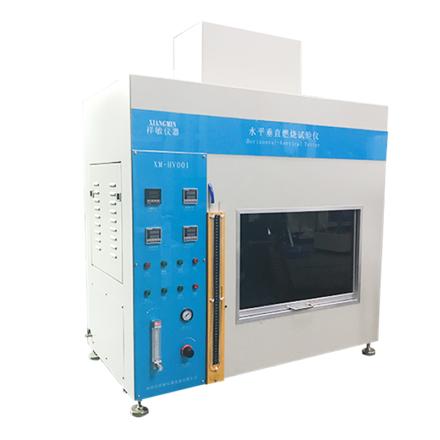

Name：Vertical and horizontal combustion testing machine
Specifications
| Lamps | Bunsen lamp tube diameter 9.5mm +/- 0.5mm Length from the main air inlet or inlet is about 100mm |
| Bunsen lamp nozzle shape | Round lamp port and stainless steel fishtail lamp port (replaceable) |
| Combustion angle | 0 °, 20 °, 45 ° can be quickly positioned. The maximum travel is about 150mm. |
| Flame time | 1S~ 999.9s (digital display can be preset) |
| holding time | 1S~ 999.9s (digital display cannot be preset) |
| The number of times the repeability is applied | 1~ 9999 times (digital display can be preset) |
| Test space | 0.5M3 background black |
| Power supply Voltage | 0.5kvA220v50-60Hz |
Packing list
whole machine X1, operation manual X1, certificate of conformity X1, warranty card X1
After-sales instructions
Warranty days: 365 days
