Xiangmin XM-R45 45 degree combustion testing machine

The spread Timer Range of Xiangmin XM-R45 combustion testing machine 0-99.99 s, resolution 0.01s, ignition time 1s or arbitrary setting, igniter model conforms to ASTMD1230, instrument size 540 × 410 × 300mm, sample size 152.4 × 50.8mm, ignition time 1 +/- 0.05s.
Model：
Certificate
Contact
Details SPEC CAT

xiangmin XM-R45 45 degree combustion testing machineSPEC

xiangmin XM-R45 45 degree combustion testing machineDetails

xiangmin XM-R45 45 degree combustion testing machinePacking list

SKU
NB027680
creep Timer Range
0-99.99s
resolution
0.01s
Ignition time
1S or any setting
Igniter model
Compliant with ASTMD1230
instrument size
540×410×300mm
Specimen size
152.4×50.8mm
Ignition time
1±0.05s
Sample holder inner frame size
149×38mm
Fire nozzle distance from specimen surface
8mm
flame height
15.875mm
XM-R45
45 degree combustion testing machine

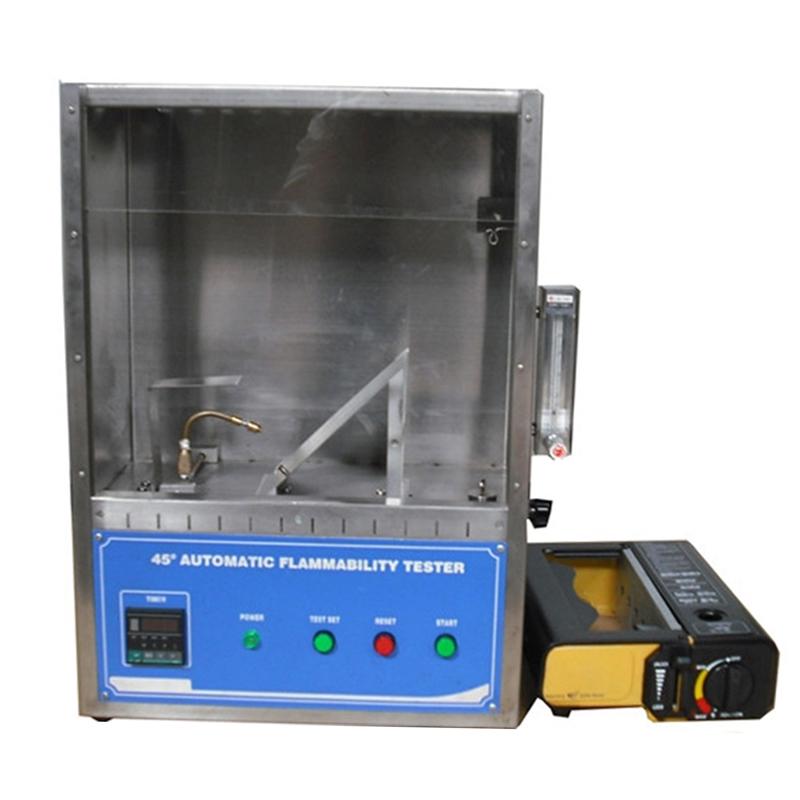

Xiangmin XM-R45 45 degree combustion testing machine Picture

Introduction

45 degree flammability Tester, suitable for testing the combustion performance of textiles.

Features

The 45 degree flammability Tester meets ASTM D1230, FTMS191-5908, CRF16-1610, CALIF TB117, NFPA702 and other standards

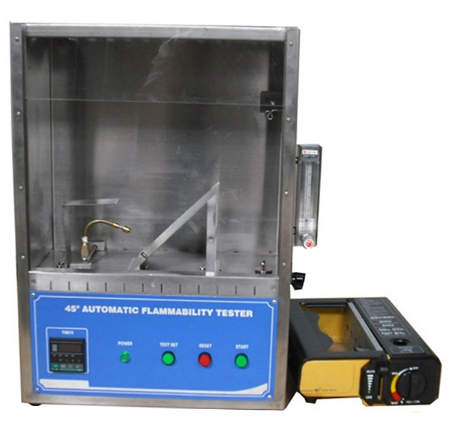

Xiangmin Instrument XM-R45 45 Degree Combustion Tester Details Figure 1
