xiangmin XM-GK001 Battery simulation high altitude low Voltage testing machine Specifications
Search
Brand：xiangmin
Model：XM-GK001

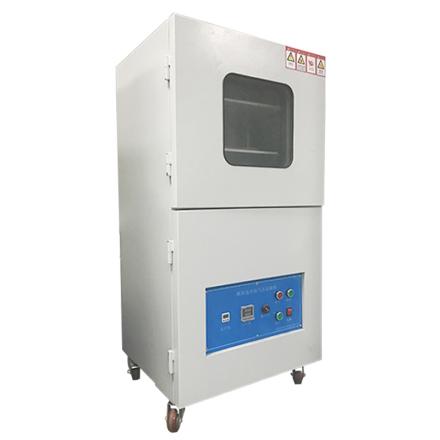

Name：Battery simulation high altitude low Voltage testing machine
Specifications
| Studio Specifications | 300mm×300mm×300mm（W×H×D） |
| Dimension | Subject to the actual product |
| Product Structure | Upper/Lower type, upper product room, lower electric control panel, built-in vacuum pump |
| Glass window size | 100*100mm |
| Liner material | 304 #stainless steel sand board |
| Enclosure Material | Cold plate, thickness 1.5mm, powder paint treatment |
| Sealing material | High temperature resistant silicone |
| Timer Timing range | 1 second to 99 hours (you can choose to set hours, minutes, seconds) |
| Vacuum range | 0 to -0.1Mpa, digital pressure gauge |
| pressure fluctuation | < 2Kpa (vacuum degree ≤ 133Pa) |
| Pressure Accuracy | 0.1Kpa |
| Precision | 1Kpa |
| Control mode | Manual start, stop, pressure relief |
| Power | 550W/220V |
Packing list
whole machine X1, operation manual X1, certificate of conformity X1, warranty card X1
After-sales instructions
Warranty days: 365 days
