Xiangmin XM-DY1500 single wing Dropping Tester

The drop height of Xiangmin XM-DY1500 single-wing Dropping Tester is 400-1500mm, the maximum measurement weight is about 60Kg, the maximum size of the test piece is about 800 x 800 x 800mm, the impact panel size is 1000x1500mm, the bracket arm size is 160 * 180 * 8mm, and the drop error is +/- 5mm.
Model：
Certificate
Contact
Details SPEC CAT
Similar products

xiangmin XM-DY1500 Single Dropping TesterSPEC

xiangmin XM-DY1500 Single Dropping TesterDetails

xiangmin XM-DY1500 Single Dropping TesterPacking list

SKU
NB027690
Power Supply
AC380V 50Hz
Power
1.85KWA
drop height
400~1500mm
test load
About 60Kg
Maximum size of specimen
800*800*800mm
Baseplate size
1000*1500mm
Arm size
160*180*8mm
Drop height error
±5mm
Dimensions
≈1500*1000*2350mm
Weight
About 400kg
XM-DY1500
Single Dropping Tester

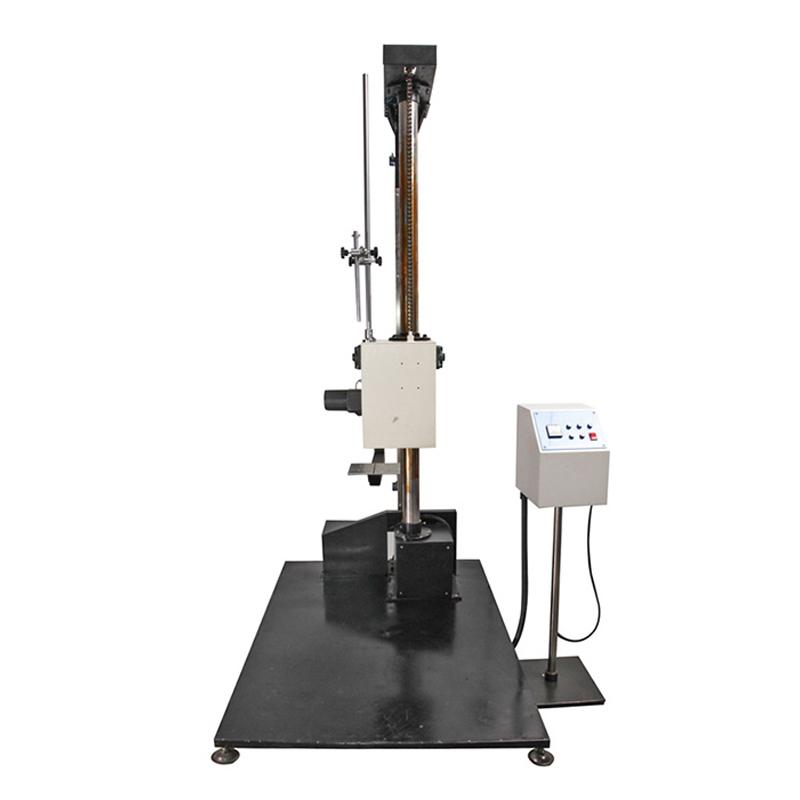

Xiangmin XM-DY1500 single wing Dropping Tester Picture

overview

The drop test machine adopts the brake motor through the chain drive to drive the drop arm to reach and drop, and the drop height adopts a digital height ruler, the drop height is accurate, the display is intuitive, the operation is simple, the drop arm is stable and the fall angle error is small. This machine is mainly used in the laboratory to simulate the degree of transportation of packaging parts in the actual transportation process, so as to evaluate the rationality of packaging design.

standard

This instrument meets the requirements of GB/T4857.5 and ISO2248 standards.

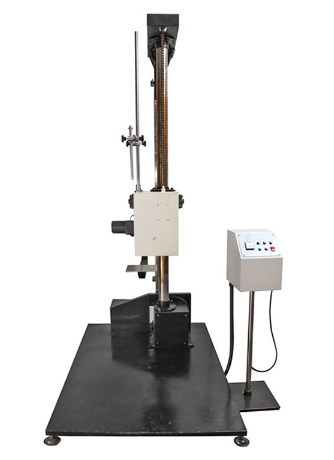

Xiangmin Instrument XM-DY1500 Monowing Drop Tester Details Figure 1
