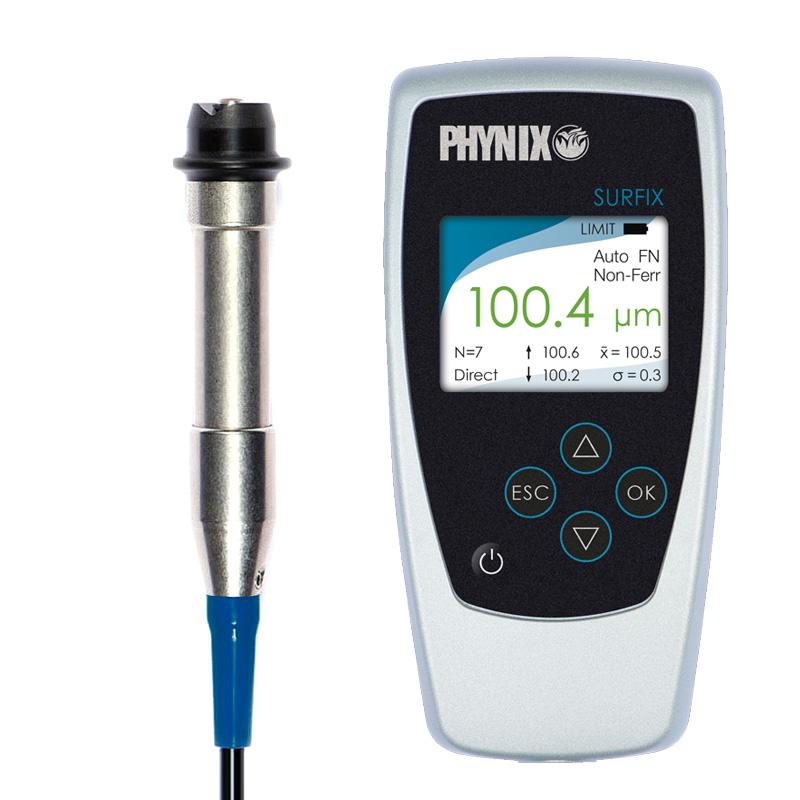

PHYNIX Surfix SX-F1.5 magnetic Film Thickness Gauge 1500μm

Surfix SX-F1.5

Coating Thickness Gauge

Magnetic Induction, measurement range 0~1500μm, error range +/- 1μm/2%, resolution 0.1μm, supports multiple operating languages, supports USB data transfer, can store up to 2,000 measurement values.

Introduction

Coating thickness measurement: graphical display, PC connection, easy operation and proven PHYNIX probe

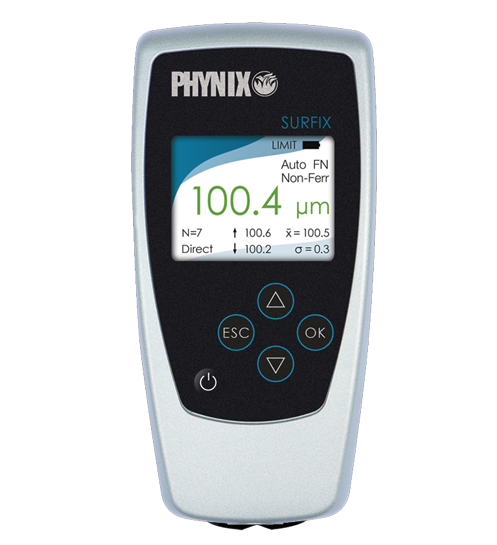

The outstanding feature of the PHYNIX coating Thickness Gauge is the brightly colored graphic display with improved text display and support for many different operating languages. The standard now includes English, German, French, Italian, Spanish, Turkish, Czech and Chinese. The internal memory has been significantly enlarged compared to the Surfix series and can now store up to 2,000 measured values. Simply connect to your computer via USB 2.0. PHYNIX.connect is a data transfer program for all modern Windows systems that facilitates the transfer of measured values ​​to Excel.

Available in two models: Surfix® SX can be connected to all probes in the PHYNIX probe program. This ensures maximum flexibility, enabling the device to fulfill many different measurement tasks. Surfix® EX devices with fixed standard probes are suitable for applications with clearly defined measurement tasks. It is easy to use and more cost-effective than Surfix® SX with high-quality plug-in connections.

Application areas

Surfix®easy X is suitable for the following areas:

• In the electroplating industry

• in the painting industry

• in the automotive industry

• in the chemical industry

• in aerospace engineering

• in shipbuilding

• In research laboratories and universities

• in the workshop

• consultants and appraisers

Product advantages

• Innovative and user-friendly measurement technology

• High-resolution color graphics display

• USB interface

• Automatic identification of base materials

• Data memory stores up to 2,000 measured values

• Online statistics

• Intuitive menu guidance

• Measurements on hot surfaces up to 150°C or 300°C (optional)

• Manufacturer's test certificate

• 2 years warranty

Parameter comparison of PHYNIX coating Thickness Gauge series

	Surfix Pro X	Surfix SX	Surfix EX	Pocket-Surfix X	Surfix easy X HR
model	Split, replaceable probe	Split, replaceable probe	External fixed probe	Built-in probe	Built-in or external, fixed probe
Measuring range iron base	30mm	30mm	1.5mm	1.5mm	3mm
Measuring range non-iron based	3mm	3mm	1.5mm	1.5mm	3mm
Accuracy	±(0.7μm+1% of reading)	±(0.7μm+1% of reading)	±(1μm+1% of reading)	±(1μm+1% of reading)	2μm or 2% reading
Hard metal probe	●	●	●	●	●
Factory calibration	●	●	●	●	●
Calibration method	Two-diaphragm calibration, single-diaphragm calibration, zero calibration, CTC	Single diaphragm calibration, zero calibration	Single diaphragm calibration, zero calibration	Single diaphragm calibration, zero calibration	zero calibration
Diaphragm calibration	●	●	●	●	-
Calibration storage	●	-	-	-	-
statistics	●	●	●	●	●
zero compensation	●	●	●	●	-
Boundary value	●	●	●	●	-
data storage	Up to 100,000 readings	Up to 2000 readings	Up to 2000 readings	Up to 80 readings	-
data transmission	Bluetooth/USB	USB	USB	USB	-
menu	●	●	●	●	-
Backlight display	●	●	●	●	●
continuous measurement	●	-	-	-	-
Solvent resistant probe	●	●	●	●	●
maximum surface temperature	300℃	300℃	300℃	60℃	60℃
Optional probe	●	●	-	-	-
Includes PC software	●	●	●	●	-

Packing list：Main unit, F1.5 probe, Rubber protective cover, 2 calibrated films, Zero standard sheet~ iron, 2 AA batteries, PHYNIX computer connection, user manual, manufacturer certificate, Encasement box

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
