LANDTEK CM8855 coating Film Thickness Gauge Integrated F magnetic Induction /NF eddy current statistical function

CM8855

Coating Thickness Gauge

1250μm integrated probe, dual thickness measurement principle; RS232 interface; automatic memory calibrating and identification substrate; statistical function, single and continuous Measurement mode; optional USB and Bluetooth data output.

Introduction

Lantek CM8855 Coating Thickness Gauge is a statistical portable Thickness Gauge in the Lantex Coating Thickness Gauge series. It has an integrated sensor structure design and has two sensors, F and NF, which can automatically identify different measurements during measurement. Substrate, easy and convenient to operate. CM8855 Coating Film Thickness Gauge can be used to accurately measure the film thickness of coating, plating, etc., and control product quality. CM8855 Coating Film Thickness Gauge is small in size, suitable for engineering sites, laboratories and other occasions as a non-destructive testing instrument for thickness measurement.

Applications

Coating Film Thickness Gauge CM-8855 uses a magnetic sensor to measure non-ferromagnetic coatings and coatings on ferromagnetic metal substrates such as steel and iron, such as: paint, powder, plastic, rubber, synthetic materials, phosphating, Chromium, zinc, lead, aluminum, tin, cadmium, porcelain, enamel, oxide layer, etc. Use eddy current sensors to measure enamel, rubber, paint, plastic layers, etc. on copper, aluminum, zinc, tin, etc. substrates. Widely used in manufacturing, metal processing, chemical industry, commodity inspection and other testing fields.

Features

CM-8855 Coating Thickness Gauge can measure the thickness of the non-magnetic coating on the magnetic object and the non-conductive coating on the non-magnetic metal substrate.

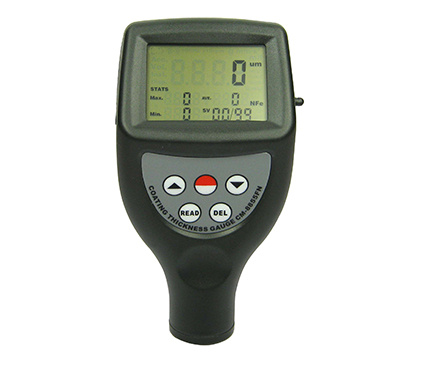

Pictures

Features and advantages

* CM8855 Coating Film Thickness Gauge can store 99 sets of measurement data; realize the statistical function of the instrument by measuring the average value, maximum value and minimum value.

* Iron-based and non-ferrous-based dual-purpose coating Thickness Gauge.

* CM8855 Coating Film Thickness Gauge has two optional measurement methods: single and continuous.

* Metric/Imperial unit conversion.

* The eddy current sensor Thickness Gauge has functions such as manual shutdown, automatic shutdown and underVoltage prompt.

* Automatically memorize the calibration value and automatically identify the material of the measured substrate.

* There is a buzzer sound during operation, but the buzzer does not sound during continuous measurement.

* The coating Thickness Gauge adopts USB data line output, RS-232C data connection line and software to communicate with PC.

* Optional Bluetooth™ data output option is also available.

* The integral instrument is suitable for one-handed operation, with a "big probe", and a large contact surface for better stability, and the results are accurate and repeatable.

LANDTEK Coating Thickness Gauge Selection List

Packing list：Host x1, reference block (iron/aluminum) CTG-BS each x1, calibrated diaphragm CTG-CFx4, portable box x1, manual x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
