Specifications
| Acceleration Measurement range | 0.1~ 200M/s ² peak |
| Measurement range | 0.01~ 200mm/s True RMS |
| Measurement range | 0.001~ 2.0mm peak-peak |
| Acceleration Frequency range | 10Hz~ 1kHz 10Hz~ 10kHz (x10 mode for bearing inspection) |
| Frequency range | 10Hz~1k Hz |
| Frequency range | 10Hz~1KHz |
| Precision | +/- (5% n + 2) words |
| output | 2.0 v AC load resistance 10 k |
| MAX Maximum Hold | Automatic shutdown |
| Battery Voltage indication | Low Voltage prompt |
| Data output | USB, RS-232, Bluetooth |
| Operating Conditions | Temperature: 0~50 ℃ Humidity: < 90% RH |
| Power Supply | 4 AA batteries |
| Dimension | 148*72*34 mm |
| Weight | 140G (without battery) |
Packing list

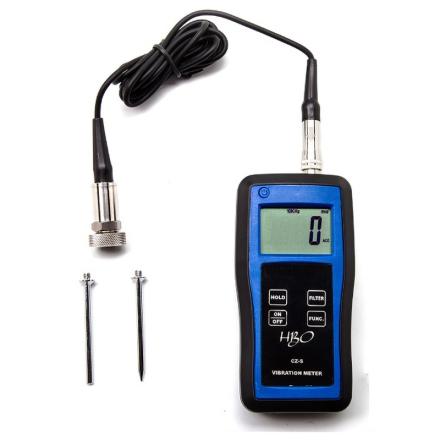

Host X1, magnetic suction seat X1, Piezoelectric Sensors X1, probe (cone) X1, probe (ball) X1, portable case, instruction manual
After-sales instructions
Warranty days: 365 days
1. Warranty: one year
2. Within one month after purchase, if there is a product quality problem under normal use and no damage to the appearance, the product of the same model and specification can be replaced with the invoice, valid warranty card and complete packaging;
3. There is no warranty for man-made failure or customer disassembly;
4. Products beyond the warranty period can be repaired by the original factory.
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/27881/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
