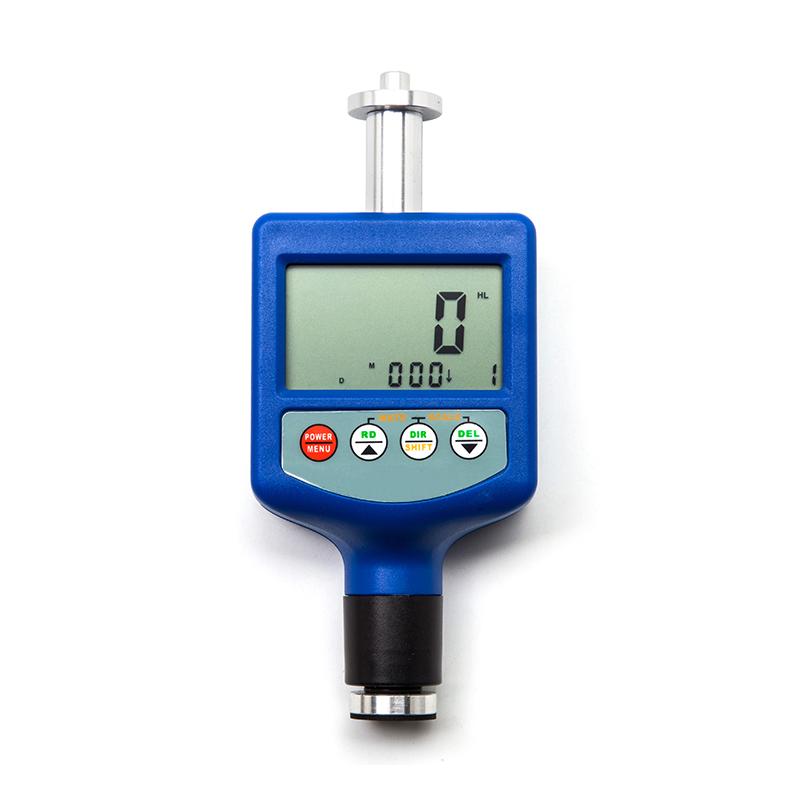

Hypertherm LSY-N Leeb Hardness Tester handheld Richter hardness meter

LSY-N

Leeb Hardness Tester

Measurement range 200~900HLD, error of indication +/- 0.8% (HL = 800), indication Repeatability +/- 0.8%, Hardness standard HL/HRC/HRB/HB/HV/HSD Impact device Type D

Applications

Applied to the failure analysis of installed mechanical or permanent assembly parts, mold cavities, heavy workpieces, pressure vessels, steam turbine generator sets and their equipment.

For workpieces with very narrow test space, bearings and other parts, it is required to have formal original records of test results, material classification of metal material warehouses, and rapid inspection of multiple measurement parts of large workpieces.

Overview

* Small size, easy to use in narrow space.

* The test material and test direction can be selected through the keyboard.

* It can realize mutual conversion between six kinds of hardness (HL, HRC, HRB, HB, HV, HS).

* The test results can be displayed repeatedly, and gross errors can be deleted.

* Can store 50 sets of measured values and test status, including material, test direction, hardness and other information.

* Allows user calibration to make measurements more accurate.

* With RS232 interface, it is convenient for computer communication.

* With backlight display, it is convenient to use in a dark environment.

* Manual and automatic shutdown function.

* Low battery Voltage indication.

* Use "USB data line output" and "RS-232 data line output" to communicate with PC.

* Provide Bluetooth data output option

Optional

1. Impact body

2. Support ring set

3. RS232 or USB cable and software

4. Bluetooth communication and software

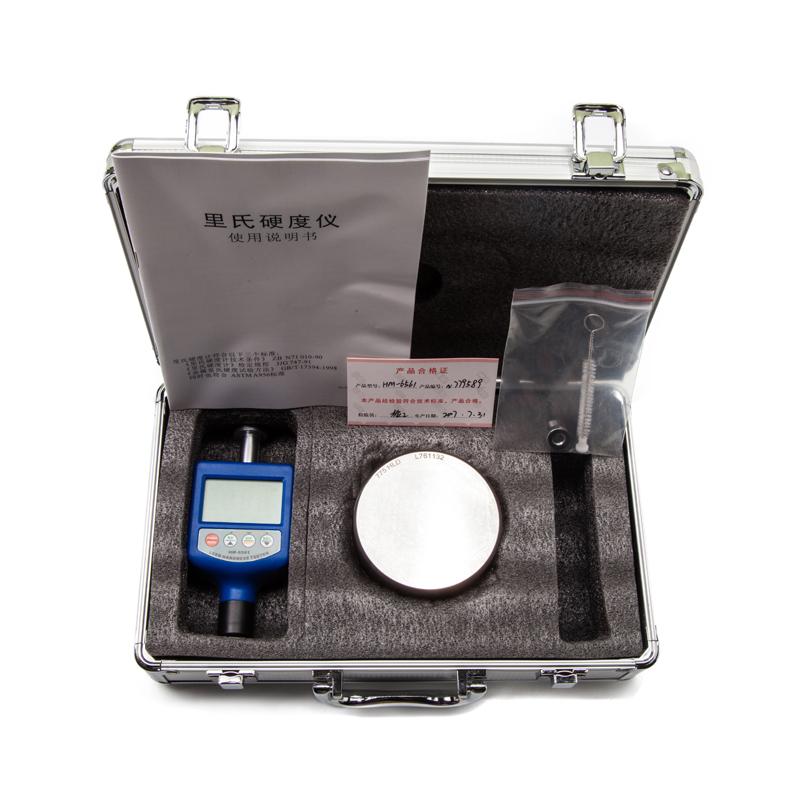

Packing list：Host x1, Standard Hardness Block x1, Portable Box x1, Manual x1, Small Support Ring x1, Cleaning Brush x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
