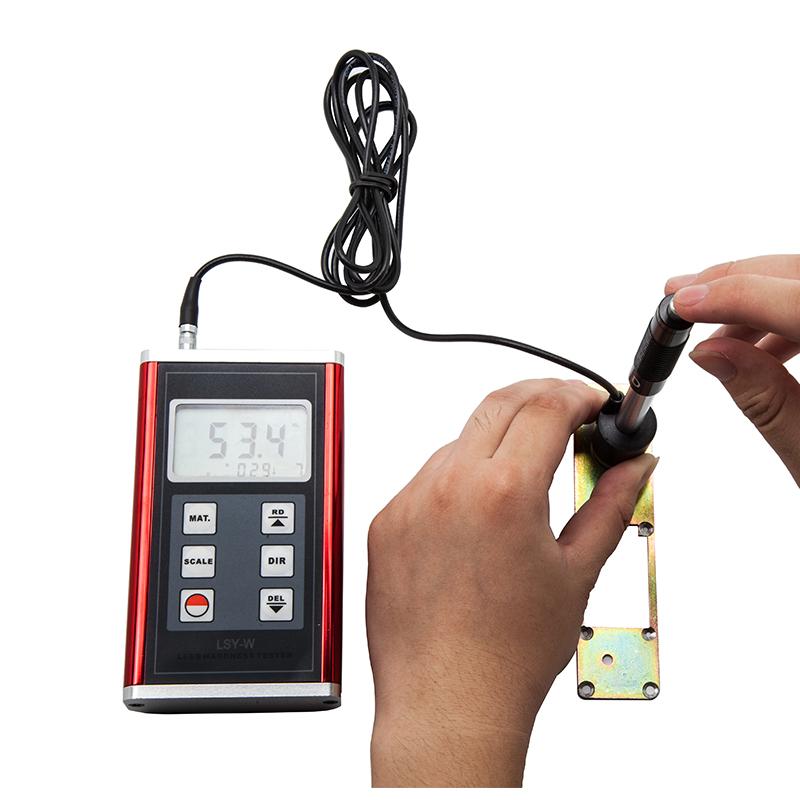

Hypertherm LSY-W Leeb Hardness Tester

LSY-W

Leeb Hardness Tester

Aluminum alloy shell material, LCD display screen, 9 kinds of measurement materials, steel and cast steel, metallurgical tool steel, forged steel, gray cast iron, ductile cast iron, cast aluminum alloy, pure copper, copper zinc alloy (brass), copper tin alloy (bronze), Measurement range 170~960HLD, 20~68HRC, 19~ 651HB, 80~967HV, 30~100HS, 13~ 100HRB.

Applications

It is applied to the failure analysis of installed mechanical or permanent assembly parts, mold cavities, heavy workpieces, pressure vessels, steam turbine generator sets and their equipment, workpieces with very small test space, bearings and other parts, and the test results are required to be accurate. Formal original records, material classification of metal material warehouses, rapid inspection of multiple measurement parts of large workpieces.

Overview

* Small size, easy to use in narrow space.

* The test material and test direction can be selected through the keyboard.

* It can realize mutual conversion between six kinds of hardness (HL, HRC, HRB, HB, HV, HS).

* The test results can be displayed repeatedly, and gross errors can be deleted.

* Can store 50 sets of measured values and test status, including material, test direction, hardness and other information.

* Allows user calibration to make measurements more accurate.

* With RS232 interface, it is convenient for computer communication.

* Manual and automatic shutdown function.

* Low battery Voltage indication.

* Use "USB data line output" and "RS-232 data line output" to communicate with PC

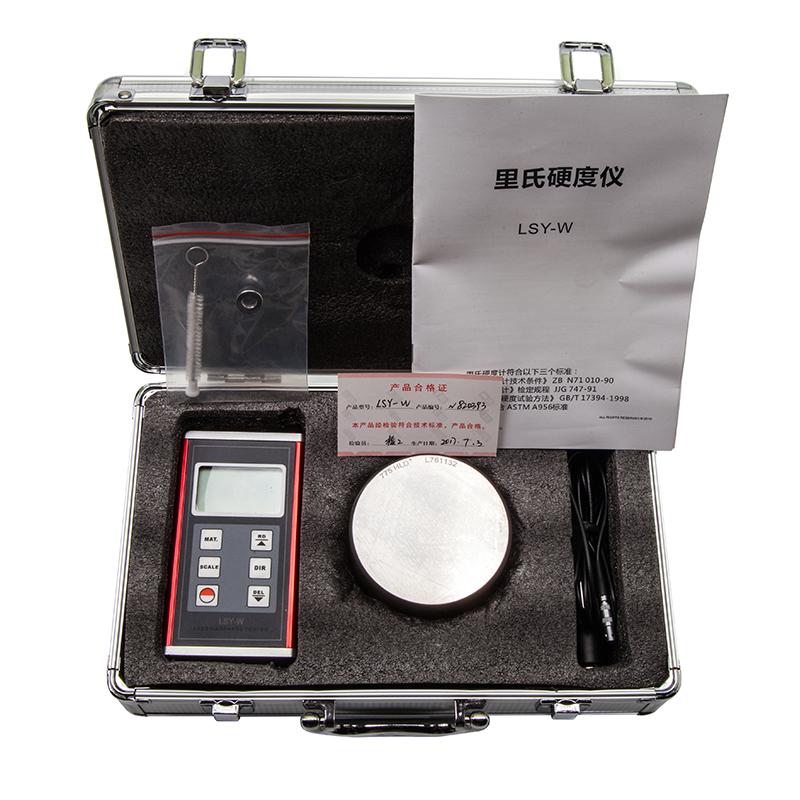

Packing list：Host x1, Standard Hardness Block x1, Measurement Sensors x1, Portable Box x1, Manual x1, Small Support Ring x1, Cleaning Brush x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
