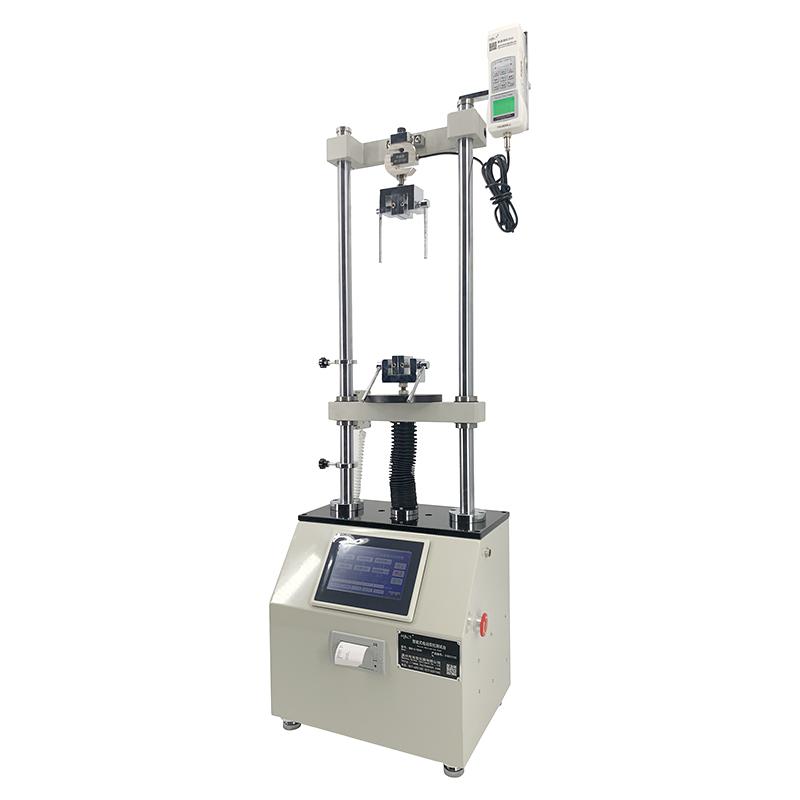

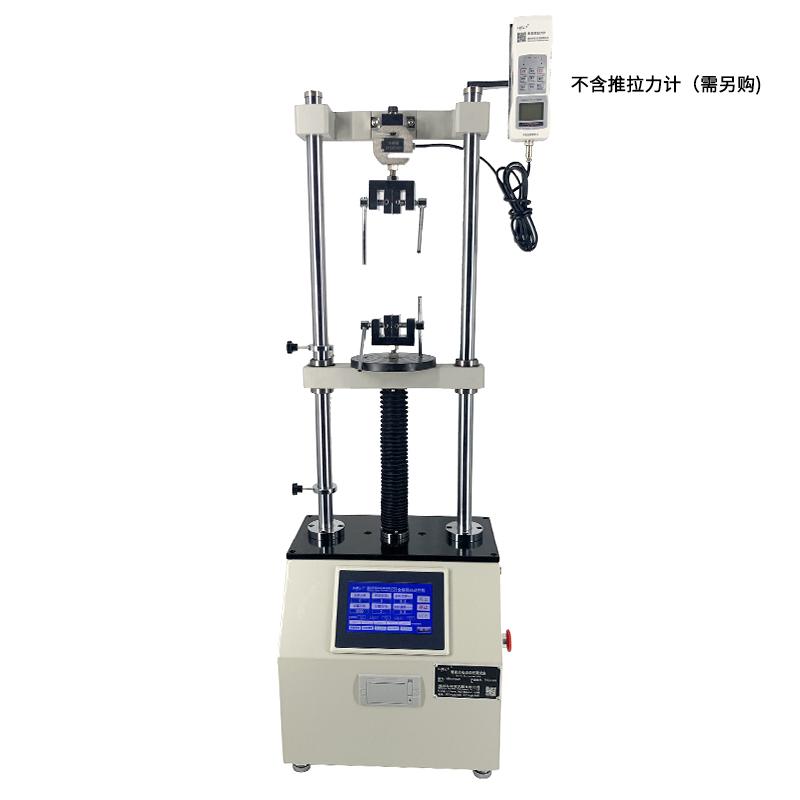

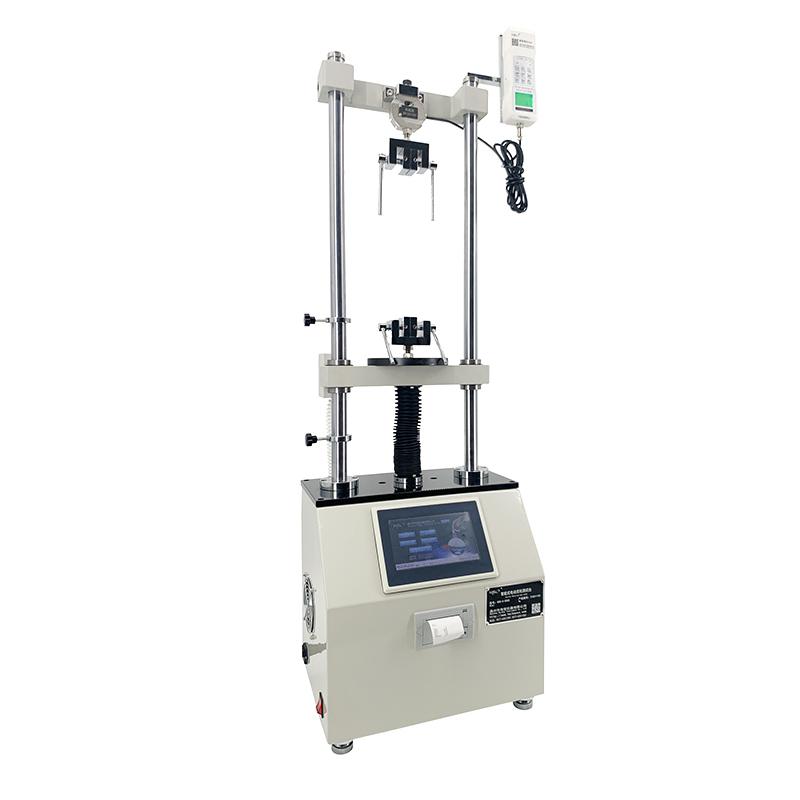

Hypertherm HDD-2000S intelligent double column vertical machine

HDD-2000S

Intelligent double column vertical machine

Maximum load 2000N/200Kg/440lb, effective stroke 225mm, displacement Graduation 0.1mm, moving displacement error 0.1mm, speed 10-800mm/min, speed Graduation 0.3mm/min

function

This series of Tensile Testing Machine is a high-precision load test bench specially designed for HF series and HG series. This product adopts a high-torque stepper motor, a high-precision encoder, a large touch screen, and a built-in double-column structure, which has the advantages of good stability, wide range of application, beautiful appearance, easy to use, etc., and has a series of functions such as controllable speed and displacement, manual (joging), automatic, automatic control of the number of movements, and delay in place. It is widely used in rubber and plastics, light industry and textiles, building doors and windows, composite materials, wires and cables, auto parts, power machinery, scientific research institutions and other industries to push and pull load, plugging force, damage test and other testing fields.

peculiarity

• High precision, high resolution, high stability

• Adopt high torque stepper motor, high precision encoder

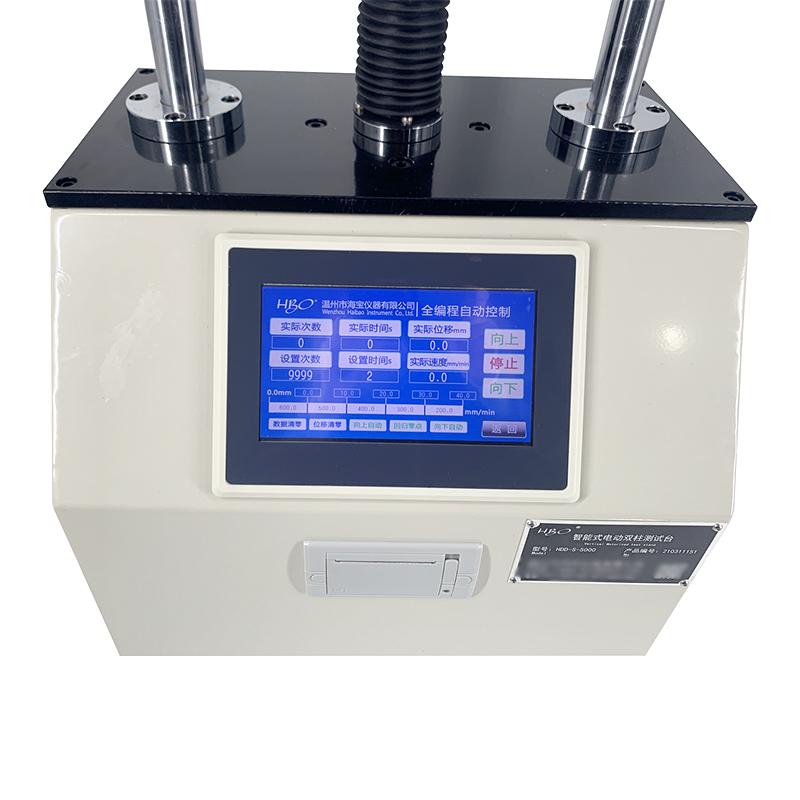

• Large 7-inch touch LCD screen, friendly human-computer interaction interface, simple and easy to use

• The operating speed can be set and the setting is wide, which can be adapted to a variety of different test speed requirements (speed controllable)

• The running distance can be set, and after running to the set position, it can be delayed to hold, reverse to run, and stop immediately (displacement controllable)

• Real-time display of displacement, running speed, and direction of movement (positive + upward, negative downward —)

• Provide automatic counting, automatic timing, expansion rate test, automatic programming, and a variety of test modes

• In the fully automatic programming mode, 5 different test displacements and 5 different test speeds can be customized, which is convenient and fast to complete the test

• Force holding function: to the specified position or set the force value, the holding time can be set freely (with optional push-pull force meter)

• Set force value round-trip motion function: Set force value round-trip movement, force value setting, holding time, and number of movements can be set freely (push-pull force gauge required)

• Pull-and-break stop function: stop immediately after the force applied to the measured object disappears (with optional push-pull force meter)

Product structure diagram

Packing list：power cord x1, product manual x1, certificate of conformity warranty card x1, fixture x2

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
