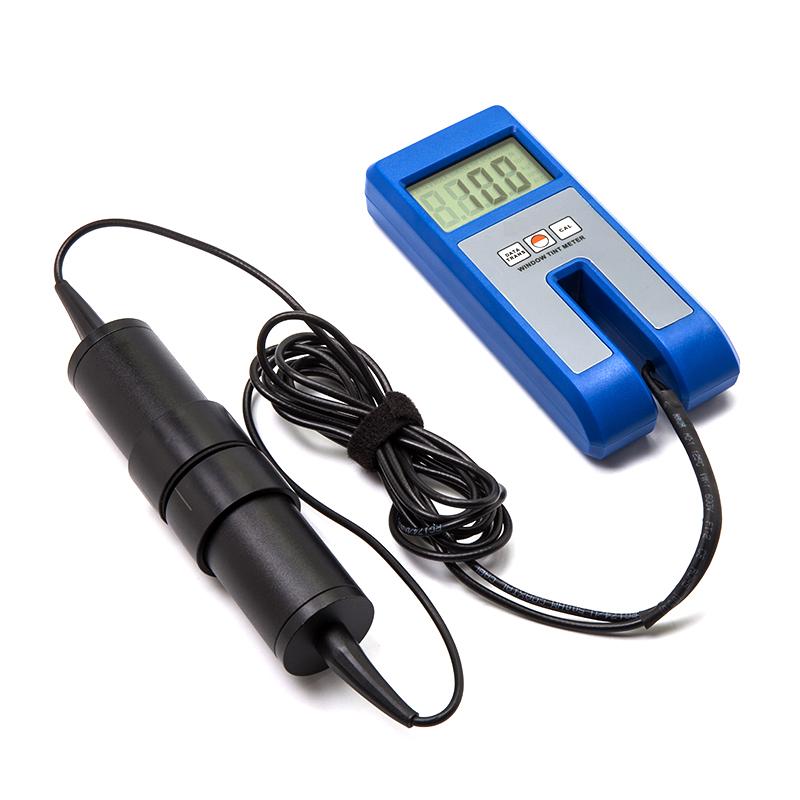

Hypertherm TGL-18 Transmittance meter light transmitance analyzer

Test range 0~100%, resolution 0.1, Measurement accuracy +/- 2%, the thickness of the measured object is less than 18mm, Light source LED Light source, Measurement mode Single, continuous measurement

$366.00/set

PromotionLoading...

Coupon

Model：

TGL-18

Certificate

HBO

Manufacturer authorization

Contact

Details SPEC Con

HBO TGL-18 Transmittance meterSPEC

HBO TGL-18 Transmittance meterDetails

HBO TGL-18 Transmittance meterPacking list

SKU: NB027908

display: 4-Position 10mm LCD

Measurement range: 0~100%

resolution: 0.1

Measurement Accuracy: ±2%

Thickness of the measured object: <18mm

Light source: LED Light source

Measurement mode: Single, continuous measurement

operating conditions: Temperature: 0~50 ℃, Humidity: < 90%

Power Supply: 4 AA batteries

Host size: 126*65*27mm

Probe size: 125 x 38 x 38 mm

Weight: 100G (without battery)

TGL-18

Transmittance meter

Test range 0~100%, resolution 0.1, Measurement accuracy +/- 2%, the thickness of the measured object is less than 18mm, Light source LED Light source, Measurement mode Single, continuous measurement

It is suitable for the test of light transmittance and haze of all transparent and translucent parallel plane samples (such as automobile manufacturing, aerospace, glass products and other industries, plastic plates, sheets, etc.), liquid samples (water, beverages, etc.) Turbidity or clarity determination.

* This instrument is a battery-powered portable measuring instrument that uses the principle of the luminous flux passing through a transparent or translucent body and its incident luminous flux.

* Technical design conforms to GB 2410-80, ASTM D1033-61, JIS k7105-81 and other standards.

* Digital display, wide measuring range and high resolution.

* One-key calibration value, easy to use.

* Single, continuous measurement mode.

* Sturdy and delicate structure, easy to carry.

* Use "USB data line output" and "RS-232 data line output" to communicate with PC.

* Provide Bluetooth data output option.
