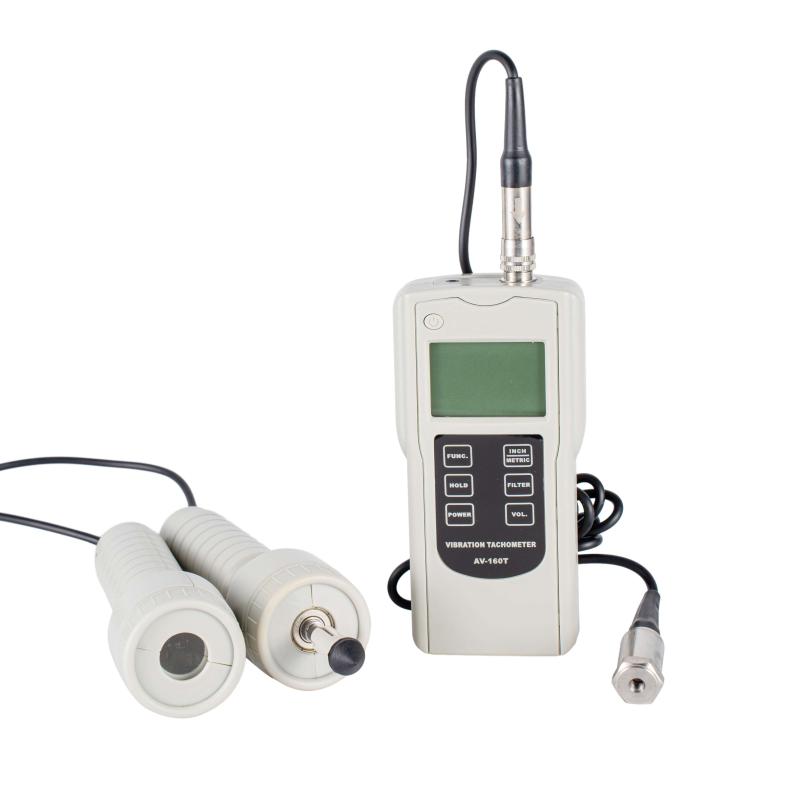

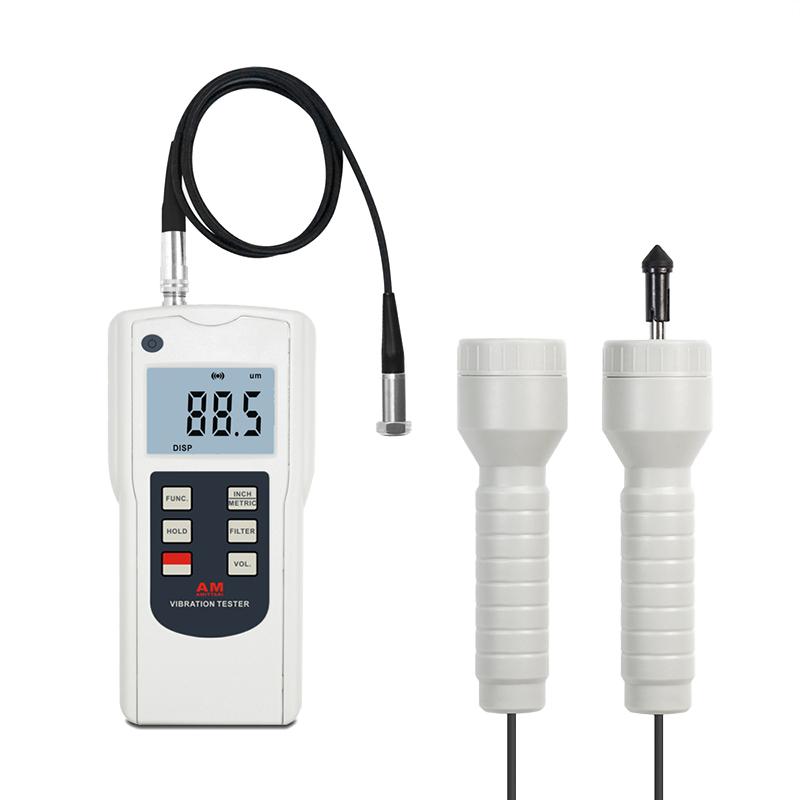

AMITTARI AV-160T Rotation speed meter, vibratIon Meter, bearing condition measurement
SE
AV-160T
AMITTARI AV-160T Rotation speed gaugeSPEC
AMITTARI AV-160T Rotation speed gaugeDetails

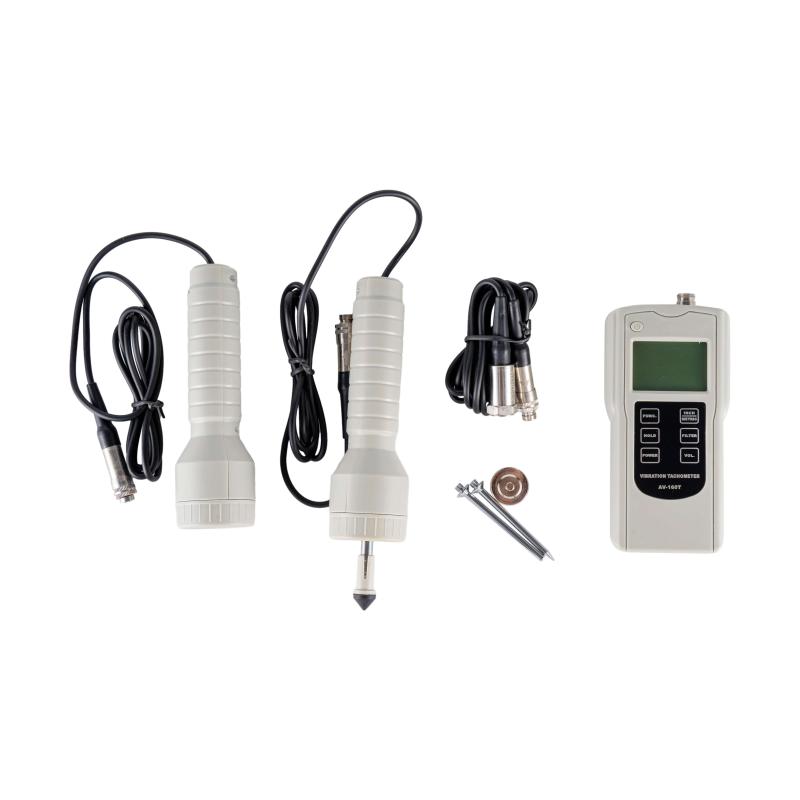

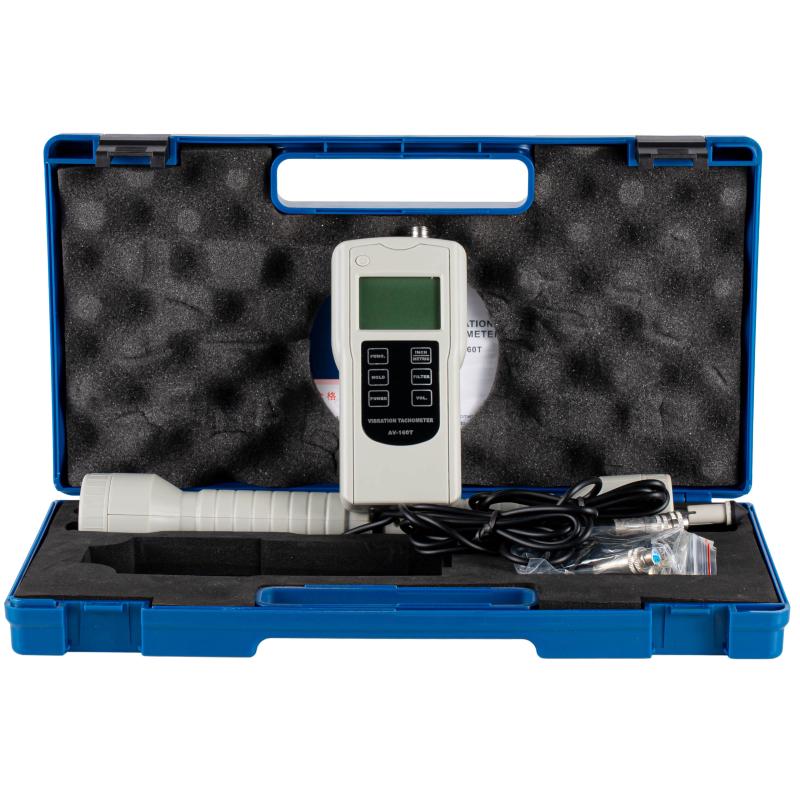

AMITTARI AV-160T Rotation speed gaugePacking list
- SKU
- NB027915

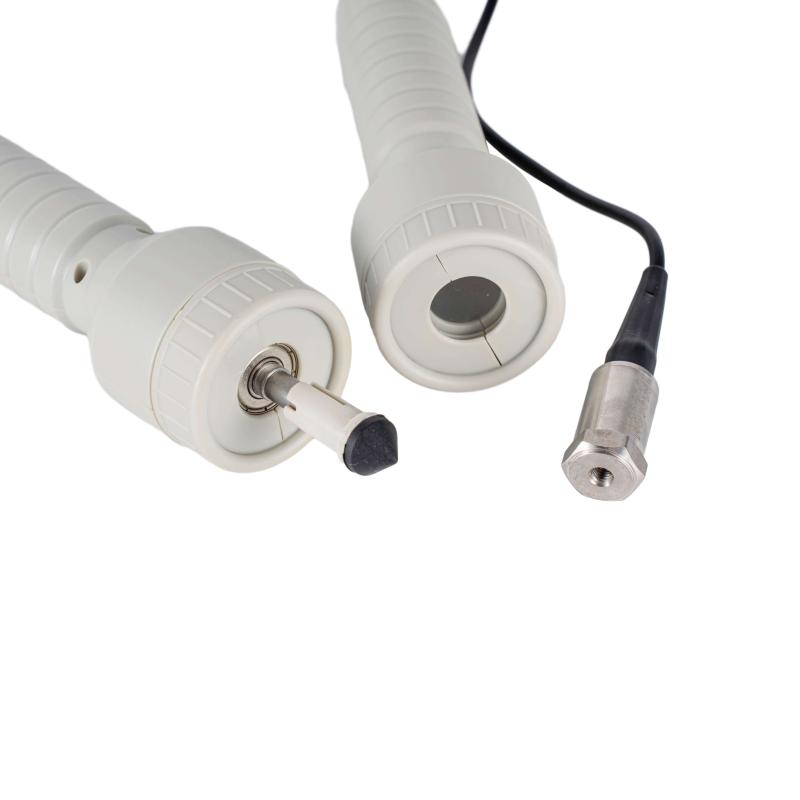

- Sensors Type
- Piezoelectric Vibration Sensors
- Accuracy
- ± (5% n + 2) words
- Displacement Measurement range
- 0.001~ 4.000 mm peak-peak
- Displacement frequency range
- 10Hz~1KHz
- Speed range
- 60~99,990RPM (r/min) (If "10" appears on the monitor, multiply the reading by 10.)
- Frequency range
- 1~ 20,000Hz (If "10" appears on the display, multiply the reading by 10.)
- operating conditions
- Temperature: 0~50 ℃
- output
- 2.0V AC load resistance 10k
- Power

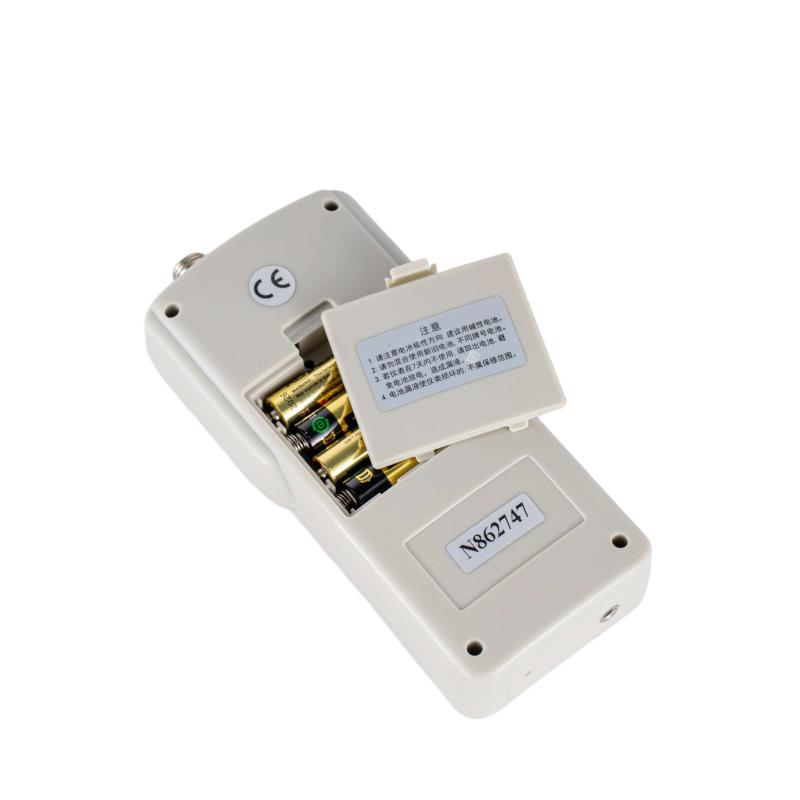

- 4X1.5vAAA No. 7 battery
- Dimensions
- 140*70*30mm
- Weight
- 130G (without battery)
- Acceleration Measurement range
- 0.1~ 400.0M/s ² peak
- Speed Measurement range
- 0.1~ 400.0 mm/s true RMS
- Acceleration frequency range
- 10Hz~10KHz
- Speed frequency range
- 10Hz~1KHz
VibratIon Meters are used in periodic motion measurements to detect imbalances and deviations in moving machinery. It is specially designed for on-site measurement of various mechanical vibrations to provide data for quality control, running time and prior equipment maintenance. Select a high-performance accelerometer to achieve accurate and reproducible measurements. One meter with multiple functions, one meter can be used not only as a photoelectric tachometer for non-contact measurement, but also as a contact tachometer for non-contact measurement. Can measure speed RPM and frequency Hz.
Features
* Conforms to international standard ISO2954 for periodic motion measurement to detect imbalance and deviation of moving machinery.
* Designed for on-site measurement of various mechanical vibrations to provide data for quality control, running time and prior equipment maintenance.
* Wide frequency range, in the acceleration mode, the frequency can reach 10-10KHz.
* Use piezoelectric acceleration sensor to convert into vibration signal.
* With bearing condition measurement function.
* With AC signal output, it is convenient for auscultation and recording.
* Optional earphones can be used as a stethoscope.
* Use USB data line output to communicate with PC.
* Provide Bluetooth data output option.
